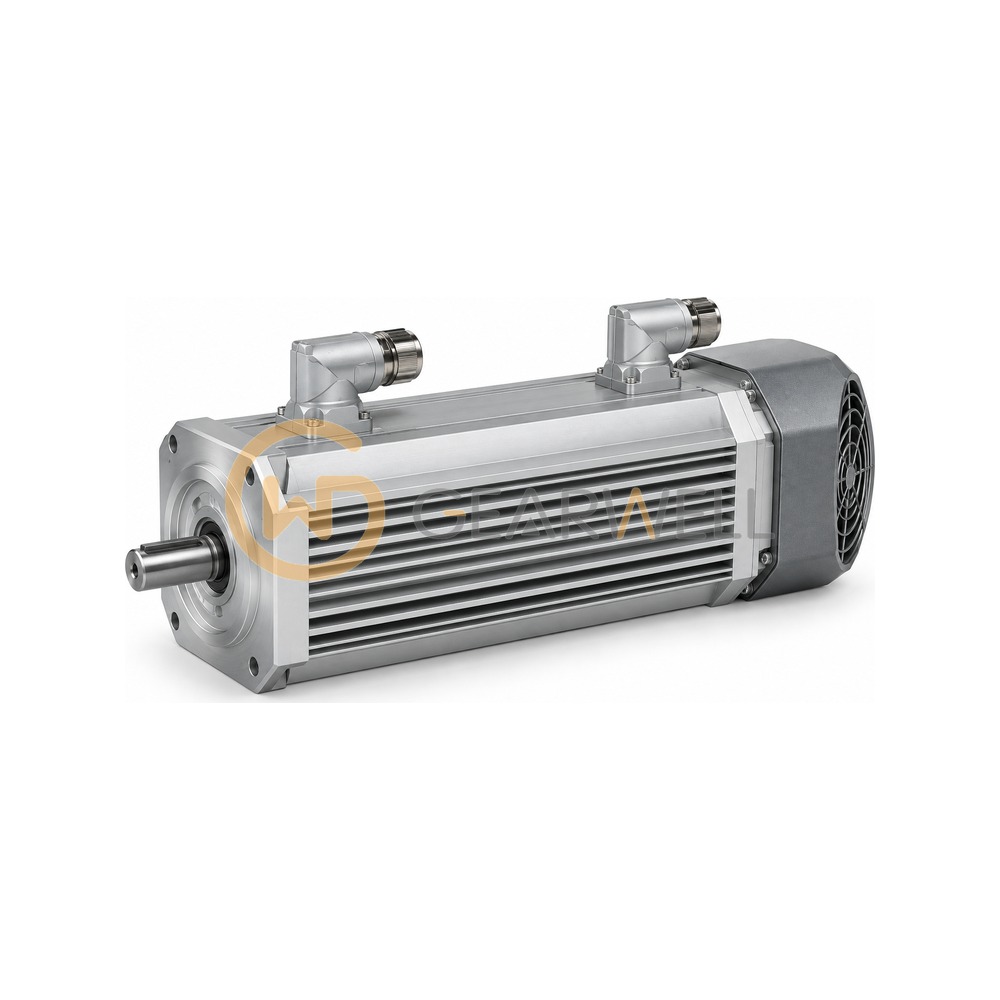

LENZE MCA 17N35-SRMP1-Z0F0-ST5F10N-R0SU MCA Asynchronous Servo Motor
- Brand
- LENZE
- Model
- MCA 17N35-SRMP1-Z0F0-ST5F10N-R0SU
- GEARWELL SKU
- GWP-000013272
- Category
- Servo Systems
Key specifications
- Rated power
- 6.9 kW
- Moment of inertia
- 36.0 kgcm²
- Product code decoded
- MCA = asynchronous compact servo motor + 17 = 165 mm square + N = overall length + 35 = 3500 rpm + "-" = 3 x 400 V, IP54/IP65 + SRM = SinCos multi-turn Hiperface AM1024-8V-H + P1 = permanent magnet brake DC 24 V
- Rated speed / max. speed
- 3480 / 8000 rpm
- Rated current / max. current
- 15.8 / 63.2 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE MCA 17N35-SRMP1-Z0F0-ST5F10N-R0SU MCA Asynchronous Servo Motor |
|---|---|
| Brand | LENZE |
| Model | MCA 17N35-SRMP1-Z0F0-ST5F10N-R0SU |
| Category | Servo Systems |
| Rated power | 6.9 kW |
| Moment of inertia | 36.0 kgcm² |
| Product code decoded | MCA = asynchronous compact servo motor + 17 = 165 mm square + N = overall length + 35 = 3500 rpm + "-" = 3 x 400 V, IP54/IP65 + SRM = SinCos multi-turn Hiperface AM1024-8V-H + P1 = permanent magnet brake DC 24 V |
| Rated speed / max. speed | 3480 / 8000 rpm |
| Rated current / max. current | 15.8 / 63.2 A |
| Standstill / rated / max. torque | 23.9 / 19.0 / 100 Nm |
| Cooling / degree of protection | forced ventilated / IP54 |
| Code suffix "-Z0F0-ST5F10N-R0SU" | as collected; not listed in the official product-code table |
| Rated voltage / rated frequency | 390 V / 120 Hz |
