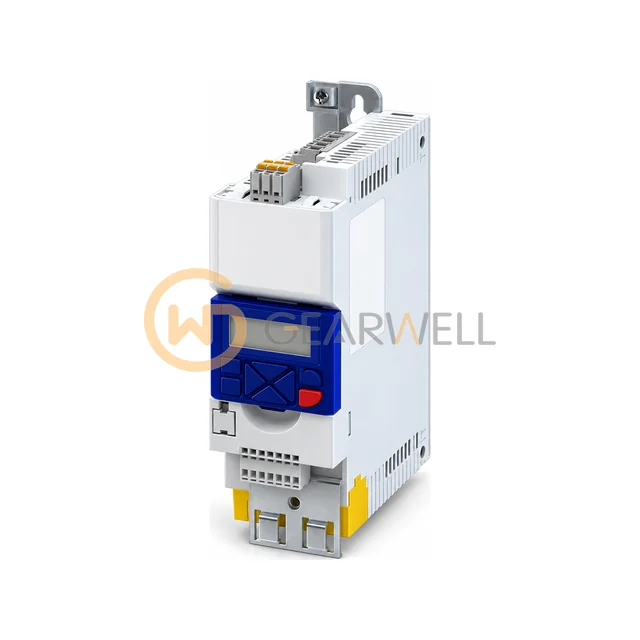

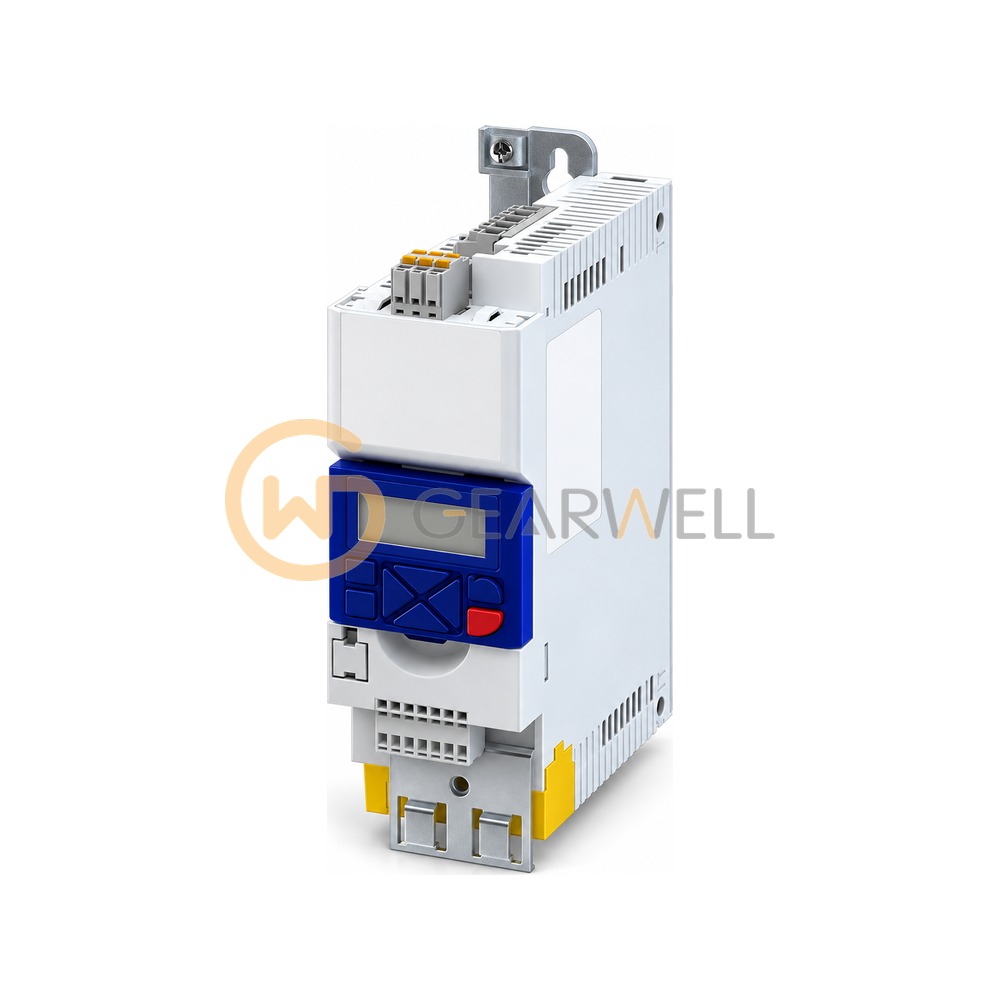

LENZE I55AE137B1A01000KS i550 cabinet Frequency Inverter 0.37 kW
- Brand
- LENZE
- Model
- I55AE137B1A01000KS
- GEARWELL SKU
- GWP-000013271
- Category
- Variable Frequency Drives
Key specifications
- Series
- i550 cabinet (i500 family), generation 1
- Rated power
- 0.37 kW / 0.5 hp
- Order code decoded
- I55AE = i550 cabinet + 137 = 0.37 kW + B = 1/N/PE AC 230/240 V + 1 = single axis + A = Basic Safety STO + 1 = integrated RFI filter + 0 = region EU (50 Hz) + 00KS = standard I/O with EtherCAT
- Mains voltage range
- 1 AC 170 V ... 264 V, 45 ... 65 Hz
- Code position 12 "0" (degree of protection)
- as collected; the official order-code table lists only V = IP20, coated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE I55AE137B1A01000KS i550 cabinet Frequency Inverter 0.37 kW |
|---|---|
| Brand | LENZE |
| Model | I55AE137B1A01000KS |
| Category | Variable Frequency Drives |
| Series | i550 cabinet (i500 family), generation 1 |
| Rated power | 0.37 kW / 0.5 hp |
| Order code decoded | I55AE = i550 cabinet + 137 = 0.37 kW + B = 1/N/PE AC 230/240 V + 1 = single axis + A = Basic Safety STO + 1 = integrated RFI filter + 0 = region EU (50 Hz) + 00KS = standard I/O with EtherCAT |
| Mains voltage range | 1 AC 170 V ... 264 V, 45 ... 65 Hz |
| Code position 12 "0" (degree of protection) | as collected; the official order-code table lists only V = IP20, coated |
| Rated output current (4 kHz / 8 kHz / 16 kHz) | 2.4 / 2.4 / 1.6 A |
| Rated mains current without / with mains choke | 5.7 / 4.8 A |
