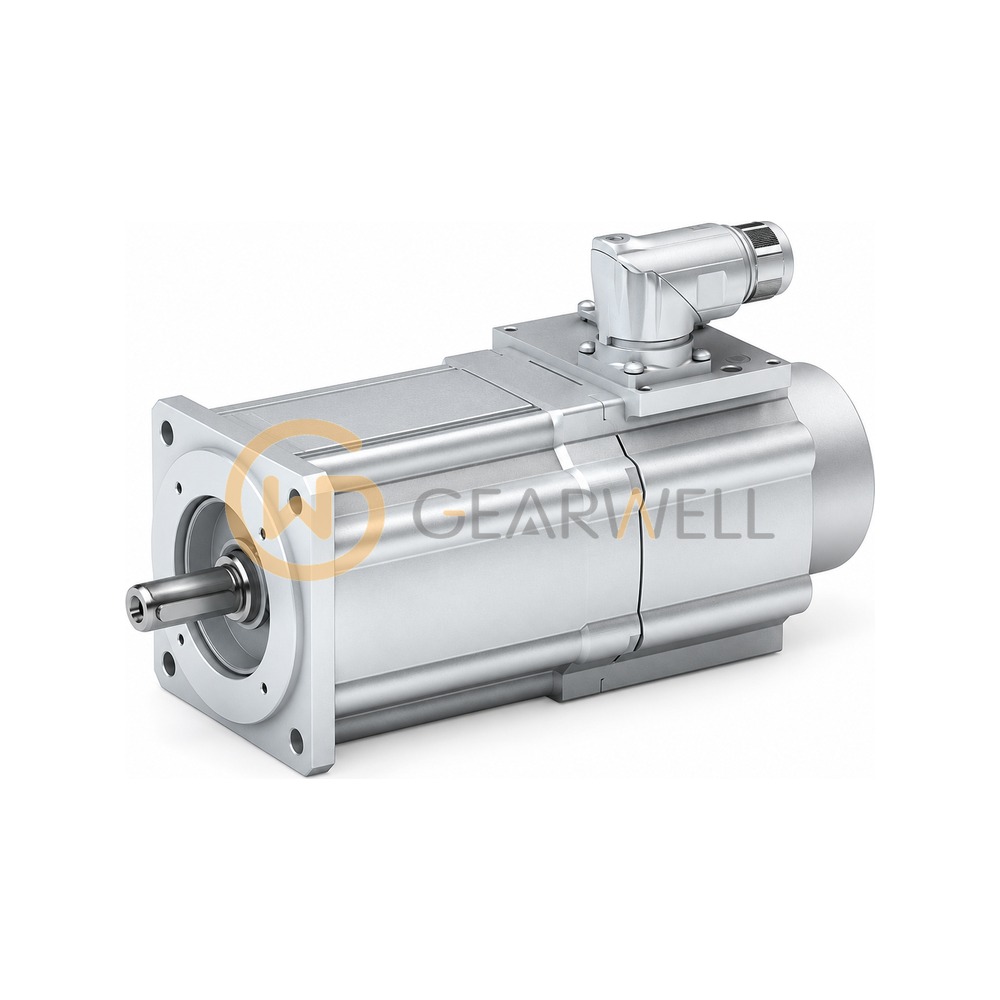

LENZE MCS09H41RS0P1Z0D0ST5S00NP0SU MCS Synchronous Servo Motor 1.6 kW
- Brand
- LENZE
- Model
- MCS09H41RS0P1Z0D0ST5S00NP0SU
- GEARWELL SKU
- GWP-000015743
- Category
- Servo Systems
Key specifications
- Brake
- P1 = permanent magnet brake DC 24 V
- Feedback
- RS0 = resolver p=1
- Max. torque
- 20.0 Nm
- Rated power
- 1.6 kW
- Rated speed
- 4050 rpm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE MCS09H41RS0P1Z0D0ST5S00NP0SU MCS Synchronous Servo Motor 1.6 kW |
|---|---|
| Brand | LENZE |
| Model | MCS09H41RS0P1Z0D0ST5S00NP0SU |
| Category | Servo Systems |
| Brake | P1 = permanent magnet brake DC 24 V |
| Feedback | RS0 = resolver p=1 |
| Max. torque | 20.0 Nm |
| Rated power | 1.6 kW |
| Rated speed | 4050 rpm |
| Rated torque | 3.8 Nm |
| Motor frame size | 09 = square dimension 89 mm |
| Rated speed code | 41 = 4100 rpm class (rated 4050 rpm) |
| Inverter mains connection | - = 3 x 400 V |
| Code positions "Z0D0ST5S00NP0SU" | as collected; not listed in the MCS product code table |
