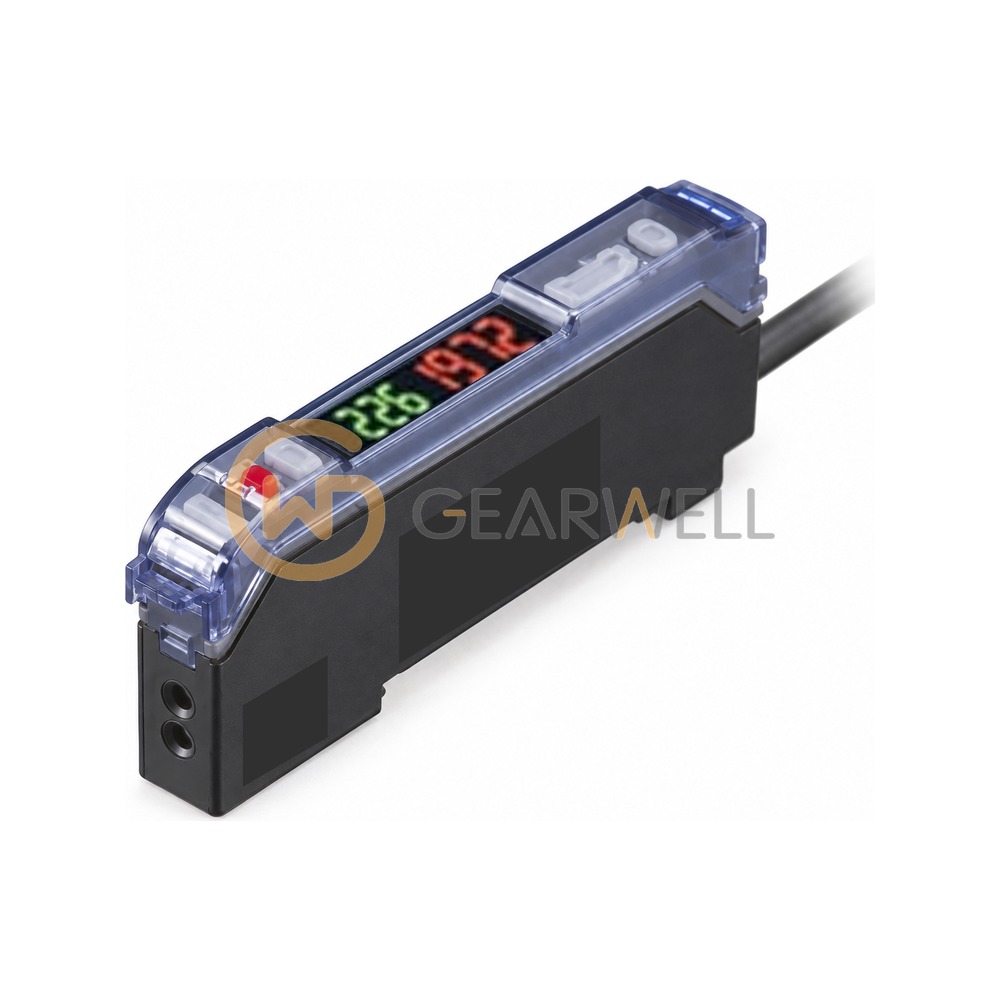

KEYENCE FS-V21R FS-V20 Series Fiber Amplifier Cable Type Main Unit NPN
- Brand
- KEYENCE
- Model
- FS-V21R
- GEARWELL SKU
- GWP-000012984
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- Main unit, NPN, cable type
- Weight
- Approx. 80 g (incl. 2 m cable)
- Light source
- Red LED
- Power voltage
- 12-24 VDC ±10%
- Response time
- 50 µs (HIGH SPEED) to 4 ms (ULTRA TURBO)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE FS-V21R FS-V20 Series Fiber Amplifier Cable Type Main Unit NPN |
|---|---|
| Brand | KEYENCE |
| Model | FS-V21R |
| Category | Proximity & Photoelectric Sensors |
| Type | Main unit, NPN, cable type |
| Weight | Approx. 80 g (incl. 2 m cable) |
| Light source | Red LED |
| Power voltage | 12-24 VDC ±10% |
| Response time | 50 µs (HIGH SPEED) to 4 ms (ULTRA TURBO) |
| Control output | 100 mA max. (40 VDC max.) |
| Timer function | OFF-delay/ON-delay/One-shot, 1-500 ms |
| Output selection | Light-ON/Dark-ON selectable |
| Ambient temperature | -10 to +55 °C |
