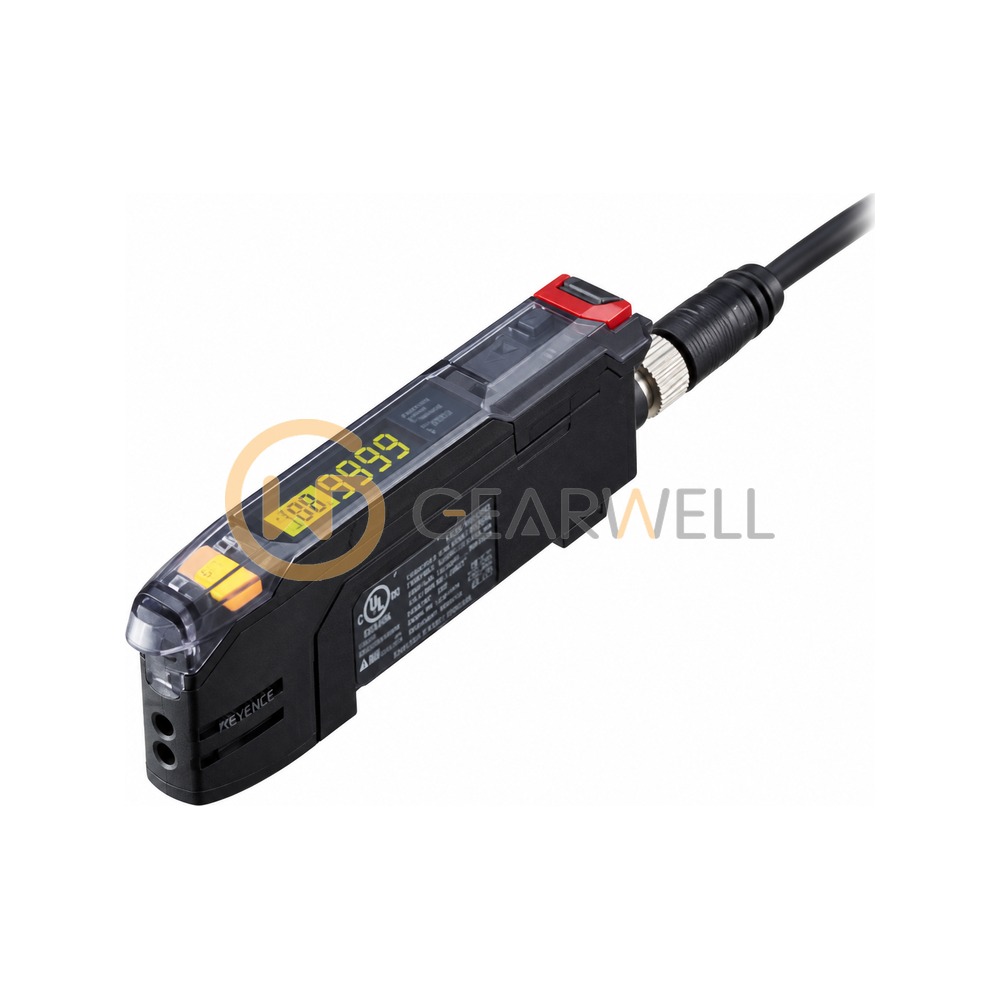

KEYENCE FS-N41C FS-N40 Fiber Amplifier
- Brand
- KEYENCE
- Model
- FS-N41C
- GEARWELL SKU
- GWP-000010665
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- M8 Connector
- External input
- Input time: 2 ms (ON) /20 ms (OFF) or longer
- Light source LED
- Transmitter side: Red, four-element LED (wavelength: 660 nm)
- Protection circuit
- Protection against reverse power connection, output overcurrent, output surge, and reverse output connection
- Main unit/expansion unit
- Main unit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE FS-N41C FS-N40 Fiber Amplifier |
|---|---|
| Brand | KEYENCE |
| Model | FS-N41C |
| Category | Proximity & Photoelectric Sensors |
| Type | M8 Connector |
| External input | Input time: 2 ms (ON) /20 ms (OFF) or longer |
| Light source LED | Transmitter side: Red, four-element LED (wavelength: 660 nm) |
| Protection circuit | Protection against reverse power connection, output overcurrent, output surge, and reverse output connection |
| Main unit/expansion unit | Main unit |
| Number of control outputs | 2 |
| Number of external inputs | 1 |
| Power supply / Power voltage | 10 to 30 VDC (including 10 % ripple (P-P) or less), class 2 or LPS |
