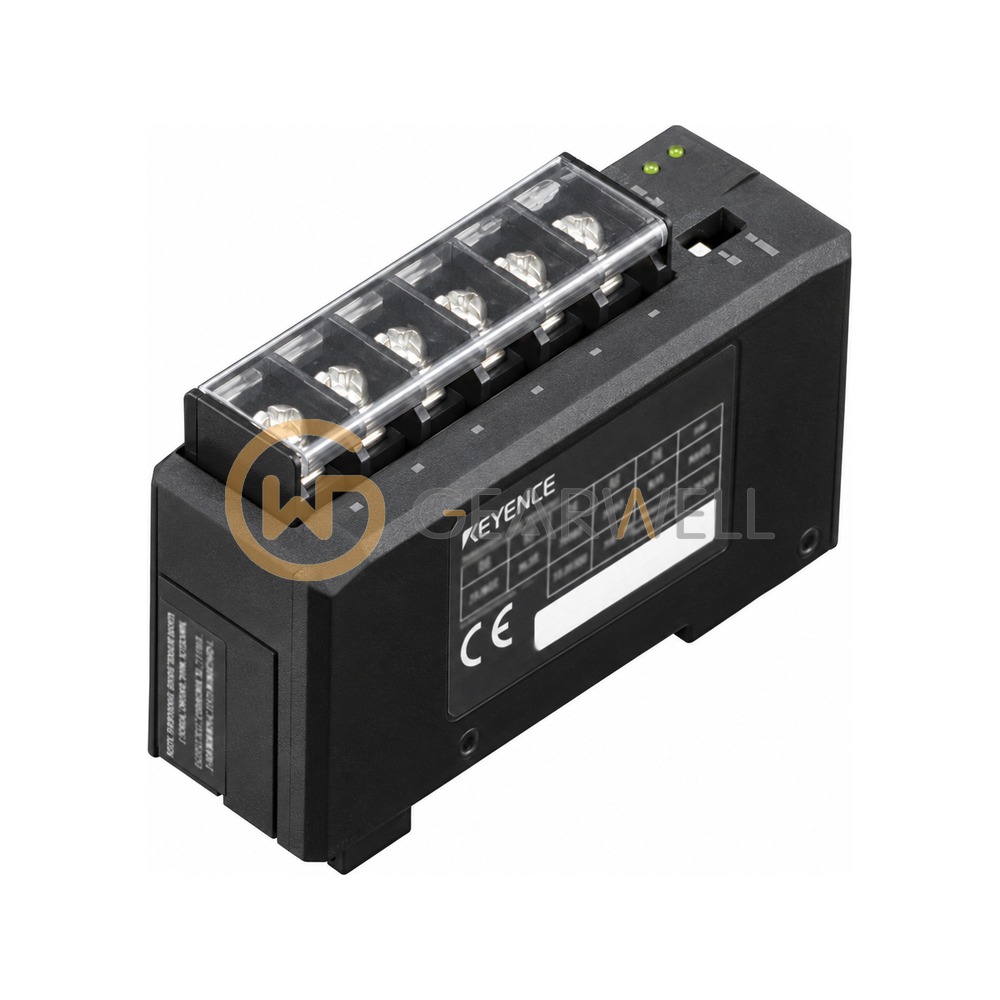

KEYENCE DL-RS1A DL RS-232C Communication Unit
- Brand
- KEYENCE
- Model
- DL-RS1A
- GEARWELL SKU
- GWP-000010664
- Category
- Industrial Communication
Key specifications
- Baud rate
- 2,400/4,800/9,600/19,200/38,400 bps selectable (Factory-setting: 9,600 bps)
- Indicator
- Communication indicator lamp (green x 2), Alarm indicator lamp (red), Power indicator lamp (green)
- Parity check
- None/Even/Odd selectable (Factory-setting: None)
- Data delimiter
- Data reception: automatically recognizes CR or CR+LF Data transmission: Fixed to CR+LF
- Data bit length
- 8 bits/7 bits selectable (Factory-setting: 8 bits)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE DL-RS1A DL RS-232C Communication Unit |
|---|---|
| Brand | KEYENCE |
| Model | DL-RS1A |
| Category | Industrial Communication |
| Baud rate | 2,400/4,800/9,600/19,200/38,400 bps selectable (Factory-setting: 9,600 bps) |
| Indicator | Communication indicator lamp (green x 2), Alarm indicator lamp (red), Power indicator lamp (green) |
| Parity check | None/Even/Odd selectable (Factory-setting: None) |
| Data delimiter | Data reception: automatically recognizes CR or CR+LF Data transmission: Fixed to CR+LF |
| Data bit length | 8 bits/7 bits selectable (Factory-setting: 8 bits) |
| Stop bit length | 1 bit |
| Transmission code | ASCII |
| Synchronization between the transmitter and receiver | Asynchronous |
