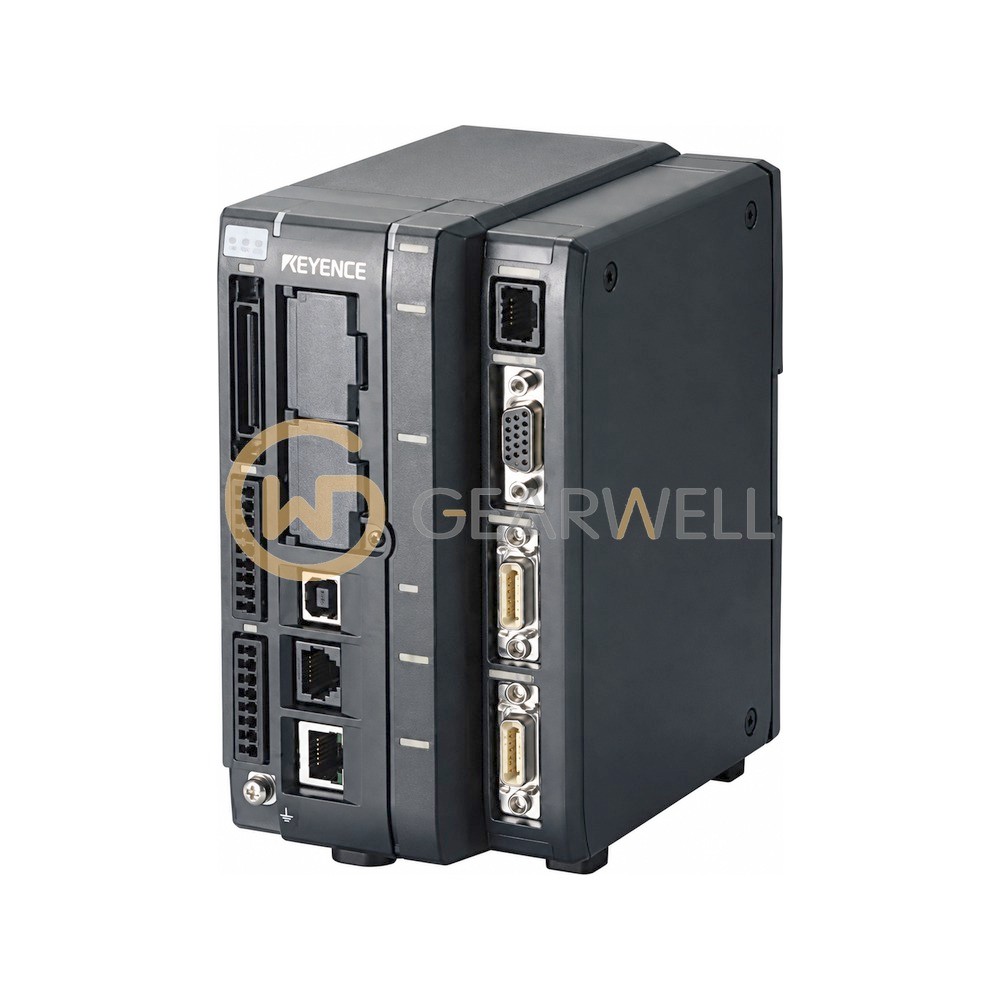

KEYENCE CV-5001P CV-5000 Digital Image Sensor Controller

Key specifications

Geometry: • Calculation result can be reflected • Shapes are point, line, and circle
No. of pixels: • 512 (H) × 480 (V), Approx 240,000 pixels • 640 (H) × 480 (V), Approx 310,000 pixels
Control input: 18 inputs Input rating 26.4 V or less, 2 mA or more
Monitor output: SVGA 800x600 (24-bit colour 60 Hz)
Control output / Universal output: 27 outputs PNP (including two FLASH outputs linked to external trigger.)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	KEYENCE CV-5001P CV-5000 Digital Image Sensor Controller
Brand	KEYENCE
Model	CV-5001P
Category	Machine Safety & Vision
Geometry	• Calculation result can be reflected • Shapes are point, line, and circle
No. of pixels	• 512 (H) × 480 (V), Approx 240,000 pixels • 640 (H) × 480 (V), Approx 310,000 pixels
Control input	18 inputs Input rating 26.4 V or less, 2 mA or more
Monitor output	SVGA 800x600 (24-bit colour 60 Hz)
Control output / Universal output	27 outputs PNP (including two FLASH outputs linked to external trigger.)
Window settings / Measurement area	128 locations per program
Main processor for image processing	DSP
Number of screens that can be registered	Maximum 1000 screens for each program (depending on SD card size), Compressed saves possible
