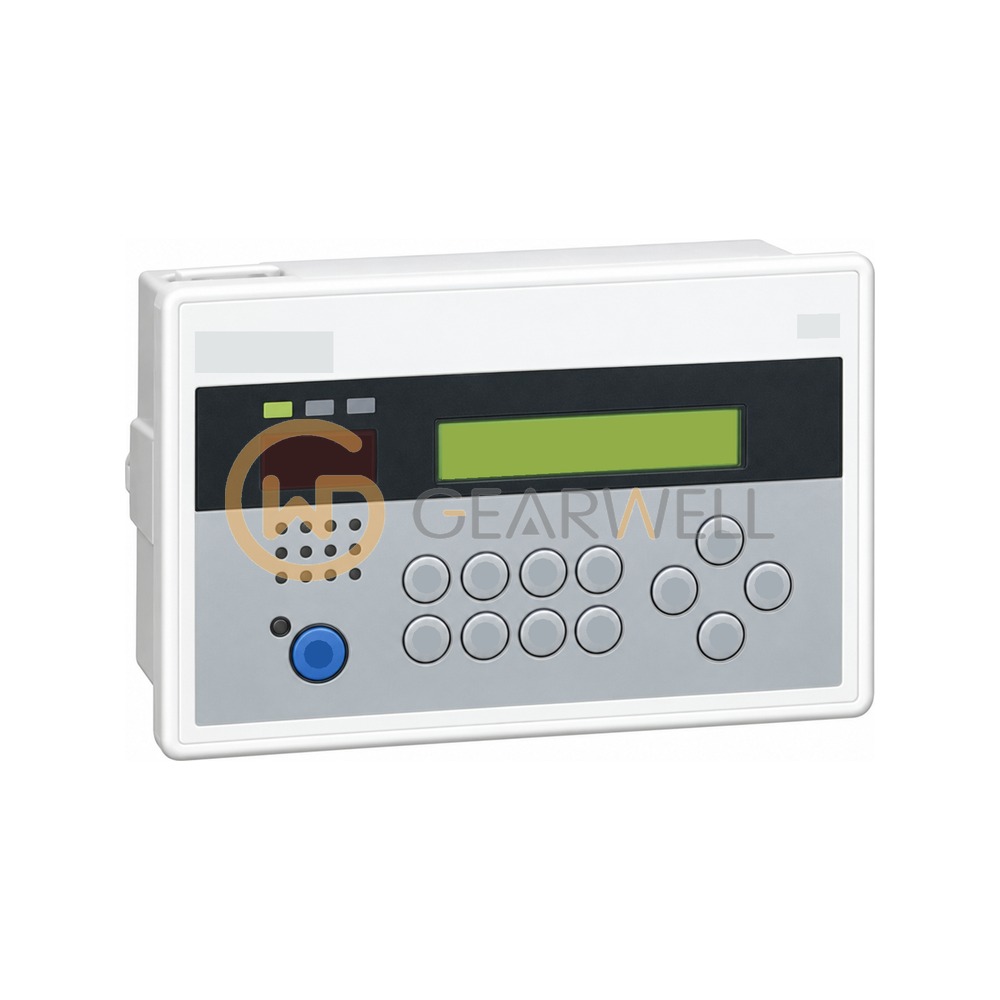

KEYENCE DV-90PE DV-90 Auto ID Data Controller
- Brand
- KEYENCE
- Model
- DV-90PE
- GEARWELL SKU
- GWP-000012841
- Category
- Industrial Communication
Key specifications
- USB
- USB 2.0 Full Speed
- Inputs
- 4
- Weight
- approx. 360 g
- Outputs
- 16 (PNP open collector, 30 VDC 100 mA)
- Power voltage
- 24 VDC ±10%
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE DV-90PE DV-90 Auto ID Data Controller |
|---|---|
| Brand | KEYENCE |
| Model | DV-90PE |
| Category | Industrial Communication |
| USB | USB 2.0 Full Speed |
| Inputs | 4 |
| Weight | approx. 360 g |
| Outputs | 16 (PNP open collector, 30 VDC 100 mA) |
| Power voltage | 24 VDC ±10% |
| Enclosure rating | IP65 |
| Serial interface | RS-232C x2, 600 to 115200 bps |
| Applicable readers | SR-2000/1000/750/700/G100 series, BL-1300/700/600/180/N70RKE, HR-100 |
| Current consumption | 850 mA or less |
| Preset data registrations | 900 max. |
