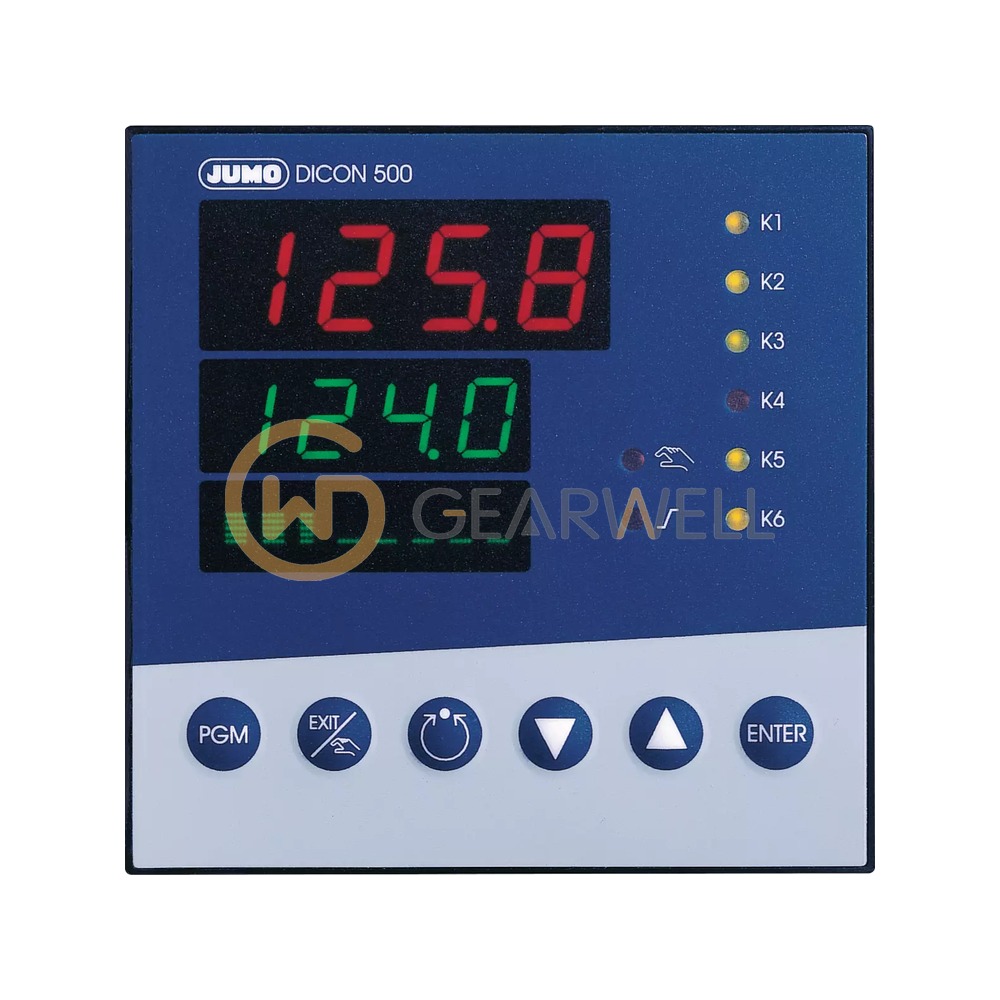

JUMO 703570/081-1100-110000-23-00/00,056 DICON 500 Controller

Key specifications

Supply: 23 = 110-240 V AC +10/-15 %, 48-63 Hz
Approvals: 056 = EN 14597
Interface: 00 = not assigned
Basic type: 703570 = DICON 500, 96 mm x 96 mm
Output slots: 110000 = slots 1 and 2 relay (changeover), others not assigned

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	JUMO 703570/081-1100-110000-23-00/00,056 DICON 500 Controller
Brand	JUMO
Model	703570/081-1100-110000-23-00/00,056
Category	Pressure, Flow & Temperature
Supply	23 = 110-240 V AC +10/-15 %, 48-63 Hz
Approvals	056 = EN 14597
Interface	00 = not assigned
Basic type	703570 = DICON 500, 96 mm x 96 mm
Output slots	110000 = slots 1 and 2 relay (changeover), others not assigned
Analog inputs	1100 = inputs 1 and 2 universal, 3 and 4 not assigned
Maths and logic module	00 = not available
Format / version / language	0 = 96 x 96 mm; 8 = standard factory settings; 1 = German
