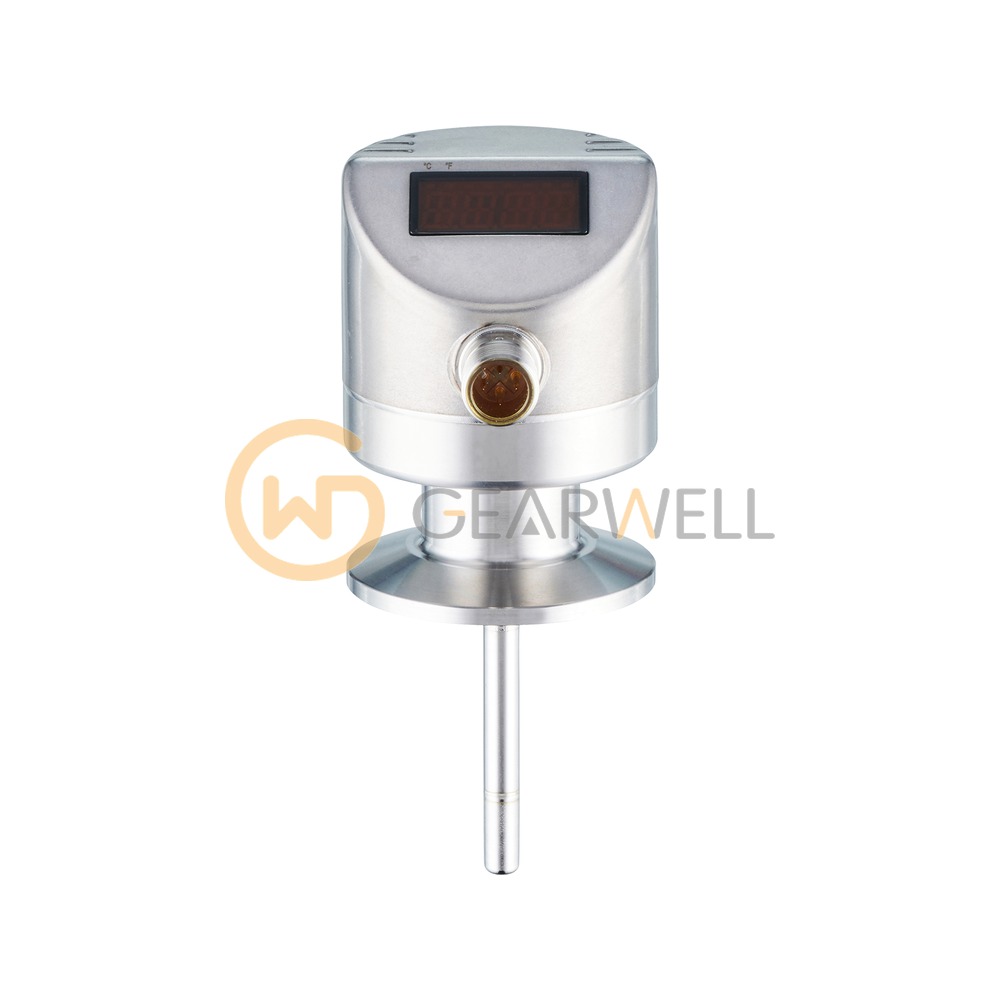

IFM TD2837 TD-100CFEC01-A-ZVG/US Temperature Transmitter with Display
- Brand
- IFM
- Model
- TD2837
- GEARWELL SKU
- GWP-000016730
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- analog signal; IO-Link; (configurable)
- Probe diameter
- 6 mm
- Probe length L
- 100 mm
- Measuring range
- -50...150 °C; -58...302 °F
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TD2837 TD-100CFEC01-A-ZVG/US Temperature Transmitter with Display |
|---|---|
| Brand | IFM |
| Model | TD2837 |
| Category | Pressure, Flow & Temperature |
| Output signal | analog signal; IO-Link; (configurable) |
| Probe diameter | 6 mm |
| Probe length L | 100 mm |
| Measuring range | -50...150 °C; -58...302 °F |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 18...32 DC; (cULus - Class 2 source required) V |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Installation length EL | 100 mm |
