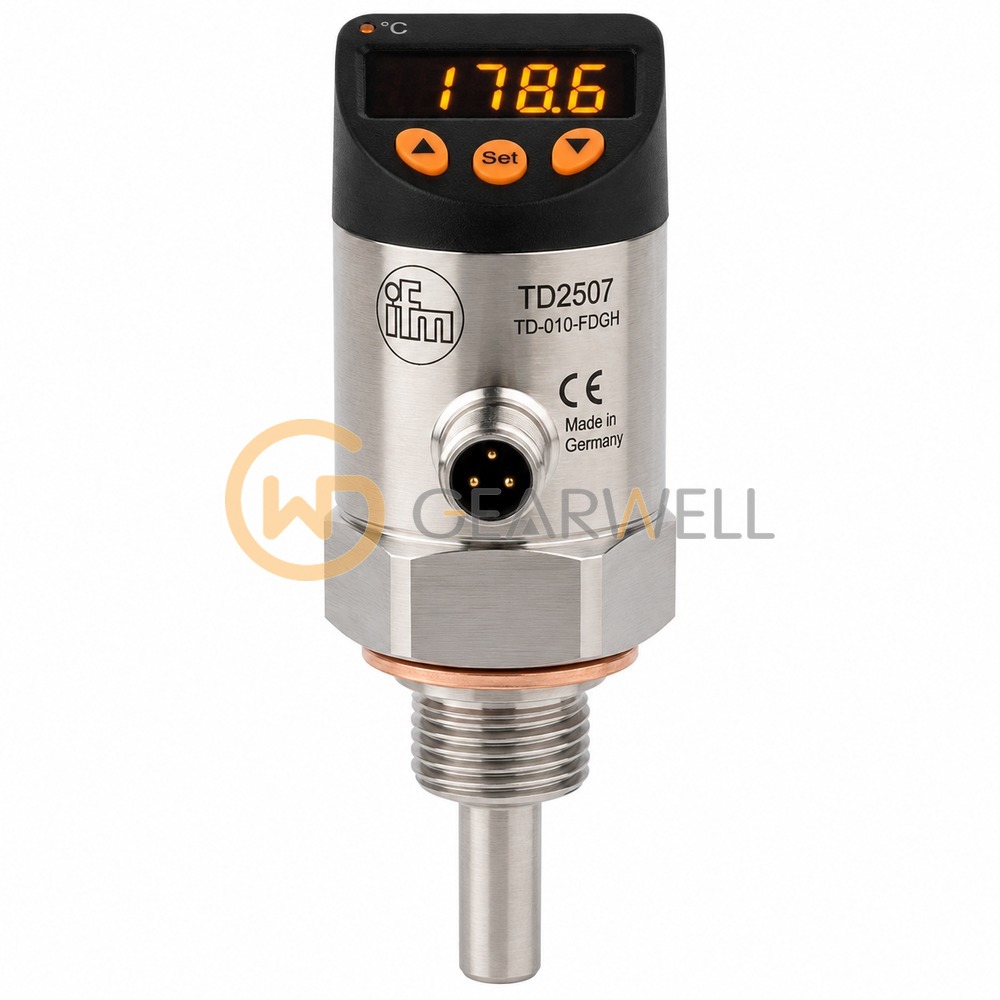

IFM TD2507 Temperature Transmitter with Display

Product overview

The ifm TD2507 (TD-030CFER12-A-ZVG/US) is a temperature transmitter with display for liquids and gases. Its measuring range is -50…150 °C. It uses a Pt 1000 measuring element (DIN EN 60751, class A) in a 30 mm probe, Ø 6 mm, with an installation length of 30 mm, and its dynamic response T05 / T09 is 1 / 3 s. The process connection is a G 1/2 external thread with sealing cone, rated to 160 bar, and the wetted parts are electropolished stainless steel (1.4404 / 316L). It provides 1 analog output (4…20 mA) and IO-Link, runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 contacts). ifm specifies an analog output precision of ±(0.3 K + 0.1 % of the set measuring span); accuracy values apply to flowing water. The unit is Ø 50 mm and 129.5 mm long and is rated IP67, IP68 and IP69K for -25…80 °C ambient.
