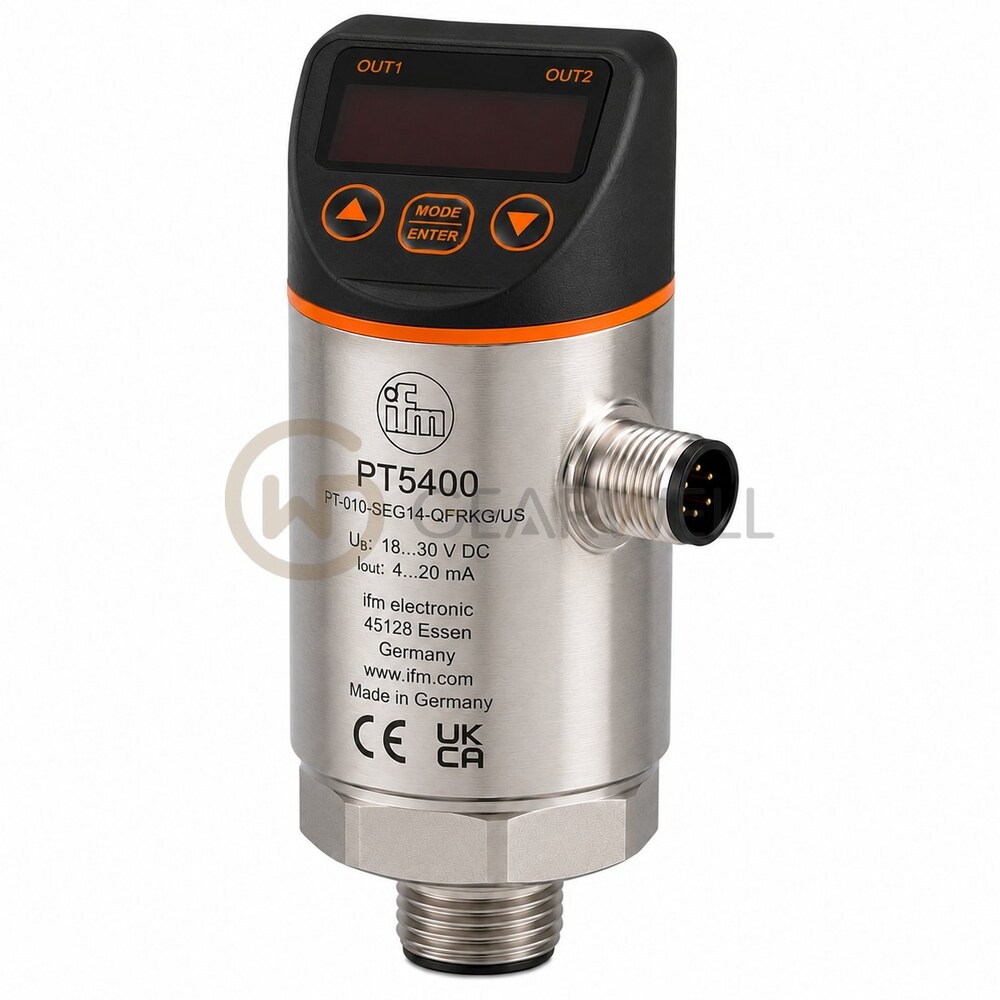

IFM PT5400 Pressure Transmitter
- Brand
- IFM
- Model
- PT5400
- GEARWELL SKU
- GWP-000002859
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Pressure transmitter
- Output signal
- 4–20 mA analogue
- Pressure type
- Relative pressure
- Measurement range
- 0–400 bar / 0–5800 psi
- Operating voltage
- 8.5–36 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PT5400 (PT-400-SEG14-A-ZVG/US/ /W) is a pressure transmitter for liquids and gases. It measures relative pressure over 0…400 bar (0…5800 psi), with a pressure rating of 1000 bar and a minimum burst pressure of 1700 bar. The process connection is a G 1/4 external thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (630/1.4542/17-4 PH), and the permitted medium temperature is -40…90 °C. It provides 1 analog output (4…20 mA), runs on 8.5…36 V DC and connects through an M12 connector (A-coded, 2 contacts). ifm specifies characteristic deviation < ± 0.5 % of span and repeatability < ± 0.05 % of span. The sensor is rated IP67 and IP69K for -40…90 °C ambient.
Technical reference
| Product name | IFM PT5400 Pressure Transmitter |
|---|---|
| Brand | IFM |
| Model | PT5400 |
| Category | Industrial Automation Parts |
| Product type | Pressure transmitter |
| Output signal | 4–20 mA analogue |
| Pressure type | Relative pressure |
| Measurement range | 0–400 bar / 0–5800 psi |
| Operating voltage | 8.5–36 V DC |
| Medium temperature | -40 to +90 °C |
| Process connection | G1/4 external thread |
| Electrical connection | M12 × 1 connector |
