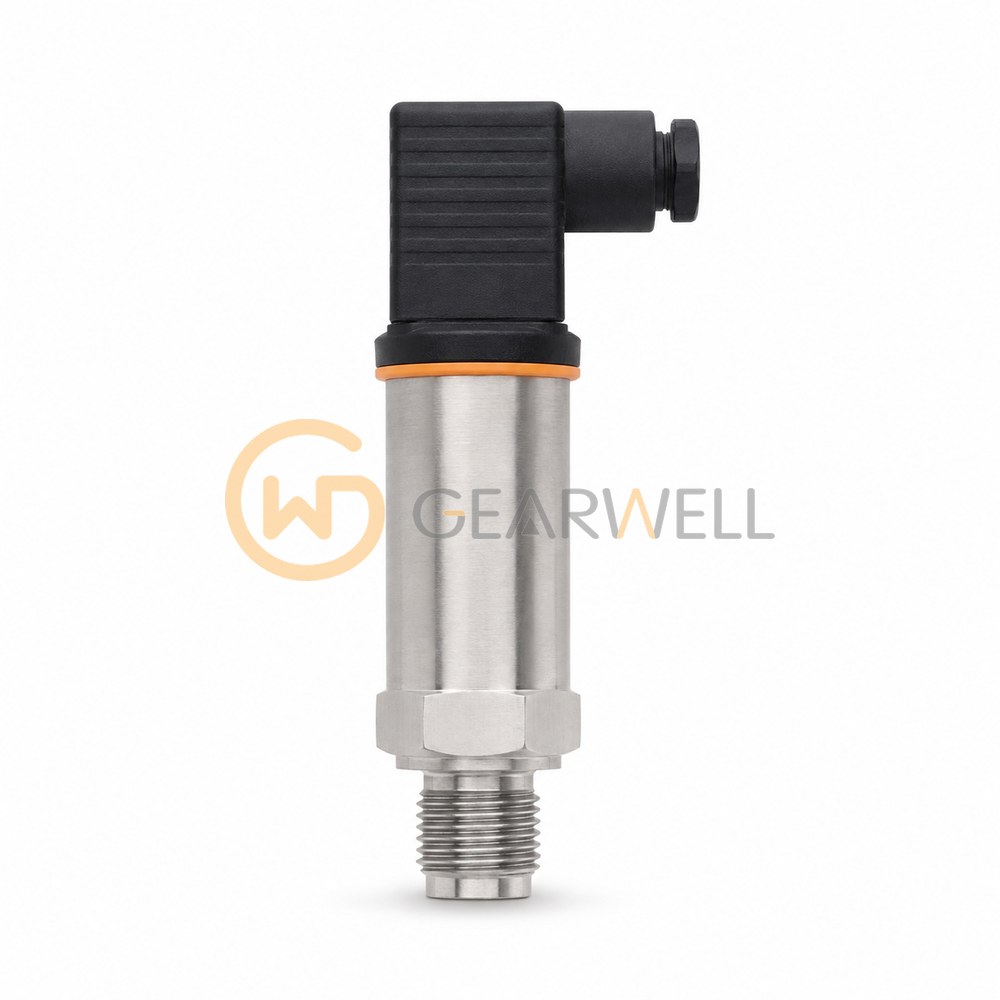

IFM PT0507 Pressure transmitter
- Brand
- IFM
- Model
- PT0507
- GEARWELL SKU
- GWP-000003499
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 116.5 g
- Dimensions
- Ø 29 / L = 58.8 mm
- Protection
- IP 67
- Product type
- Pressure transmitter
- Output signal
- analog signal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PT0507 (PT-001-AFG14-A-ZVG/US) is a pressure transmitter for liquids and gases. It measures absolute pressure over 0…1 bar (0…1000 mbar), with a pressure rating of 2 bar and a minimum burst pressure of 5 bar. The process connection is a G 1/4 external thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (1.4404 / 316L), and the permitted medium temperature is 0…80 °C. It provides 1 analog output (4…20 mA), runs on 8…30 V DC and connects through an M12 connector (A-coded, 2 contacts). ifm specifies characteristic deviation < ± 1.0 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP67 for 0…80 °C ambient.
Technical reference
| Product name | IFM PT0507 Pressure transmitter |
|---|---|
| Brand | IFM |
| Model | PT0507 |
| Category | Industrial Automation Parts |
| Weight | 116.5 g |
| Dimensions | Ø 29 / L = 58.8 mm |
| Protection | IP 67 |
| Product type | Pressure transmitter |
| Output signal | analog signal |
| Operating voltage | 8...30 V DC |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Ambient temperature | 0...80 °C |
