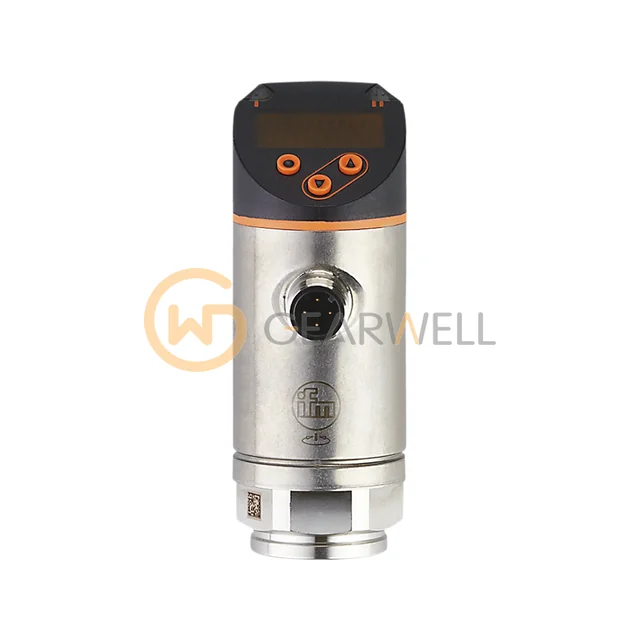

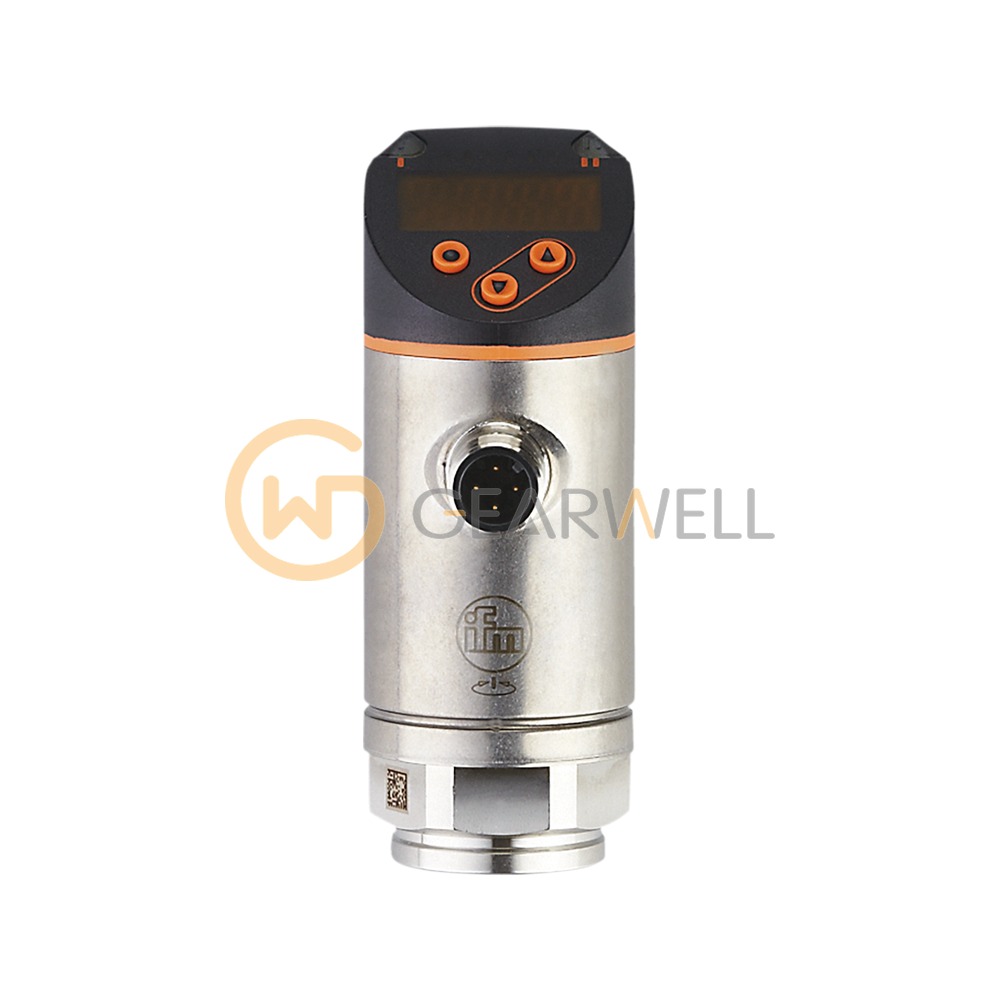

IFM PN7092 PN-100-SER14-QFRKG/US/ /V Pressure Sensor with Display
- Brand
- IFM
- Model
- PN7092
- GEARWELL SKU
- GWP-000009387
- Category
- Pressure, Flow & Temperature
Key specifications
- Dimensions
- Ø 34 / L = 90.7 mm
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC (to SELV/PELV) V
- Current consumption
- < 35 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PN7092 (PN-100-SER14-QFRKG/US/ /V) is a pressure sensor with display for liquids. It measures relative pressure over 0…100 bar (0…1450 psi), with a pressure rating of 300 bar and a minimum burst pressure of 650 bar. The process connection is a G 1/4 internal thread, the wetted parts are stainless steel (1.4404 / 316L), ceramics and FKM, and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP/NPN) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP65 and IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PN7092 PN-100-SER14-QFRKG/US/ /V Pressure Sensor with Display |
|---|---|
| Brand | IFM |
| Model | PN7092 |
| Category | Pressure, Flow & Temperature |
| Dimensions | Ø 34 / L = 90.7 mm |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC (to SELV/PELV) V |
| Current consumption | < 35 mA |
| Switching frequency DC | < 170 Hz |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
