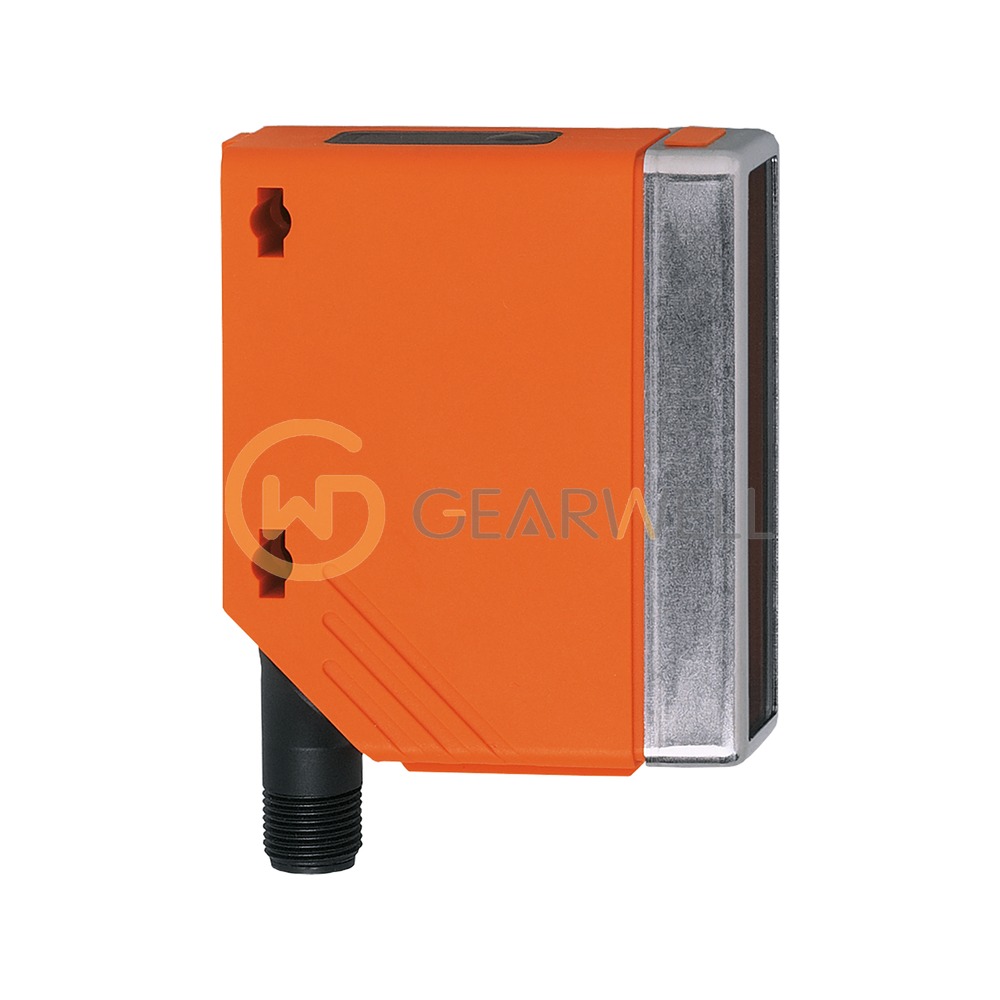

IFM O4H201 Diffuse Reflection Sensor with Background Suppression
- Brand
- IFM
- Model
- O4H201
- GEARWELL SKU
- GWP-000008404
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 100...2000 (white paper 200 x 200 mm 90% remission) mm
- Dimensions
- 74.4 x 27 x 63.8 mm
- Protection
- IP 65
- Output function
- dark-on mode
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O4H201 (O4H-DPKG/US100) is a diffuse reflection sensor with background suppression in a rectangular housing measuring 74.4 x 27 x 63.8 mm. ifm specifies a range of 100…2000 mm on white paper 200 x 200 mm with 90 % remission; on grey (18 % remission) it is 100…1100 mm and on black (6 % remission) 100…700 mm. It works with red light (624 nm). The light spot is at most 100 mm in diameter at maximum range. It has 1 PNP switching output. The switching output works in dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PA housing and a PMMA front lens and is rated IP65 for -25…60 °C ambient.
Technical reference
| Product name | IFM O4H201 Diffuse Reflection Sensor with Background Suppression |
|---|---|
| Brand | IFM |
| Model | O4H201 |
| Category | Proximity & Photoelectric Sensors |
| Range | 100...2000 (white paper 200 x 200 mm 90% remission) mm |
| Dimensions | 74.4 x 27 x 63.8 mm |
| Protection | IP 65 |
| Output function | dark-on mode |
| Electrical design | PNP |
| Operating voltage | 10...36 DC ("supply class 2" to cULus) V |
| Current consumption | 25 mA |
| Switching frequency DC | 1000 Hz |
