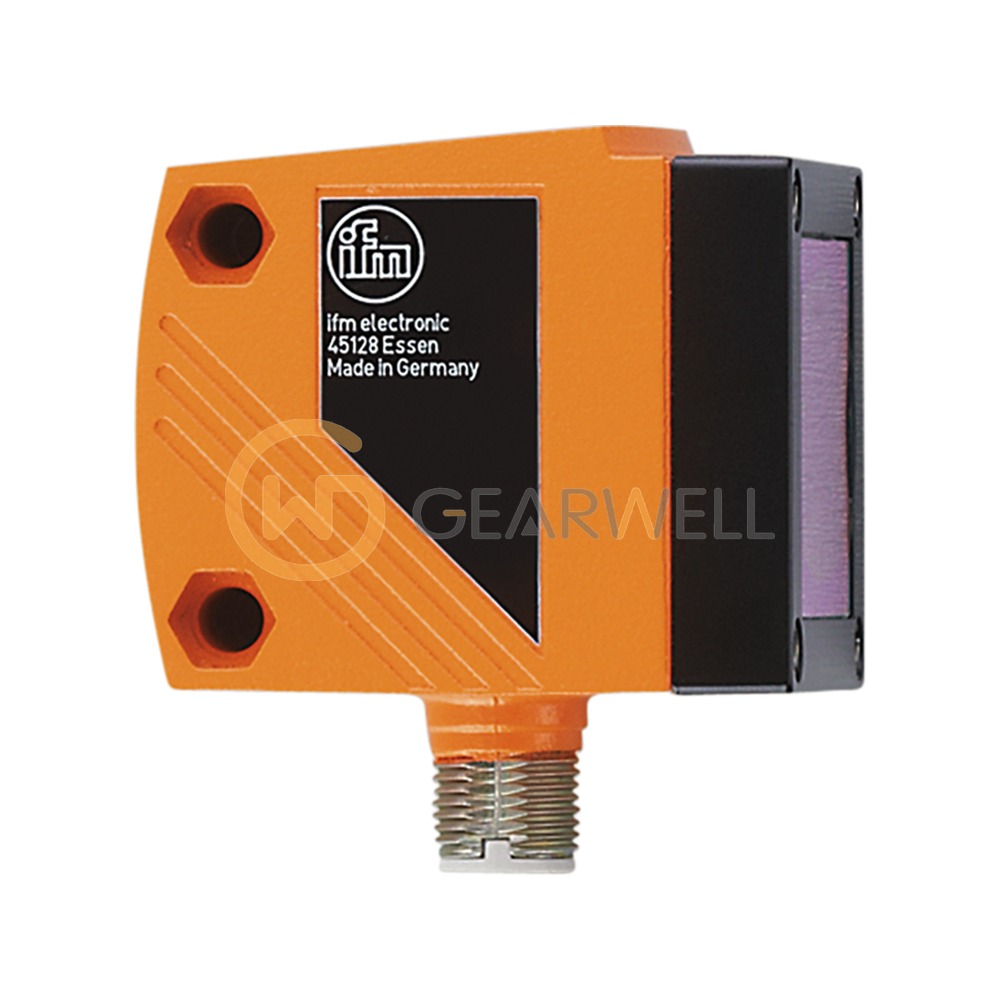

IFM O1D100 O1DLF3KG/IO-LINK Laser distance sensor
- Brand
- IFM
- Model
- O1D100
- GEARWELL SKU
- GWP-000012457
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- rectangular
- Protection
- IP 67
- Measuring range
- 0.2...10; (white paper 200 x 200 mm 90 % remission) m
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O1D100 (O1DLF3KG/IO-LINK) is a laser distance sensor in a rectangular housing measuring 59 x 42 x 52 mm. ifm specifies a measuring range of 0.2…10 m on white paper 200 x 200 mm with 90 % remission. It is laser protection class 2. The light spot is at most 25 mm in diameter at 10 m. It has 2 PNP switching outputs, 1 analog output (4…20 mA or 0…10 V) and IO-Link. The switching outputs are configurable as normally open or normally closed and carry up to 200 mA each. It runs on 18…30 V DC and connects through an M12 connector (A-coded, 5 contacts). It has a diecast zinc housing and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM O1D100 O1DLF3KG/IO-LINK Laser distance sensor |
|---|---|
| Brand | IFM |
| Model | O1D100 |
| Category | Proximity & Photoelectric Sensors |
| Housing | rectangular |
| Protection | IP 67 |
| Measuring range | 0.2...10; (white paper 200 x 200 mm 90 % remission) m |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP |
| Operating voltage | 18...30 DC; (cULus - Class 2 source required) V |
| Current consumption | < 150 mA |
| Laser protection class | 2 |
