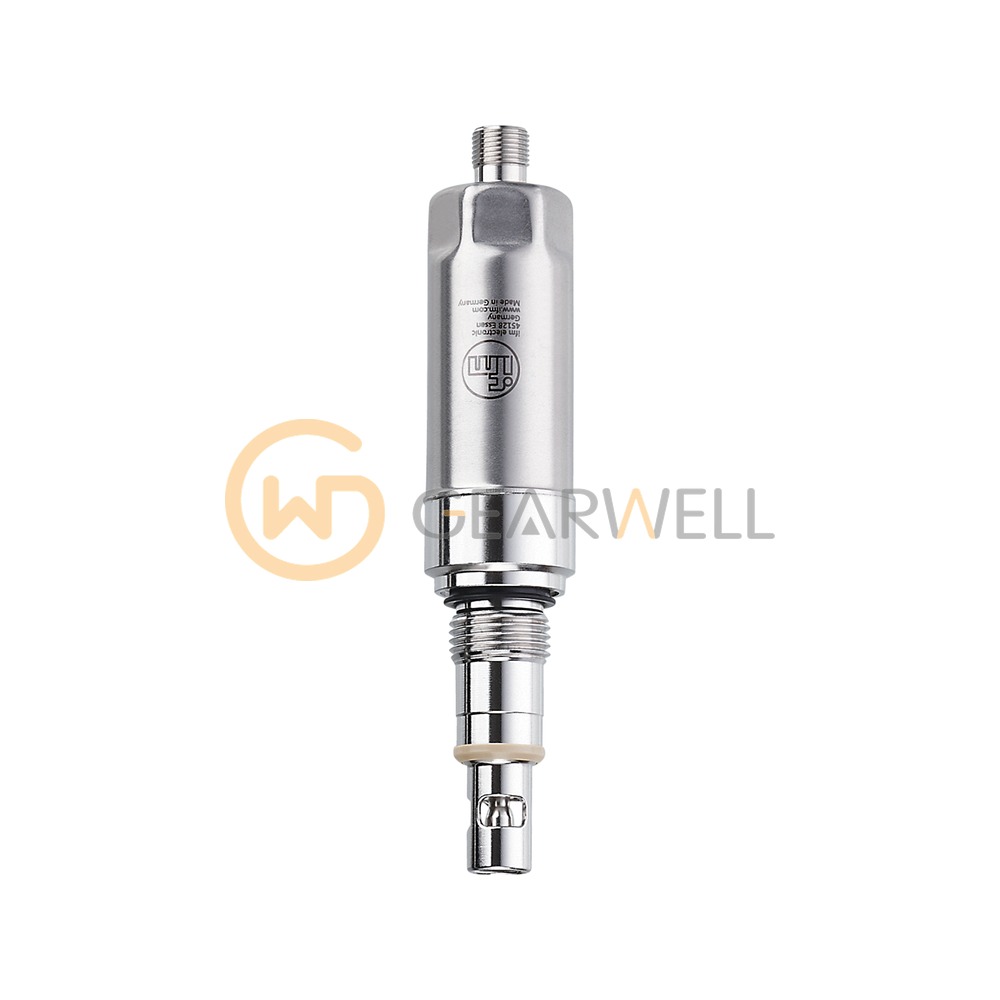

IFM LDL101 Conductive conductivity sensor
- Brand
- IFM
- Model
- LDL101
- GEARWELL SKU
- GWP-000016702
- Category
- Pressure, Flow & Temperature
Key specifications
- Media
- Conductive liquids
- Output signal
- analog signal; IO-Link
- Output function
- analog output scalable; selectable conductivity / temperature
- Operating voltage
- 18...30 DC V
- Process connection
- threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM LDL101 Conductive conductivity sensor |
|---|---|
| Brand | IFM |
| Model | LDL101 |
| Category | Pressure, Flow & Temperature |
| Media | Conductive liquids |
| Output signal | analog signal; IO-Link |
| Output function | analog output scalable; selectable conductivity / temperature |
| Operating voltage | 18...30 DC V |
| Process connection | threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG |
| Analog current output | 4...20 mA |
| Measuring range (temperature) | -25...150 °C |
| Measuring range (conductivity) | 0.04...1000 µS/cm |
