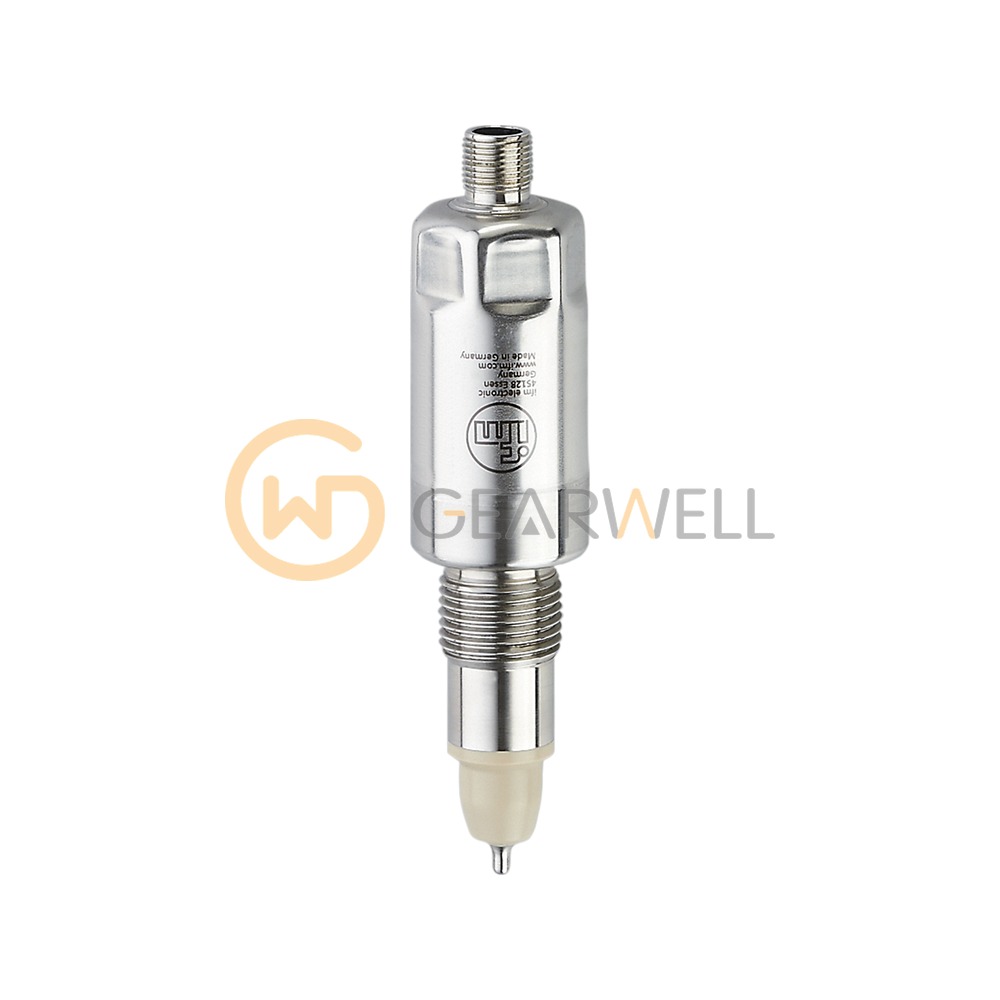

IFM LDL100 COND CONDUCTIVITY HYG G1/2 Conductive conductivity sensor
- Brand
- IFM
- Model
- LDL100
- GEARWELL SKU
- GWP-000012445
- Category
- Pressure, Flow & Temperature
Key specifications
- Protection
- IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)
- Output signal
- analog signal; IO-Link
- Output function
- analog output scalable; selectable conductivity / temperature
- Operating voltage
- 18...30 DC V
- Process connection
- threaded connection G 1/2 external thread sealing cone
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm LDL100 (COND CONDUCTIVITY HYG G1/2) is a conductive conductivity sensor for conductive liquids such as water, milk and CIP liquids. It measures conductivity over 100…15000 µS/cm with a resolution of 1 µS/cm, and medium temperature over -25…150 °C; ifm gives an accuracy of 10 % of the measured value ± 25 µS/cm. The process connection is a G 1/2 external thread with sealing cone, the pressure rating is 16 bar, the medium temperature range is -25…100 °C (150 °C for under 1 h) and the wetted parts are PEEK and stainless steel (1.4404 / 316L). It provides 1 analog output (4…20 mA) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). It is rated IP68 and IP69K for -40…60 °C ambient. It has UL approval under file E364788.
Technical reference
| Product name | IFM LDL100 COND CONDUCTIVITY HYG G1/2 Conductive conductivity sensor |
|---|---|
| Brand | IFM |
| Model | LDL100 |
| Category | Pressure, Flow & Temperature |
| Protection | IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| Output signal | analog signal; IO-Link |
| Output function | analog output scalable; selectable conductivity / temperature |
| Operating voltage | 18...30 DC V |
| Process connection | threaded connection G 1/2 external thread sealing cone |
| Current consumption | < 60 mA |
| Number of inputs and outputs | Number of analog outputs: 1 |
| Conductivity measurement - Measuring range | 100...15000 µS/cm |
