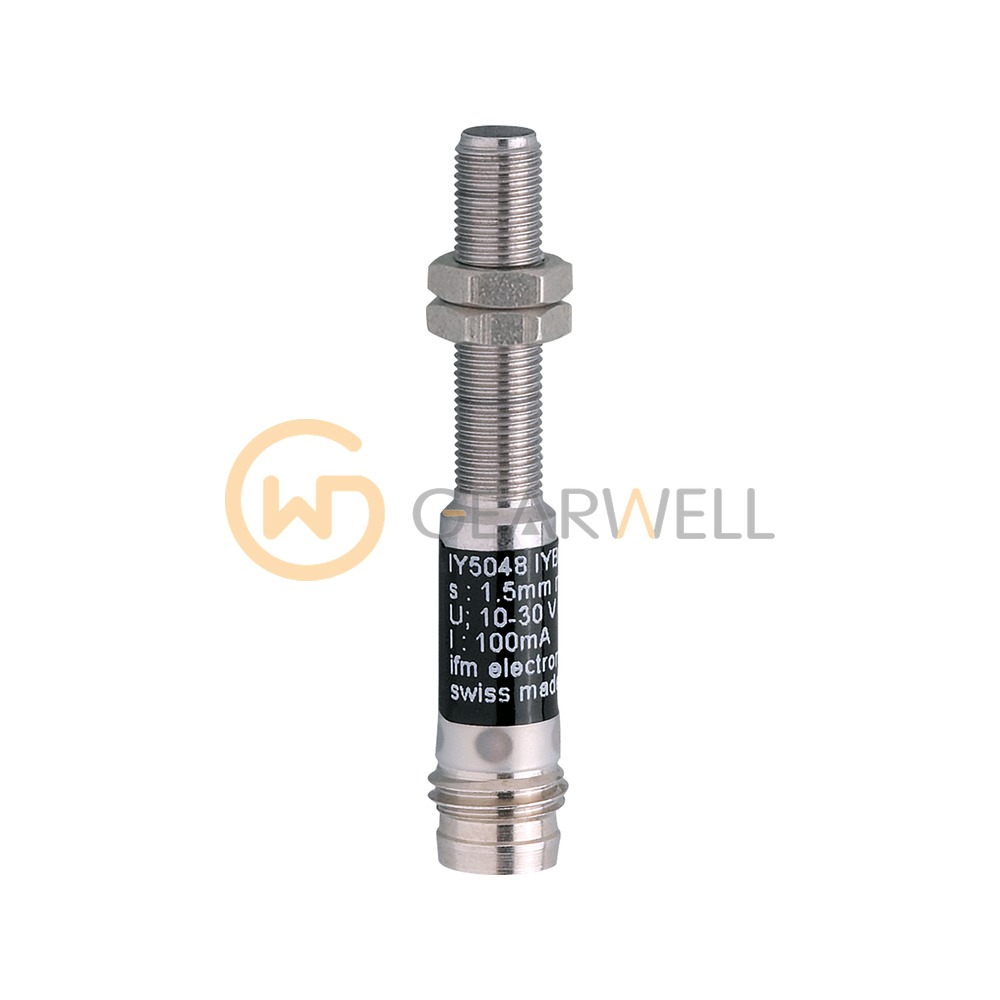

IFM IY5048 IY series Inductive sensor
- Brand
- IFM
- Model
- IY5048
- GEARWELL SKU
- GWP-000012440
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M5 x 0.5 / L = 41 mm
- Protection
- IP 67
- Sensing range
- 1.5 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM IY5048 IY series Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IY5048 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M5 x 0.5 / L = 41 mm |
| Protection | IP 67 |
| Sensing range | 1.5 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...70 °C |
| Switching frequency DC | 1800 Hz |
