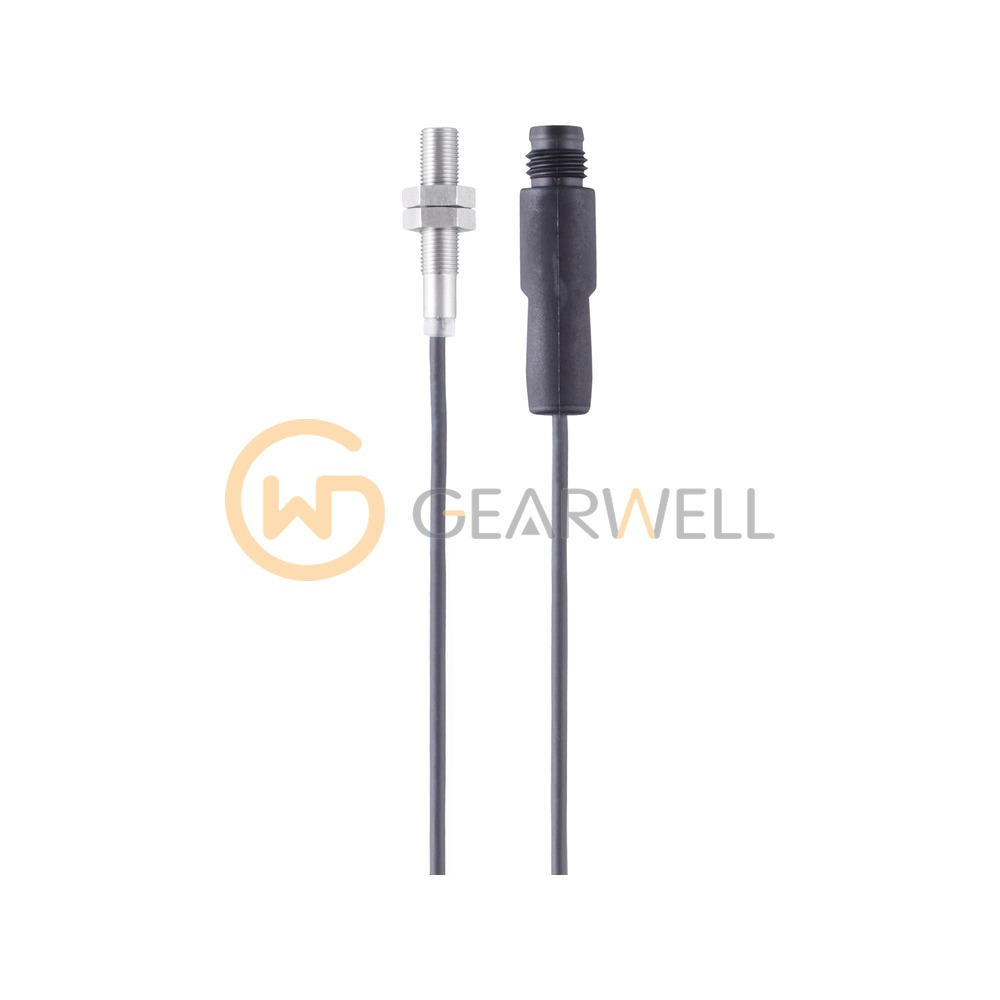

IFM IY5045 IY series Inductive sensor
- Brand
- IFM
- Model
- IY5045
- GEARWELL SKU
- GWP-000012439
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M5 x 0.5 / L = 30 mm
- Protection
- IP 65
- Sensing range
- 0.8 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IY5045 (IYB30,8-BPKG/V2A/0,1M/AS-610) is an inductive proximity sensor in an M5 x 0.5 threaded housing 25 mm long, for flush mounting. Its rated sensing range is 0.8 mm. The real sensing range is 0.8 mm ± 10% and the operating distance on steel is 0…0.65 mm. The PNP switching output is normally open, rated at 100 mA and up to 2000 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a stainless steel (1.4305 / 303) housing with a POM sensing face, connects through an M8 connector (A-coded, 3 contacts, snap-fit locking) and is rated IP65 and IP67 for -25…70 °C ambient. ifm lists it for use where space is restricted. Supplied with two lock nuts.
Technical reference
| Product name | IFM IY5045 IY series Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IY5045 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M5 x 0.5 / L = 30 mm |
| Protection | IP 65 |
| Sensing range | 0.8 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Ambient temperature | -25...70 °C |
| Switching frequency DC | 2000 Hz |
