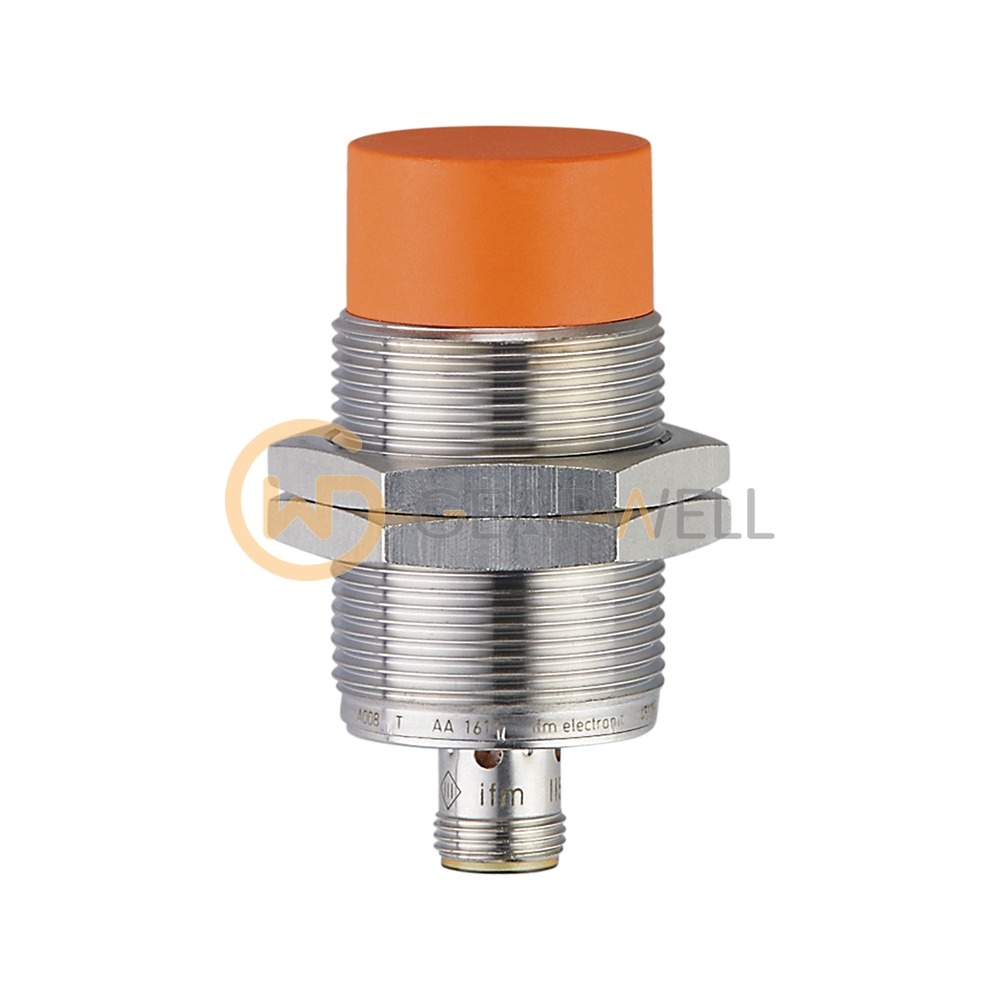

IFM II6913 IIK4015A1PKG/IO/US Inductive Analogue Sensor with IO-Link
- Brand
- IFM
- Model
- II6913
- GEARWELL SKU
- GWP-000009294
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M30 x 1.5 / L = 65 mm
- Measuring range
- 1...15 mm
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN (parameterisable)
- Operating voltage
- 15...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm II6913 (IIK4015A1PKG/IO/US) is an analog inductive distance sensor with IO-Link in an M30 x 1.5 threaded housing 65 mm long, for non-flush mounting. It measures over 1…15 mm and gives a linear 4…20 mA output, with a linearity error and repeatability of ± 1 % of the final value of the measuring range. Through IO-Link it also offers a switch point adjustable over 2.37…13.99 mm on a configurable PNP/NPN, normally open or closed output rated at 100 mA. The sensor has a white-bronze-coated brass housing with an orange PBT sensing face, connects through an M12 connector (A-coded, 4 contacts) and is rated IP65, IP66, IP67, IP68 and IP69K for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM II6913 IIK4015A1PKG/IO/US Inductive Analogue Sensor with IO-Link |
|---|---|
| Brand | IFM |
| Model | II6913 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M30 x 1.5 / L = 65 mm |
| Measuring range | 1...15 mm |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN (parameterisable) |
| Operating voltage | 15...30 DC V |
| Current consumption | < 30 mA |
| Switching frequency DC | 300 Hz |
| Communication interface | IO-Link |
