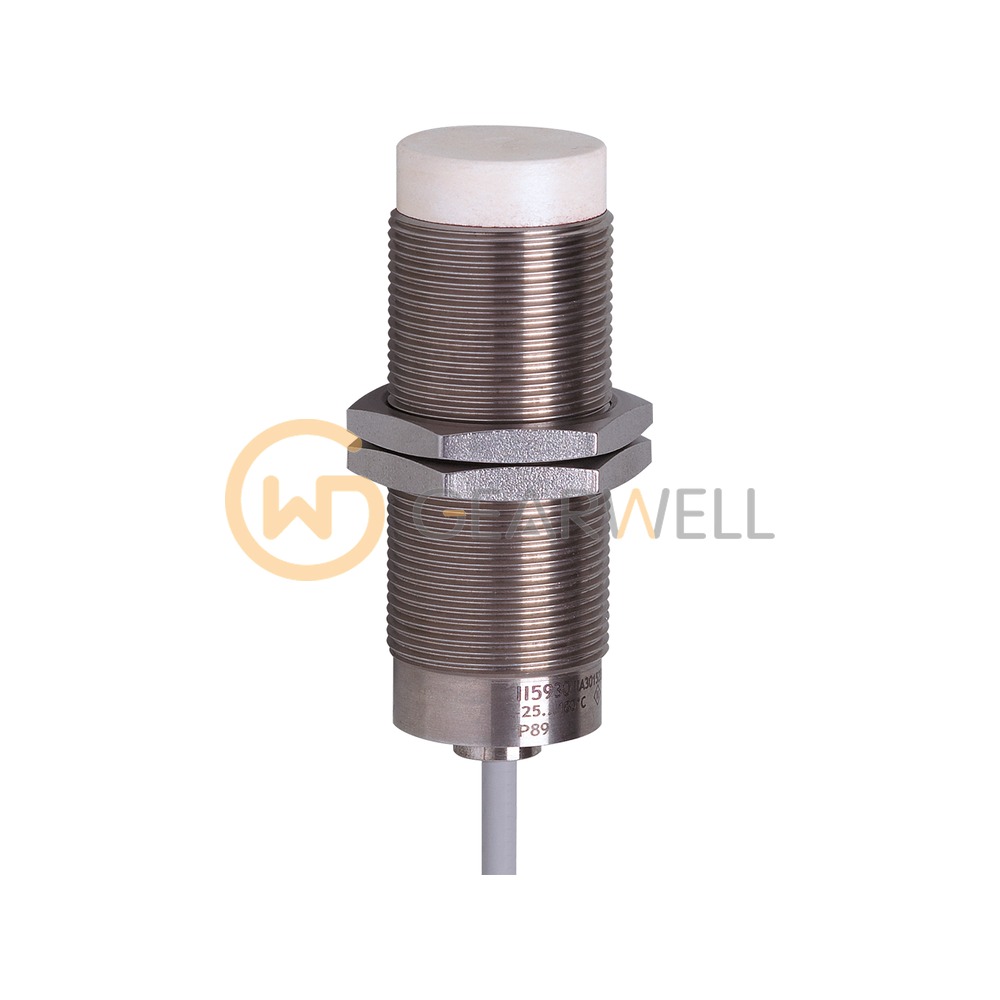

IFM II5930 IIA3015ZBPKG/5M/SH Inductive High-temperature Sensor

Product overview

The ifm II5930 (IIA3015ZBPKG/5M/SH) is an inductive high-temperature proximity sensor in an M30 x 1.5 threaded housing 79 mm long, for non-flush mounting. Its rated sensing range is 15 mm. The operating distance on steel is 0…12.1 mm. The PNP switching output is normally open, rated at 150 mA and up to 200 Hz on 10…35 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.6 for stainless steel, 0.3 for brass, 0.2 for aluminum and 0.1 for copper. The sensor has a stainless steel housing with an LCP sensing face, connects through a 5 m silicone cable with 3 x 0.22 mm² conductors (highly flexible) and is rated IP65 for 0…180 °C ambient. Two lock nuts are included.
