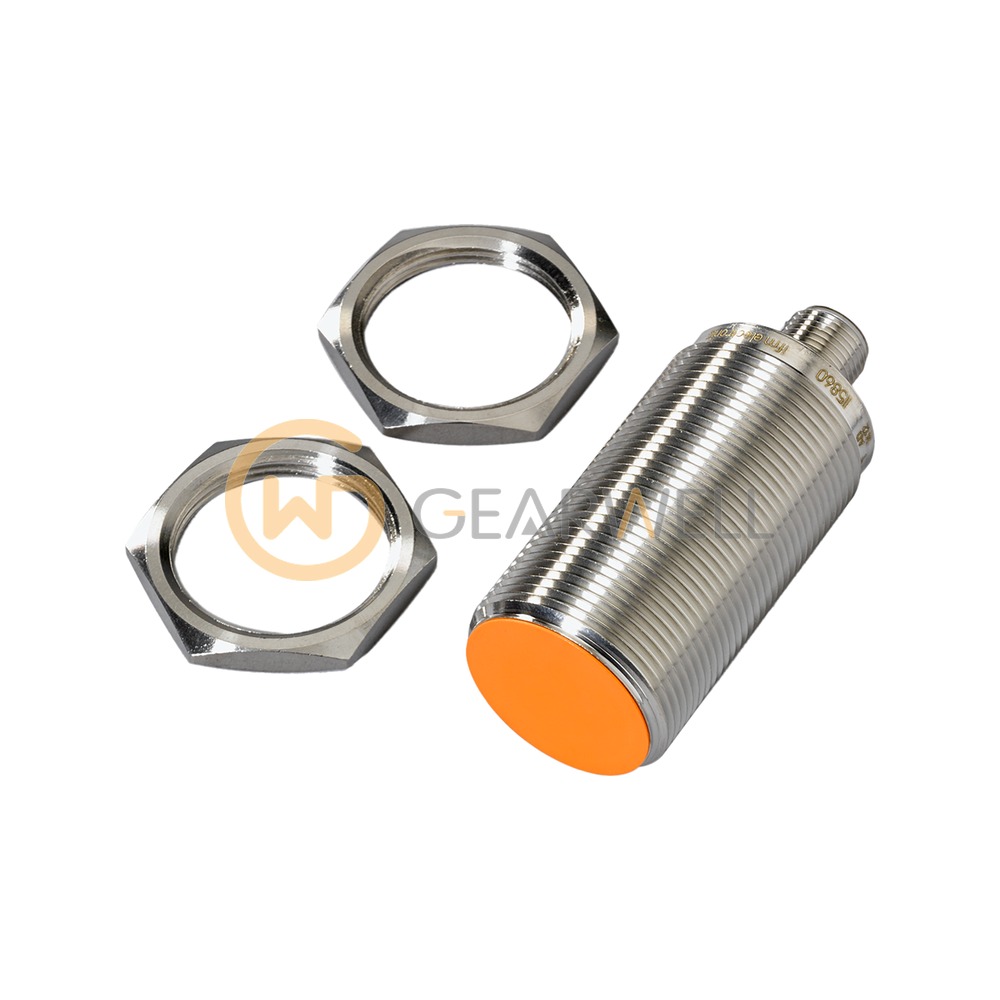

IFM II5916 IIK3010A1PKG/US Inductive Analogue Sensor
- Brand
- IFM
- Model
- II5916
- GEARWELL SKU
- GWP-000009291
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- threaded type
- Materials
- housing: brass white bronze coated; sensing face: PBT
- Dimensions
- M30 x 1.5 / L = 70 mm
- Protection
- IP 67
- Measuring range
- 1...10 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM II5916 IIK3010A1PKG/US Inductive Analogue Sensor |
|---|---|
| Brand | IFM |
| Model | II5916 |
| Category | Proximity & Photoelectric Sensors |
| Housing | threaded type |
| Materials | housing: brass white bronze coated; sensing face: PBT |
| Dimensions | M30 x 1.5 / L = 70 mm |
| Protection | IP 67 |
| Measuring range | 1...10 mm |
| Operating voltage | 15...30 DC V |
| Ambient temperature | -25...80 °C |
| Current consumption | < 20 mA |
