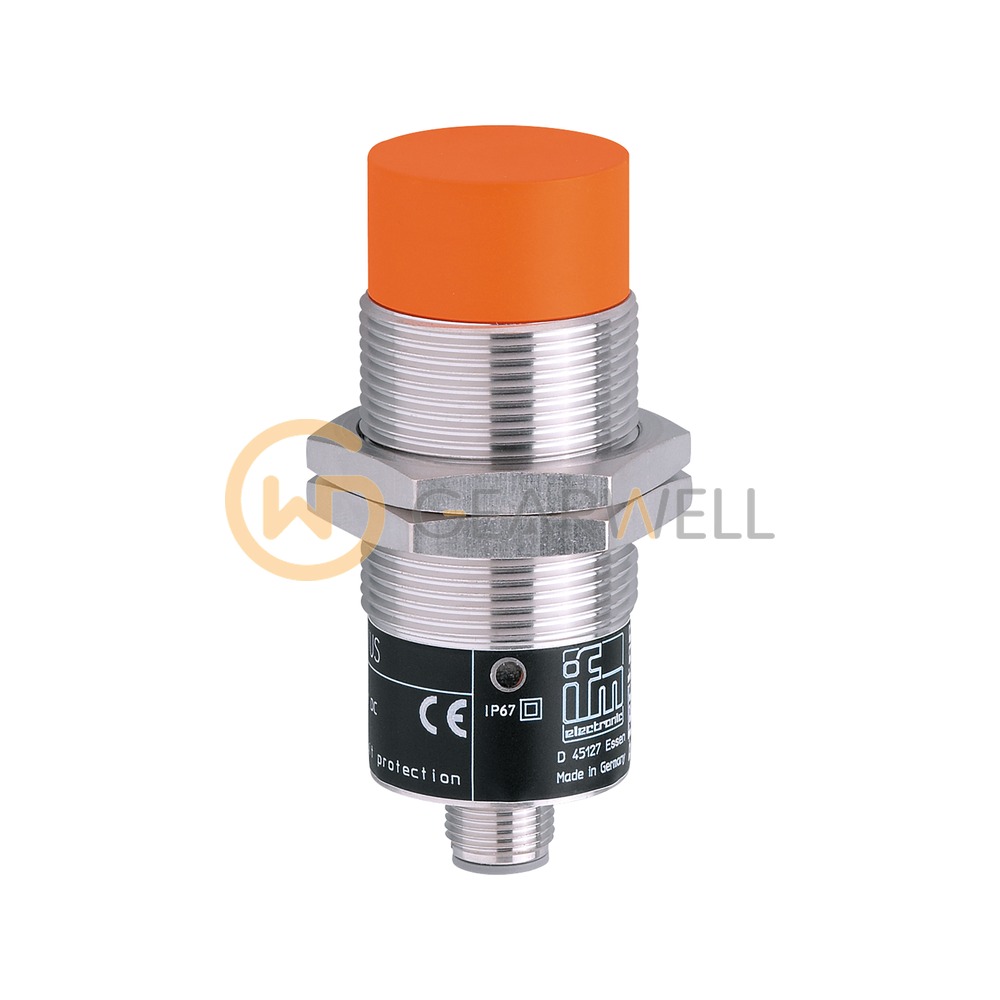

IFM II5492 IIA2015-FRKG/US-100-IRF Inductive Sensor
- Brand
- IFM
- Model
- II5492
- GEARWELL SKU
- GWP-000009278
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M30 x 1.5 / L = 78 mm
- Protection
- IP 67
- Sensing range
- 15 mm
- Output function
- normally open / normally closed (selectable)
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm II5492 (IIA2015-FRKG/US-100-IRF) is an inductive proximity sensor in an M30 x 1.5 threaded housing 78 mm long, for non-flush mounting. Its rated sensing range is 15 mm. The real sensing range is 15 mm ± 10% and the operating distance on steel is 0…12.1 mm. The PNP/NPN switching output is selectable as normally open or normally closed, rated at 400 mA and up to 200 Hz on 10…55 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a white-bronze-coated brass housing with a PBT sensing face, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…80 °C ambient. Two lock nuts are included.
Technical reference
| Product name | IFM II5492 IIA2015-FRKG/US-100-IRF Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | II5492 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M30 x 1.5 / L = 78 mm |
| Protection | IP 67 |
| Sensing range | 15 mm |
| Output function | normally open / normally closed (selectable) |
| Electrical design | PNP/NPN |
| Operating voltage | 10...55 DC V |
| Ambient temperature | -25...80 °C |
| Switching frequency DC | 200 Hz |
