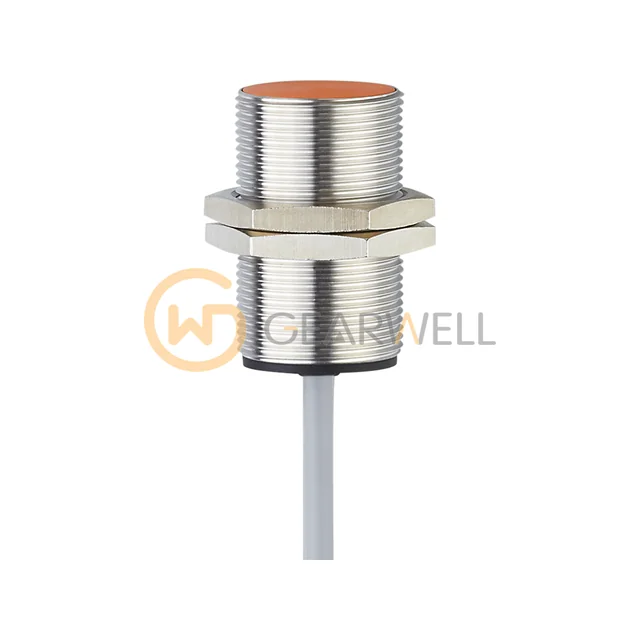

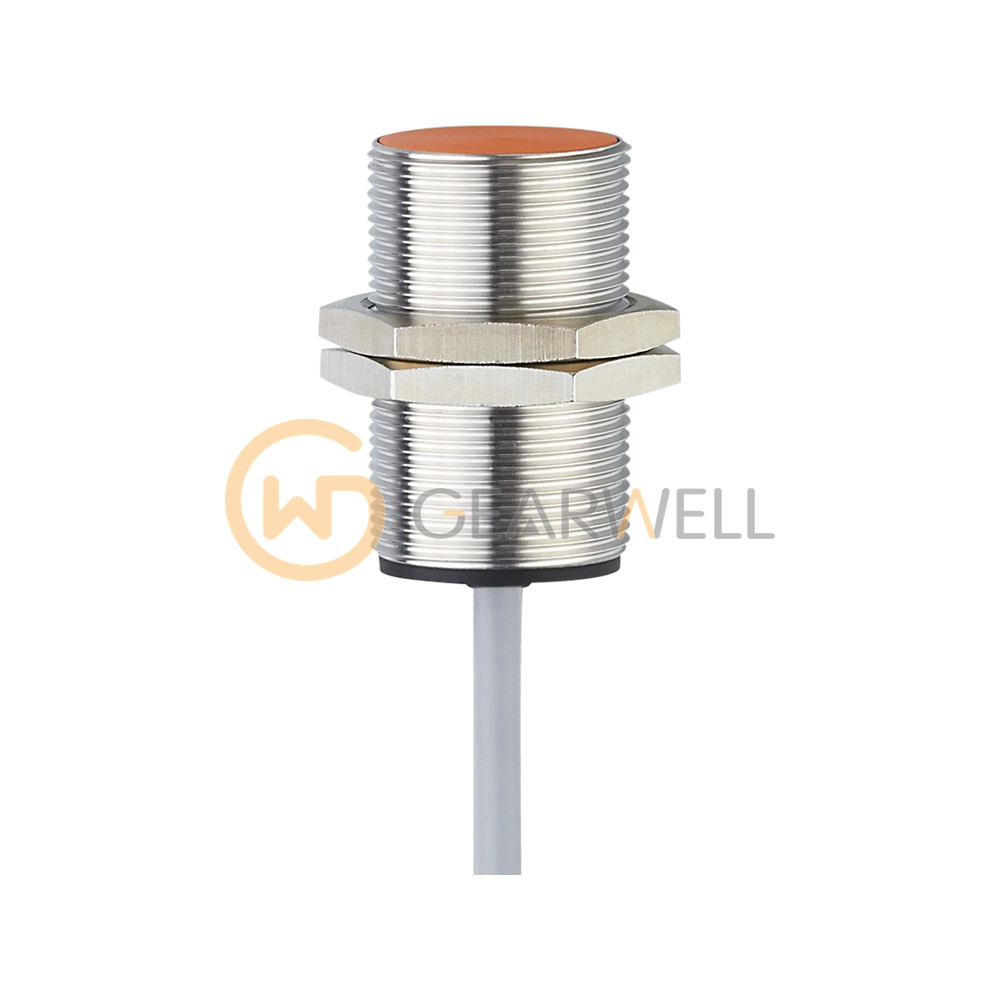

IFM II5697 IIB2010-ARKG/UP Inductive Sensor

Product overview

The ifm II5697 (IIB2010-ARKG/UP) is an inductive proximity sensor in an M30 x 1.5 threaded housing 52 mm long, for flush mounting. Its rated sensing range is 10 mm. The real sensing range is 10 mm ± 10% and the operating distance on steel is 0…8.1 mm. The PNP/NPN switching output is normally open, rated at 150 mA and up to 460 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a nickel-plated brass housing with a PBT sensing face, connects through a 2 m PVC cable with 2 x 0.5 mm² conductors and is rated IP67 for -25…80 °C ambient. Two lock nuts are included.
