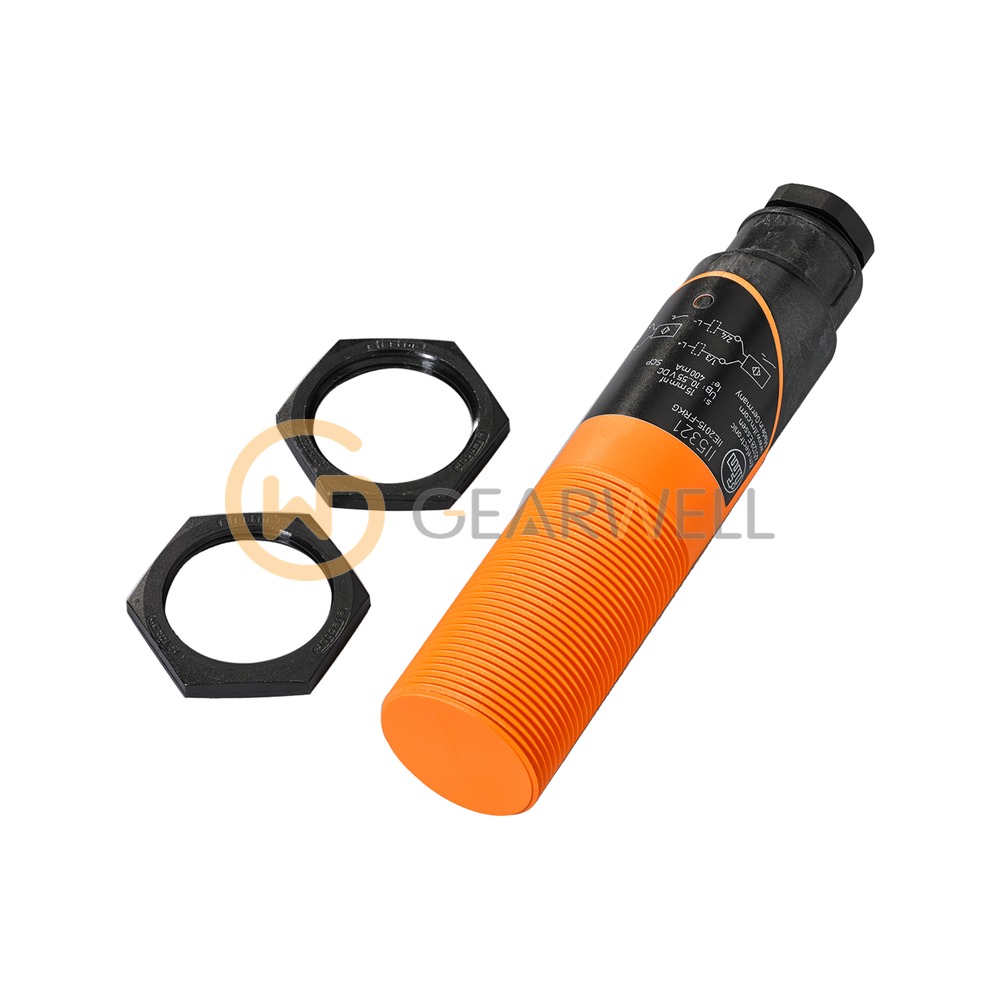

IFM II5320 IIE2010-FRKG Inductive Sensor
- Brand
- IFM
- Model
- II5320
- GEARWELL SKU
- GWP-000009274
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M30 x 1.5 / L = 125 mm
- Protection
- IP 65
- Sensing range
- 10 mm
- Output function
- normally open / normally closed (selectable)
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm II5320 (IIE2010-FRKG) is an inductive proximity sensor in an M30 x 1.5 threaded housing 125 mm long, for flush mounting. Its rated sensing range is 10 mm. The real sensing range is 10 mm ± 10% and the operating distance on steel is 0…8.1 mm. The PNP/NPN switching output is selectable as normally open or normally closed, rated at 400 mA and up to 450 Hz on 10…55 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a PBT housing, connects through terminals for conductors up to 2.5 mm² in a terminal chamber with an M20 x 1.5 cable gland for cable Ø 7…13 mm and is rated IP65 for -25…80 °C ambient. Two lock nuts are included.
Technical reference
| Product name | IFM II5320 IIE2010-FRKG Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | II5320 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M30 x 1.5 / L = 125 mm |
| Protection | IP 65 |
| Sensing range | 10 mm |
| Output function | normally open / normally closed (selectable) |
| Electrical design | PNP/NPN |
| Operating voltage | 10...55 DC V |
| Ambient temperature | -25...80 °C |
| Switching frequency DC | 450 Hz |
