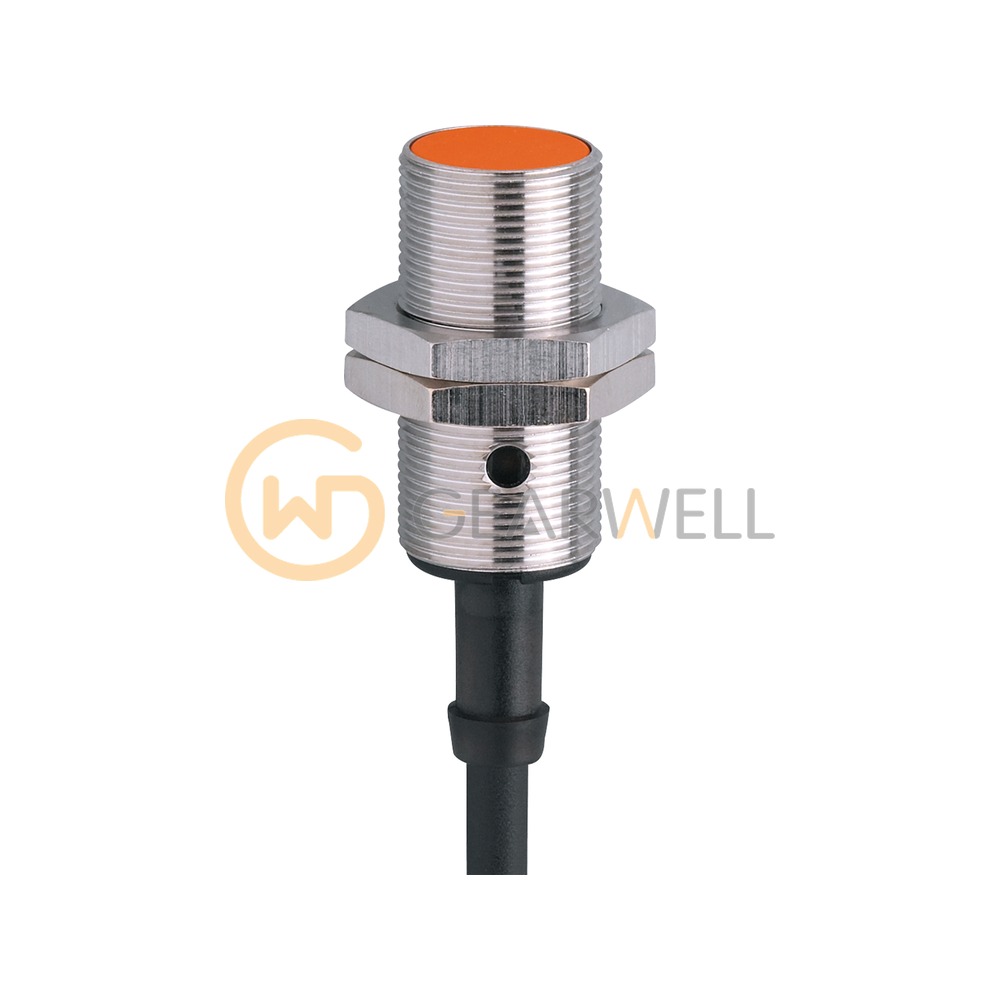

IFM IG5221 IGB3005-BPKG Inductive Sensor

Product overview

The ifm IG5221 (IGB3005-BPKG) is an inductive proximity sensor in an M18 x 1 threaded housing 38 mm long, for flush mounting. Its rated sensing range is 5 mm. The real sensing range is 5 mm ± 10% and the operating distance on steel is 0…4.05 mm. The PNP switching output is normally open, rated at 125; (150 (…50 °C)) mA and up to 500 Hz on 18…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a white-bronze-coated brass housing with a CO-PC sensing face, connects through a 2 m PVC cable with 3 x 0.5 mm² conductors and is rated IP67 for -25…80 °C ambient. Two lock nuts are included.
