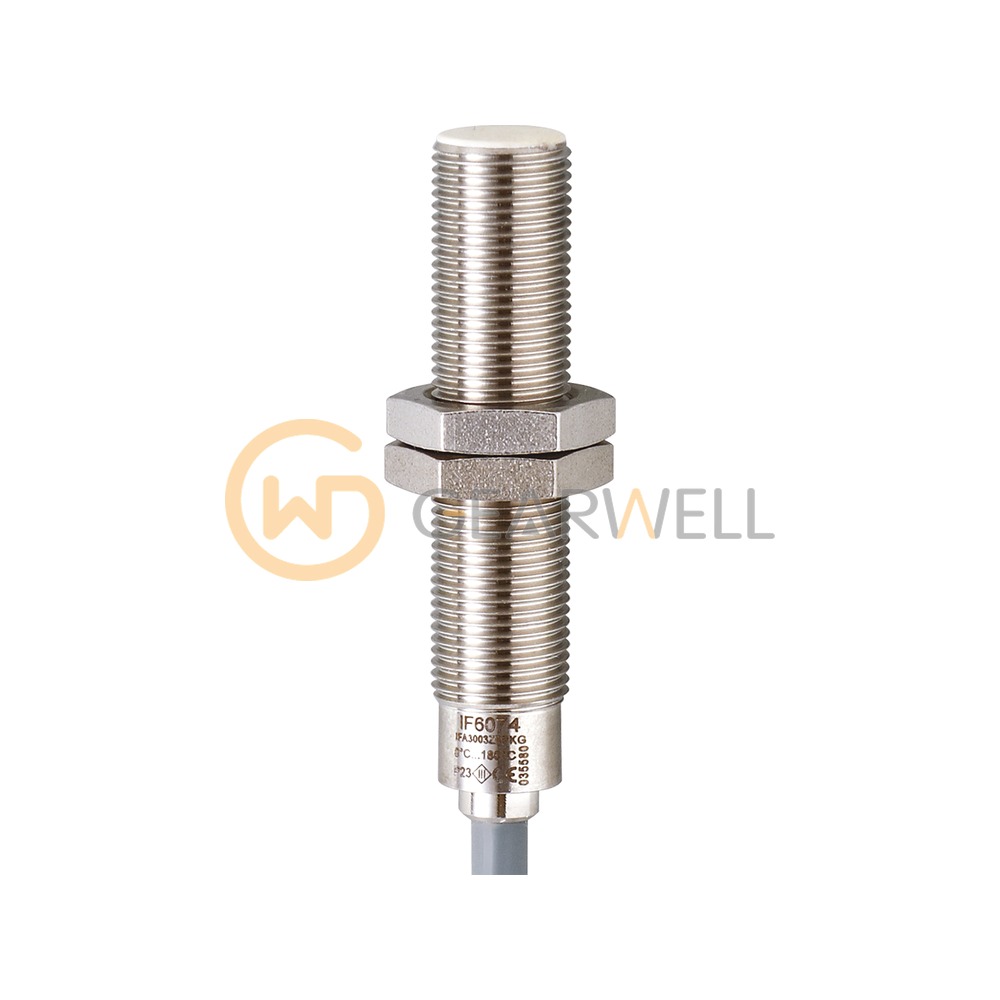

IFM IF6074 IFA3003ZBPKG/5M/SH Inductive High-temperature Sensor
- Brand
- IFM
- Model
- IF6074
- GEARWELL SKU
- GWP-000008935
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 56 mm
- Protection
- IP 65
- Sensing range
- 3 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IF6074 (IFA3003ZBPKG/5M/SH) is an inductive high-temperature proximity sensor in an M12 x 1 threaded housing 56 mm long, for flush mounting. Its rated sensing range is 3 mm. The operating distance on steel is 0…2.4 mm. The PNP switching output is normally open, rated at 120 mA and up to 500 Hz on 10…35 V DC, with reverse polarity. On other metals the distance is reduced by ifm's correction factors: 0.6 for stainless steel, 0.3 for brass, 0.2 for aluminum and 0.1 for copper. The sensor has a stainless steel threaded sleeve with an LCP sensing face, connects through a 5 m silicone cable with 3 x 0.22 mm² conductors (highly flexible) and is rated IP65 for 0…150 °C ambient. Two lock nuts are included.
Technical reference
| Product name | IFM IF6074 IFA3003ZBPKG/5M/SH Inductive High-temperature Sensor |
|---|---|
| Brand | IFM |
| Model | IF6074 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 56 mm |
| Protection | IP 65 |
| Sensing range | 3 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...35 DC V |
| Current consumption | < 15 mA |
| Switching frequency DC | 500 Hz |
