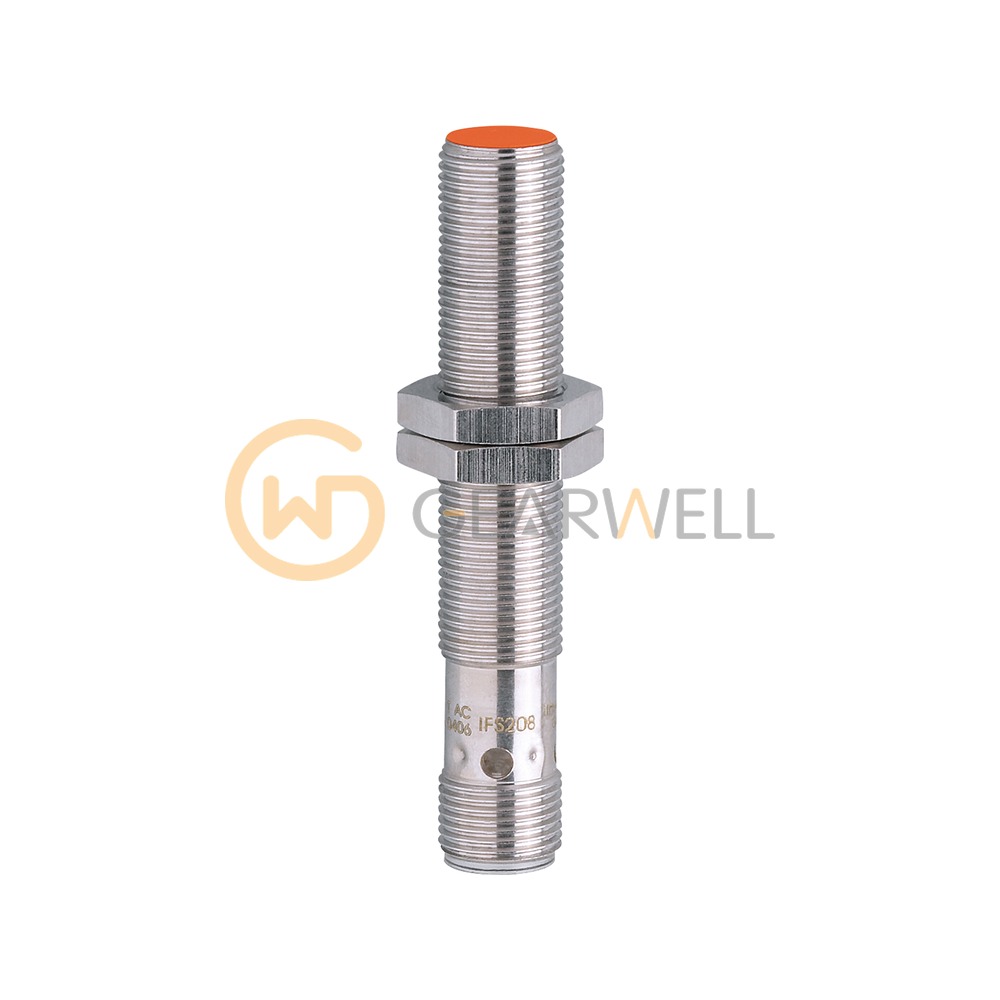

IFM IF6029 IFK4002A2PKG/IO/US Inductive Analogue Sensor with IO-Link
- Brand
- IFM
- Model
- IF6029
- GEARWELL SKU
- GWP-000008932
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 70 mm
- Measuring range
- 0.2...2 mm
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN (parameterisable)
- Operating voltage
- 15...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IF6029 (IFK4002A2PKG/IO/US) is an analog inductive distance sensor with IO-Link in an M12 x 1 threaded housing 70 mm long, for flush mounting. It measures over 0.2…2 mm and gives a linear 0…10 V output, with a linearity error and repeatability of ± 1 % of the final value of the measuring range. Through IO-Link it also offers a switch point adjustable over 0.38…1.87 mm on a configurable PNP/NPN, normally open or closed output rated at 100 mA. The sensor has a white-bronze-coated brass housing with an orange PBT sensing face, connects through an M12 connector (A-coded, 4 contacts) and is rated IP65, IP66, IP67, IP68 and IP69K for -25…80 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IF6029 IFK4002A2PKG/IO/US Inductive Analogue Sensor with IO-Link |
|---|---|
| Brand | IFM |
| Model | IF6029 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 70 mm |
| Measuring range | 0.2...2 mm |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN (parameterisable) |
| Operating voltage | 15...30 DC V |
| Current consumption | < 30 mA |
| Switching frequency DC | 200 Hz |
| Communication interface | IO-Link |
