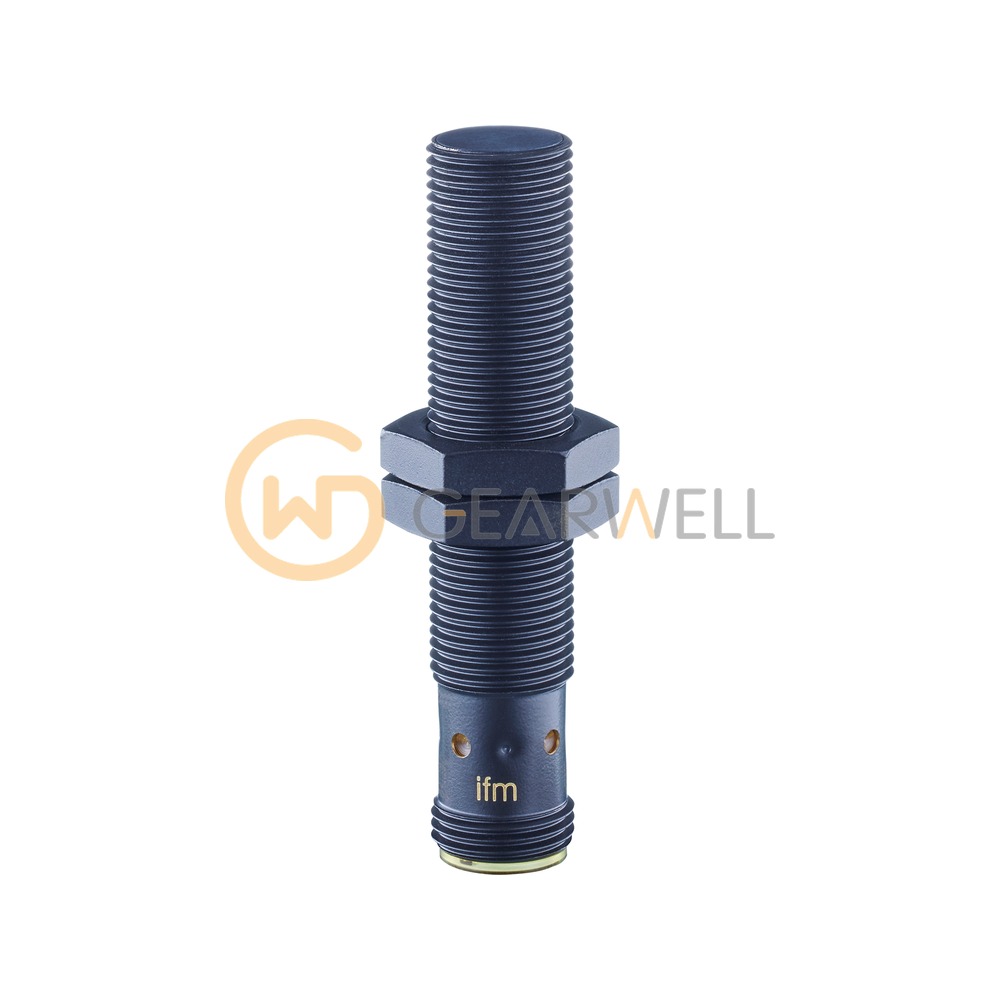

IFM IF5934 IFK2004BFRKG/SC/2LED/US-104 Inductive Sensor
- Brand
- IFM
- Model
- IF5934
- GEARWELL SKU
- GWP-000008927
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 60 mm
- Protection
- IP 68 ("Coolant")
- Sensing range
- 4 mm
- Output function
- normally open / normally closed (selectable)
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IF5934 (IFK2004BFRKG/SC/2LED/US-104) is an inductive proximity sensor in an M12 x 1 threaded housing 60 mm long, for flush mounting. Its rated sensing range is 4 mm, which ifm classes as an increased sensing range. The operating distance on steel is 0…3.25 mm. The PNP/NPN switching output is selectable as normally open or normally closed, rated at 100 mA and up to 700 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.5 for aluminum and 0.4 for copper. The sensor has a weld-coated brass housing with a black LCP sensing face, connects through an M12 connector (A-coded, 2 gold-plated contacts) and is rated IP68 for -25…70 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IF5934 IFK2004BFRKG/SC/2LED/US-104 Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IF5934 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 60 mm |
| Protection | IP 68 ("Coolant") |
| Sensing range | 4 mm |
| Output function | normally open / normally closed (selectable) |
| Electrical design | PNP/NPN |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...70 °C |
| Switching frequency DC | 700 Hz |
