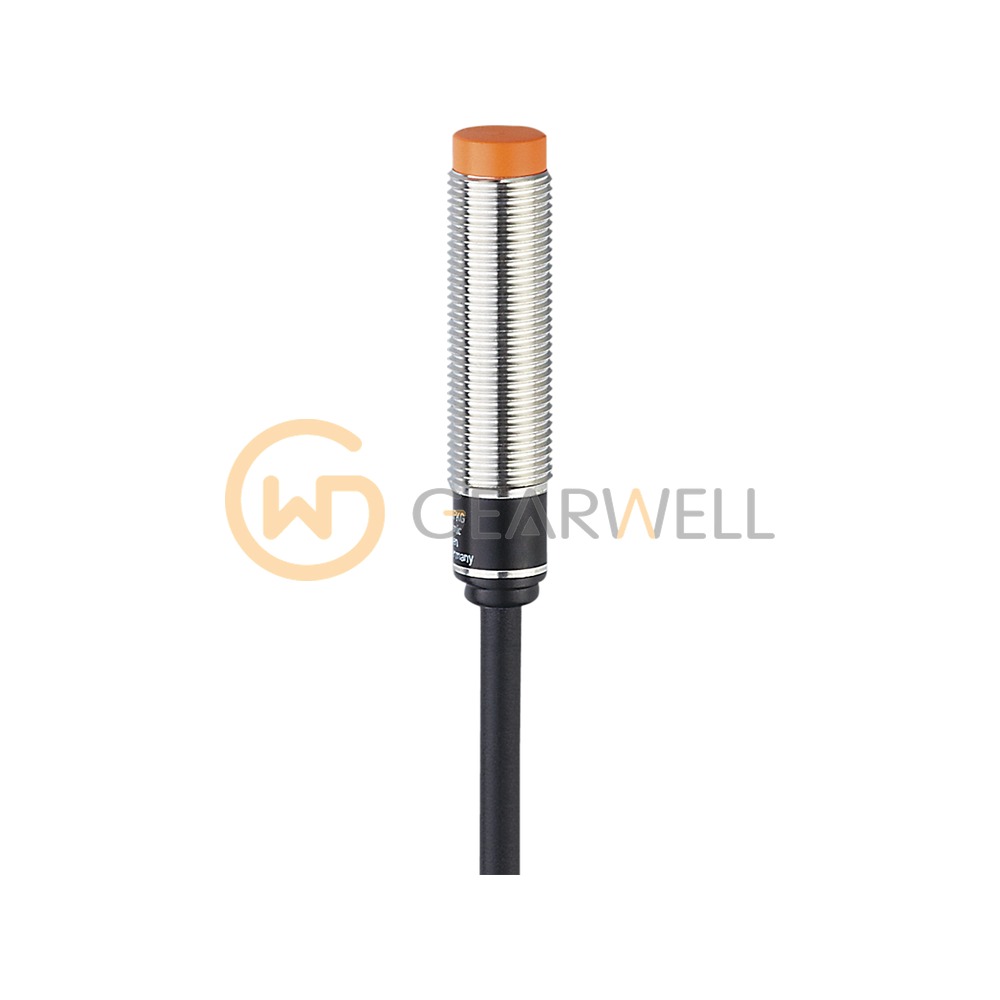

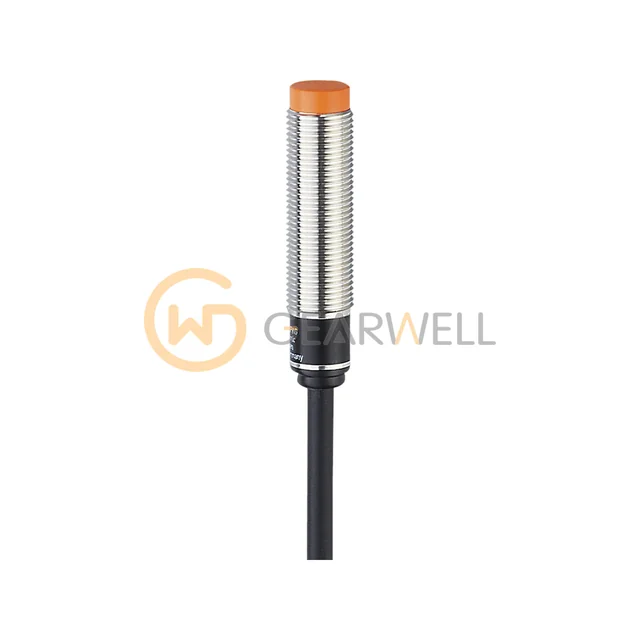

IFM IF5933 IFK3007-BPKG/6M/BH Inductive Sensor

Product overview

The ifm IF5933 (IFK3007-BPKG/6M/BH) is an inductive proximity sensor in an M12 x 1 threaded housing 52 mm long, for non-flush mounting. Its rated sensing range is 7 mm, which ifm classes as an increased sensing range. The real sensing range is 7 mm ± 10% and the operating distance on steel is 0…5.7 mm. The PNP switching output is normally open, rated at 250 mA and up to 800 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a nickel-plated brass housing with a PC sensing face, connects through a 6 m PUR, Halogen-free cable with 3 x 0.34 mm² conductors and is rated IP67 for -25…70 °C ambient. Two lock nuts are included.
