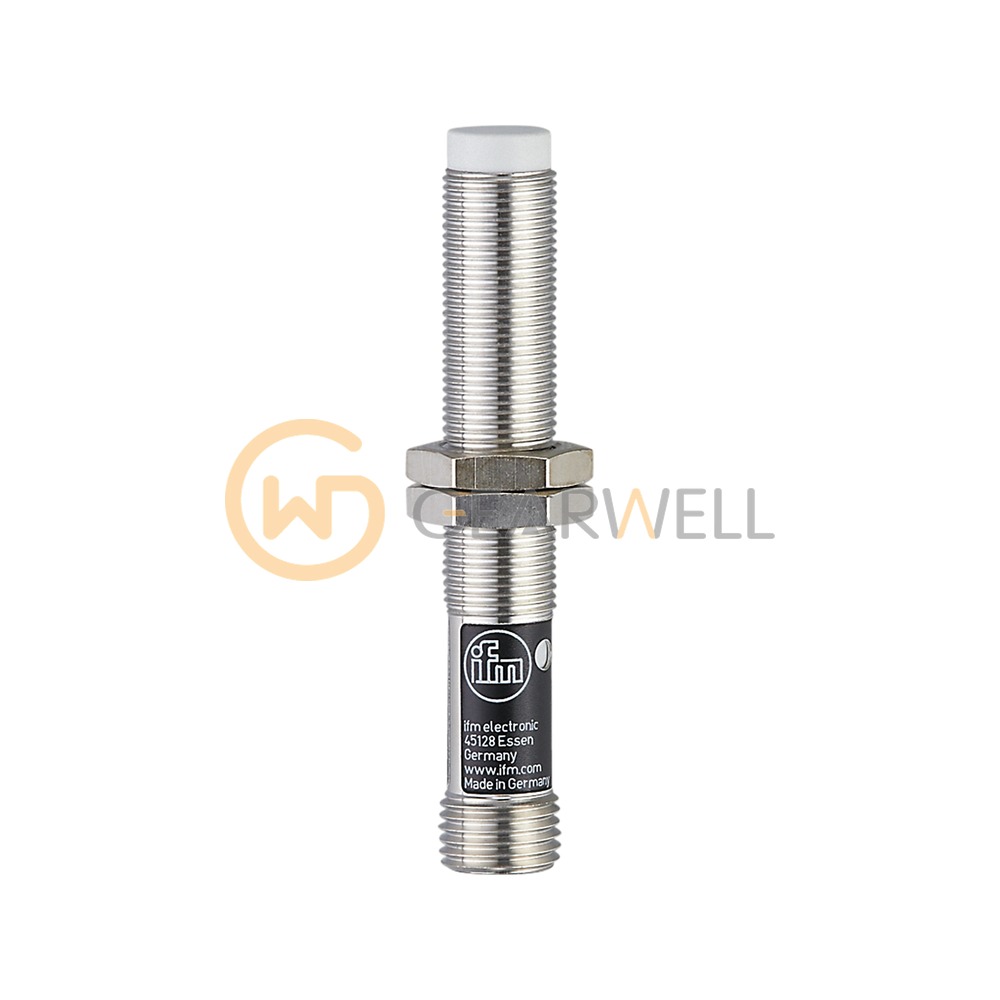

IFM IF0287 IFA2004-BBOW/SL/LS-100AK Inductive Sensor
- Brand
- IFM
- Model
- IF0287
- GEARWELL SKU
- GWP-000008775
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- threaded type
- Materials
- housing: brass white bronze coated; sensing face: PBT natural; Nuts: brass white bronze coated; LED window: PBT natural
- Dimensions
- M12 x 1 / L = 77 mm
- Protection
- IP 67
- Sensing range
- 4 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IF0287 (IFA2004-BBOW/SL/LS-100AK) is an inductive proximity sensor in an M12 x 1 threaded housing 77 mm long, for non-flush mounting. Its rated sensing range is 4 mm. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.24 mm. It is a normally closed sensor for 20…250 V AC, with an AC load current of 200 mA (250 mA up to 50 °C) and a switching frequency of 25 Hz on AC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with a natural PBT sensing face, connects through a 1/2-inch connector (C-coded, 3 contacts) and is rated IP67 for -25…80 °C ambient. Two lock nuts are included.
Technical reference
| Product name | IFM IF0287 IFA2004-BBOW/SL/LS-100AK Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IF0287 |
| Category | Proximity & Photoelectric Sensors |
| Housing | threaded type |
| Materials | housing: brass white bronze coated; sensing face: PBT natural; Nuts: brass white bronze coated; LED window: PBT natural |
| Dimensions | M12 x 1 / L = 77 mm |
| Protection | IP 67 |
| Sensing range | 4 mm |
| Output function | normally closed |
| Operating voltage | 20...250 AC V |
| Ambient temperature | -25...80 °C |
