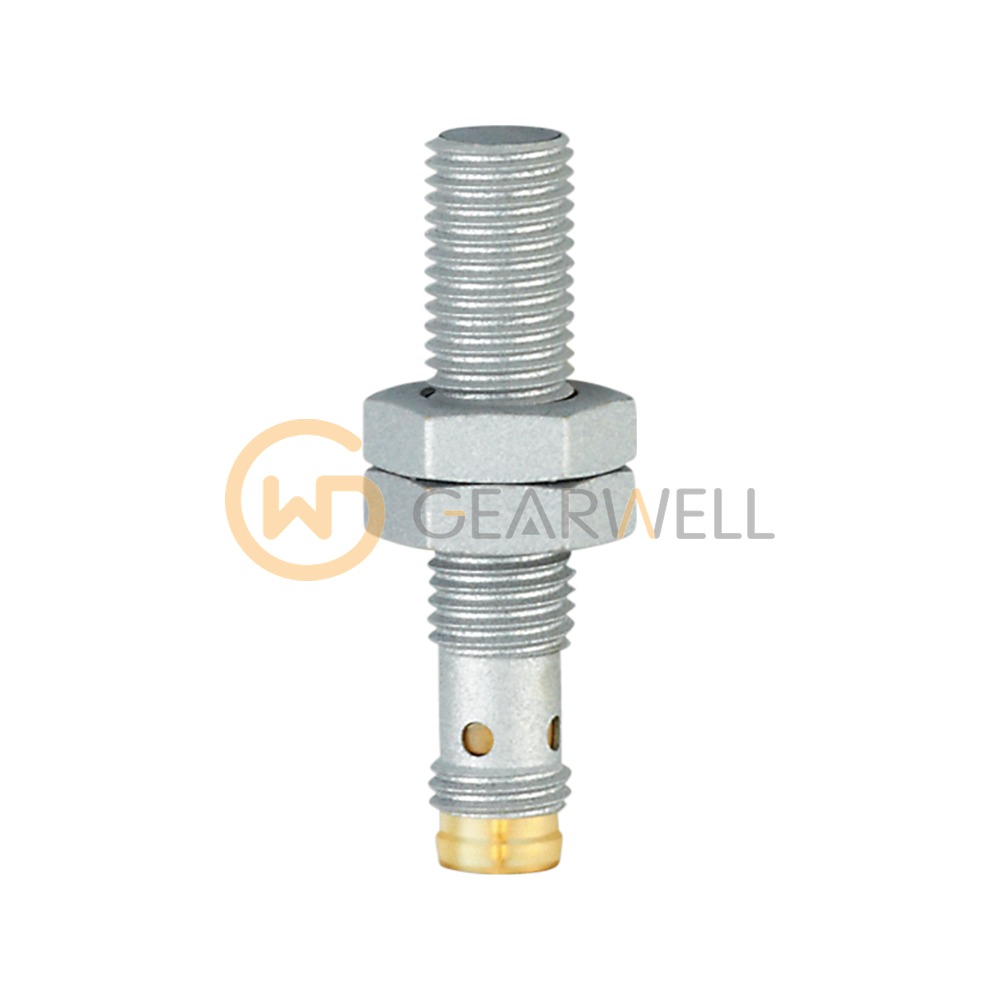

IFM IEW200 Inductive sensors Inductive sensor
- Brand
- IFM
- Model
- IEW200
- GEARWELL SKU
- GWP-000012276
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Threaded type
- Dimensions
- M8 x 1 / L = 40 mm
- Protection
- IP 65; IP 66; IP 67; IP 68; IP 69K; (with ifm socket duly screwed on)
- Sensing range
- 3 mm
- Output function
- normally open
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IEW200 (IEB3003BBPKG/V4A/SC/K1/AS) is an inductive proximity sensor in an M8 x 1 threaded housing 40 mm long, for flush mounting. Its rated sensing range is 3 mm, which ifm classes as an increased sensing range. The real sensing range is 3 mm ± 10% and the operating distance on steel is 0…2.43 mm. The PNP switching output is normally open, rated at 100 mA and up to 2000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. Its correction factor is 1 for steel, stainless steel, brass, aluminum and copper, so these metals are detected at the same distance. The sensor has a weld-coated stainless steel (1.4404 / 316L) housing with a black LCP sensing face, connects through an M8 connector (A-coded, 3 contacts) and is rated IP65, IP66, IP67, IP68 and IP69K for -40…85 °C ambient. It is immune to magnetic fields and it has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IEW200 Inductive sensors Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IEW200 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Threaded type |
| Dimensions | M8 x 1 / L = 40 mm |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K; (with ifm socket duly screwed on) |
| Sensing range | 3 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Switching frequency DC | 2000 Hz |
