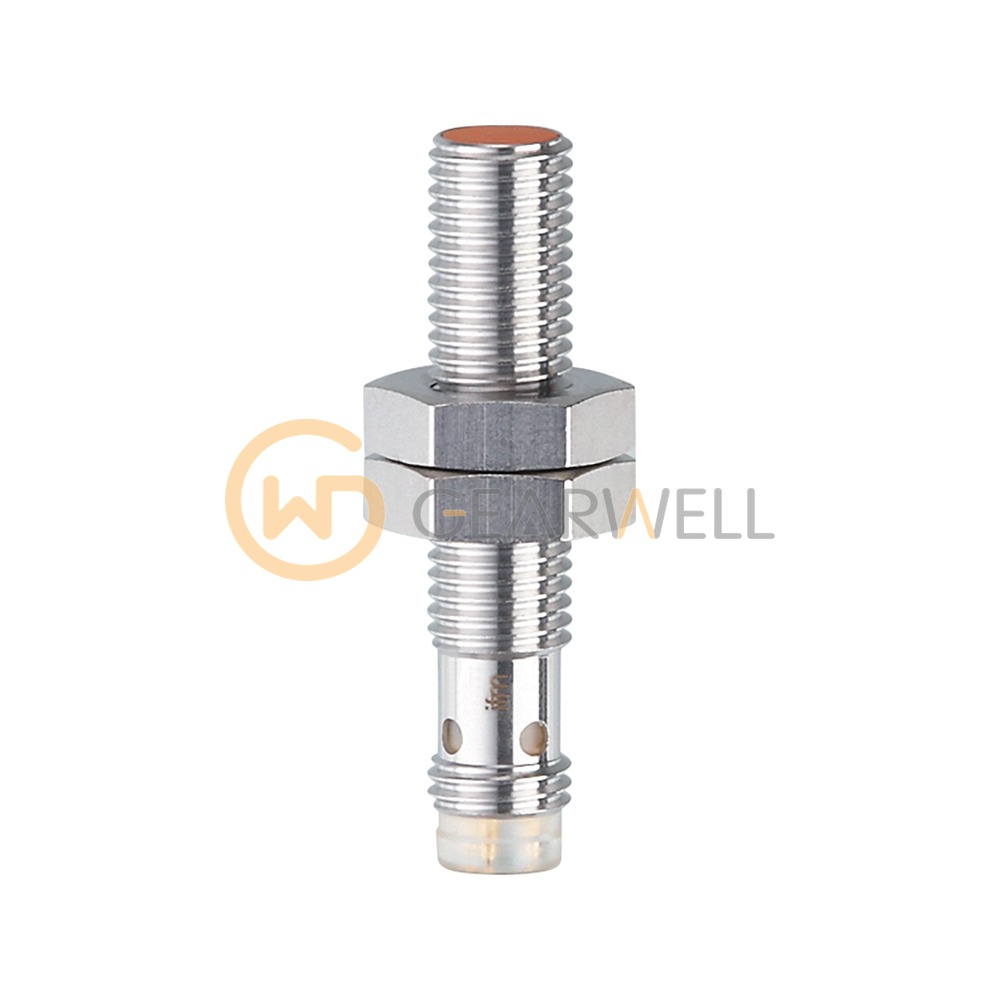

IFM IE5349 IEBC003BBSKG/AS Inductive Sensor
- Brand
- IFM
- Model
- IE5349
- GEARWELL SKU
- GWP-000008680
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M8 x 1 / L = 40 mm
- Protection
- IP 65; IP 67 (with ifm socket duly screwed on)
- Sensing range
- 3 mm
- Output function
- normally closed
- Electrical design
- PNP/NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IE5349 (IEBC003BBSKG/AS) is an inductive proximity sensor in an M8 x 1 threaded housing 40 mm long, for flush mounting. Its rated sensing range is 3 mm. The real sensing range is 3 mm ± 10% and the operating distance on steel is 0…2.4 mm. The PNP/NPN switching output is normally closed, rated at 100 mA and up to 800 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with an orange LCP sensing face, connects through an M8 connector (A-coded, 3 contacts) and is rated IP65 and IP67 for 0…60 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IE5349 IEBC003BBSKG/AS Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IE5349 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M8 x 1 / L = 40 mm |
| Protection | IP 65; IP 67 (with ifm socket duly screwed on) |
| Sensing range | 3 mm |
| Output function | normally closed |
| Electrical design | PNP/NPN |
| Operating voltage | 10...30 DC V |
| Ambient temperature | 0...60 °C |
| Switching frequency DC | 800 Hz |
