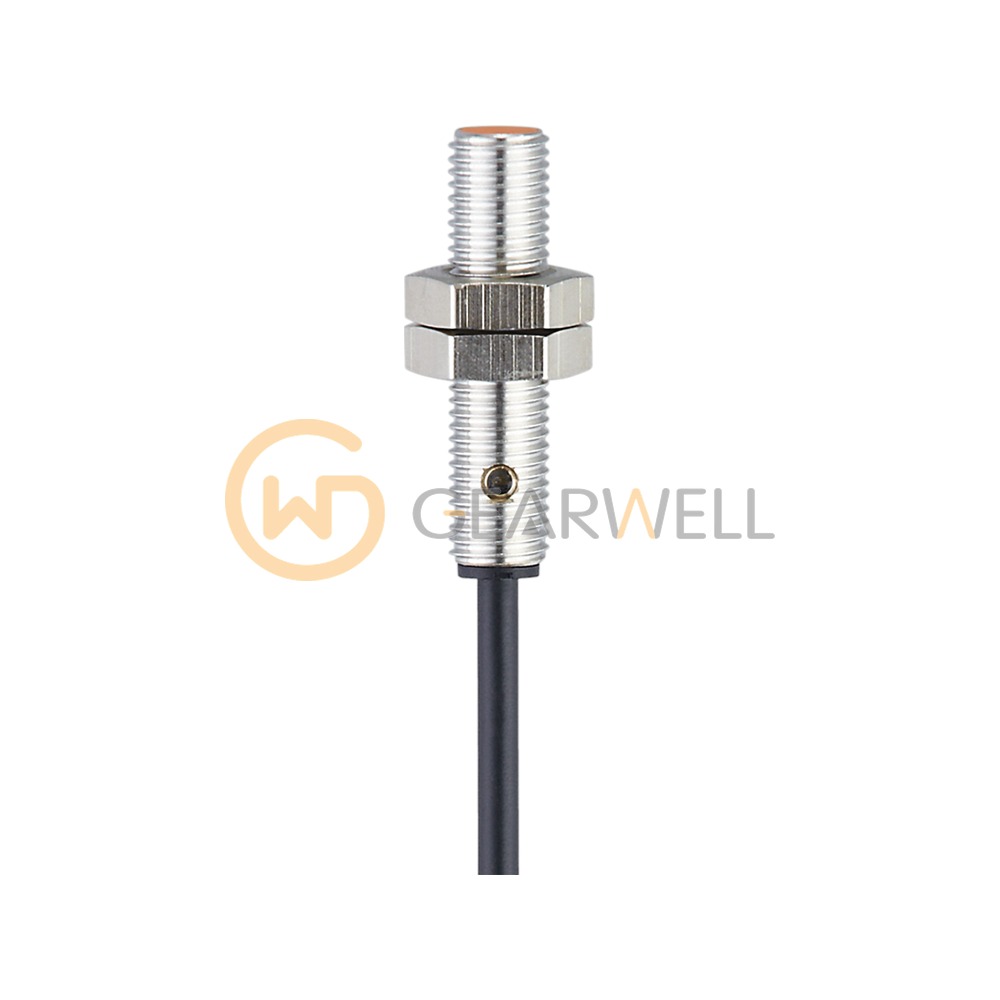

IFM IE5313 IEB3002BANKG/PH Inductive Sensor

Product overview

The ifm IE5313 (IEB3002BANKG/PH) is an inductive proximity sensor in an M8 x 1 threaded housing 37 mm long, for flush mounting. Its rated sensing range is 2 mm. The real sensing range is 2 mm ± 10% and the operating distance on steel is 0…1.6 mm. The NPN switching output is normally open, rated at 200 mA and up to 800 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with an LCP sensing face, connects through a 2 m PUR cable with 3 x 0.14 mm² conductors and is rated IP67 for -25…80 °C ambient. Two lock nuts are included.
