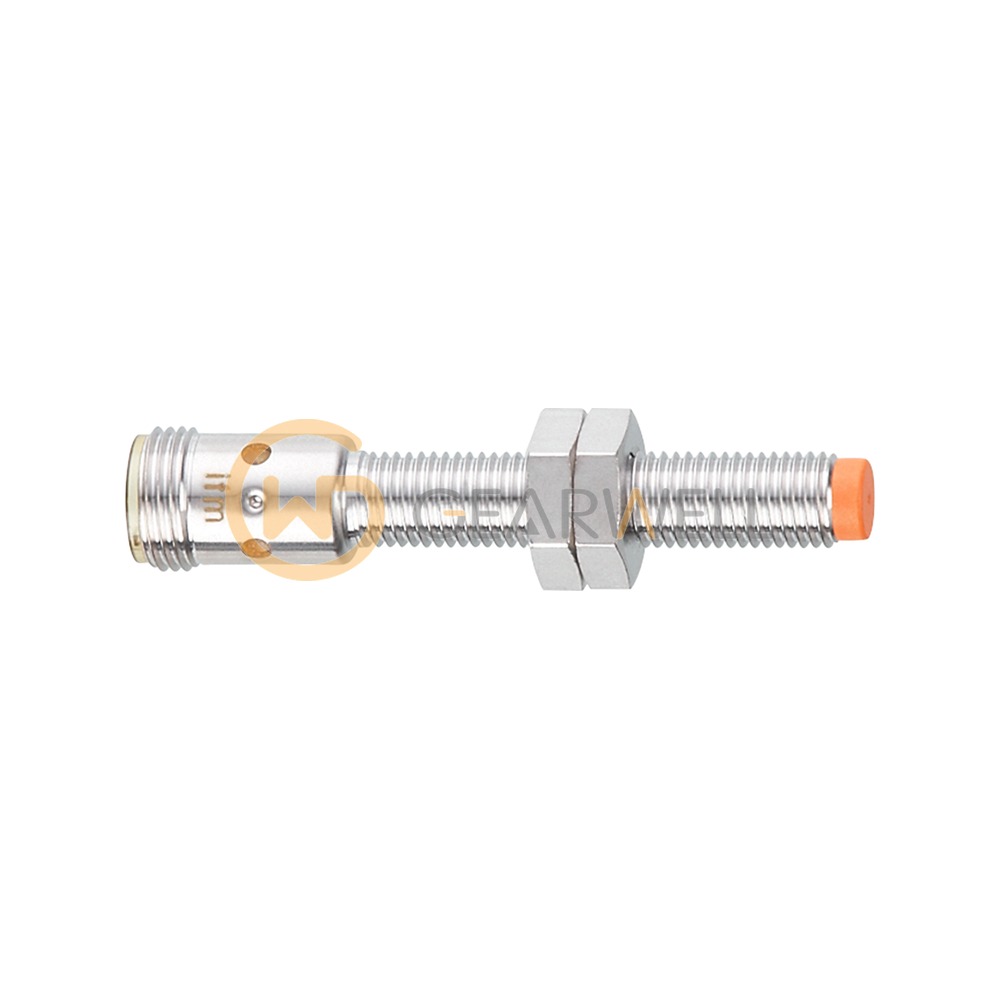

IFM IE5288 IEK3004-BPKG/US-104 Inductive Sensor

Product overview

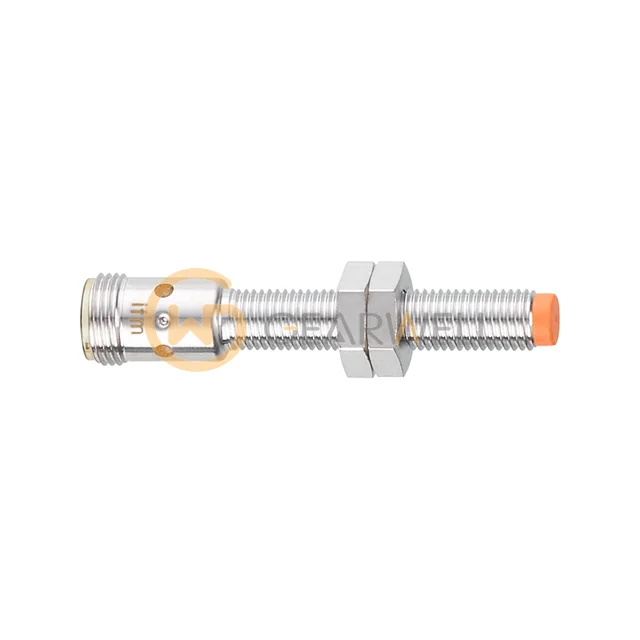

The ifm IE5288 (IEK3004-BPKG/US-104) is an inductive proximity sensor in an M8 x 1 threaded housing 60 mm long, for non-flush mounting. Its rated sensing range is 4 mm, which ifm classes as an increased sensing range. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.25 mm. The PNP switching output is normally open, rated at 100 mA and up to 300 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.5 for aluminum and 0.4 for copper. The sensor has a white-bronze-coated brass housing with a black LCP sensing face, connects through an M12 connector (A-coded, 3 contacts) and is rated IP67 for -25…70 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
