IFM EVC074 Connecting Cable with Angled Female Socket
- Brand
- IFM
- Model
- EVC074
- GEARWELL SKU
- GWP-000001493
- Category
- Terminals, Cables & Connectors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

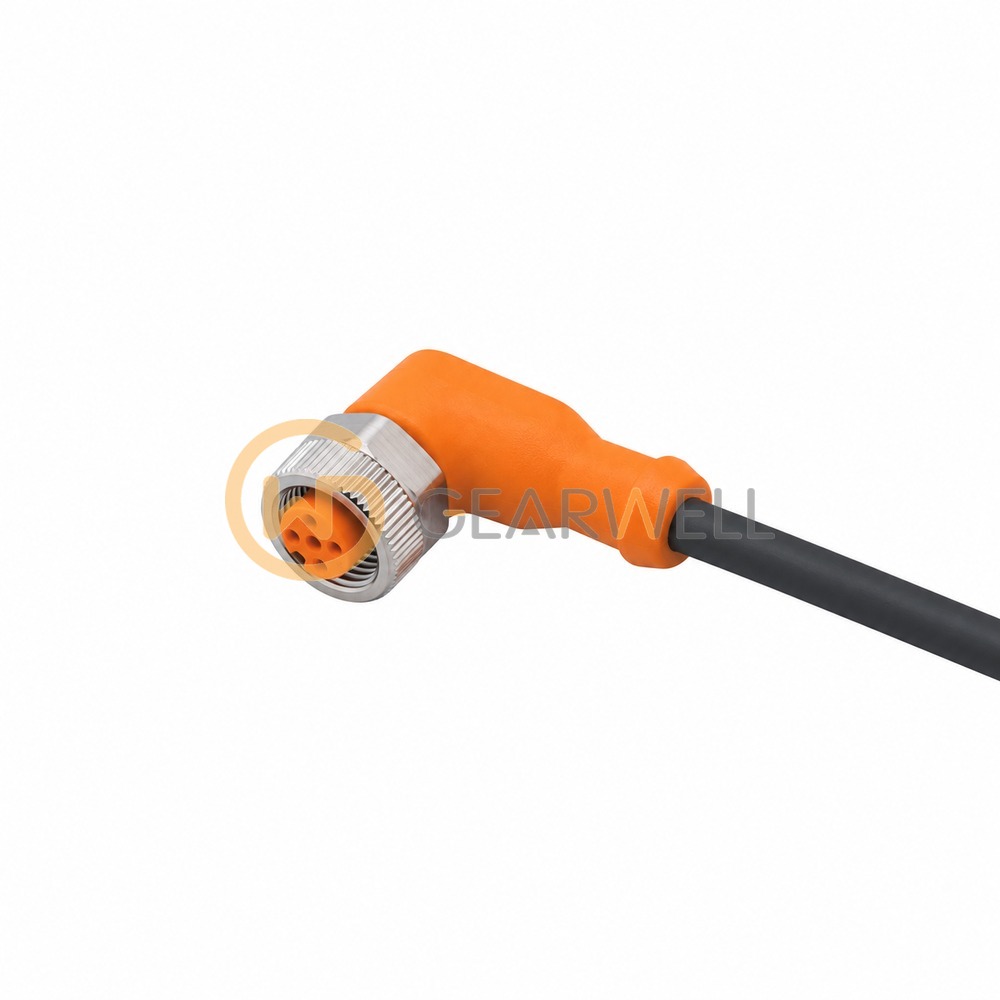

The ifm EVC074 (ADOAH050MSS0005H05) is a female cordset with an angled M12 connector (A-coded, 5 gold-plated contacts) for industrial applications and use with oils and coolants; it is halogen-free, free from silicone and suitable for drag chains. The 5 m black PUR cable is Ø 4.6 mm with 5 x 0.34 mm² conductors. It is rated for below 60 V AC/DC and 4 A in total (3 A under UL), has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…90 °C ambient.
Technical reference
| Product name | IFM EVC074 Connecting Cable with Angled Female Socket |
|---|---|
| Brand | IFM |
| Model | EVC074 |
| Category | Terminals, Cables & Connectors |
