IFM EVC100 Connecting Cable
- Brand
- IFM
- Model
- EVC100
- GEARWELL SKU
- GWP-000001357
- Category
- Terminals, Cables & Connectors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

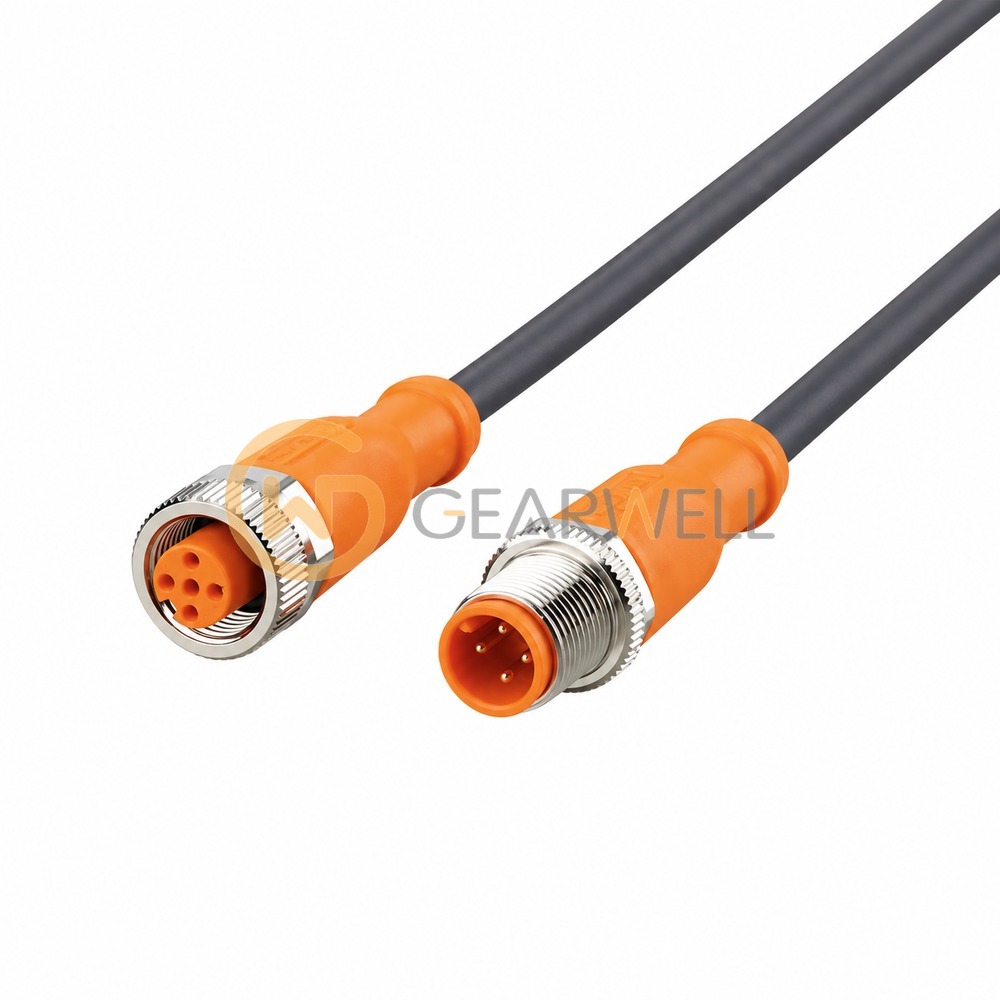

The ifm EVC100 (VDOGH040MSS0003H04STGH040MSS) is an M12 connection cable (A-coded, 4 gold-plated contacts) for industrial applications and use with oils and coolants; it is halogen-free, free from silicone and suitable for drag chains. The 3 m black PUR cable is Ø 4.3 mm with 4 x 0.34 mm² conductors. It is rated for below 250 V AC / below 300 V DC and 4 A in total, has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…90 °C ambient.
Technical reference
| Product name | IFM EVC100 Connecting Cable |
|---|---|
| Brand | IFM |
| Model | EVC100 |
| Category | Terminals, Cables & Connectors |
