IFM EVC018 VDOAH040MSS0002H04STGH040MSS Connection Cable
- Brand
- IFM
- Model
- EVC018
- GEARWELL SKU
- GWP-000009570
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 88.5 g
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Application
- Industrial applications / factory automation; Use in machine tools, coolants and lubricants
- Special feature
- Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
- Operating voltage
- < 250 AC / < 300 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

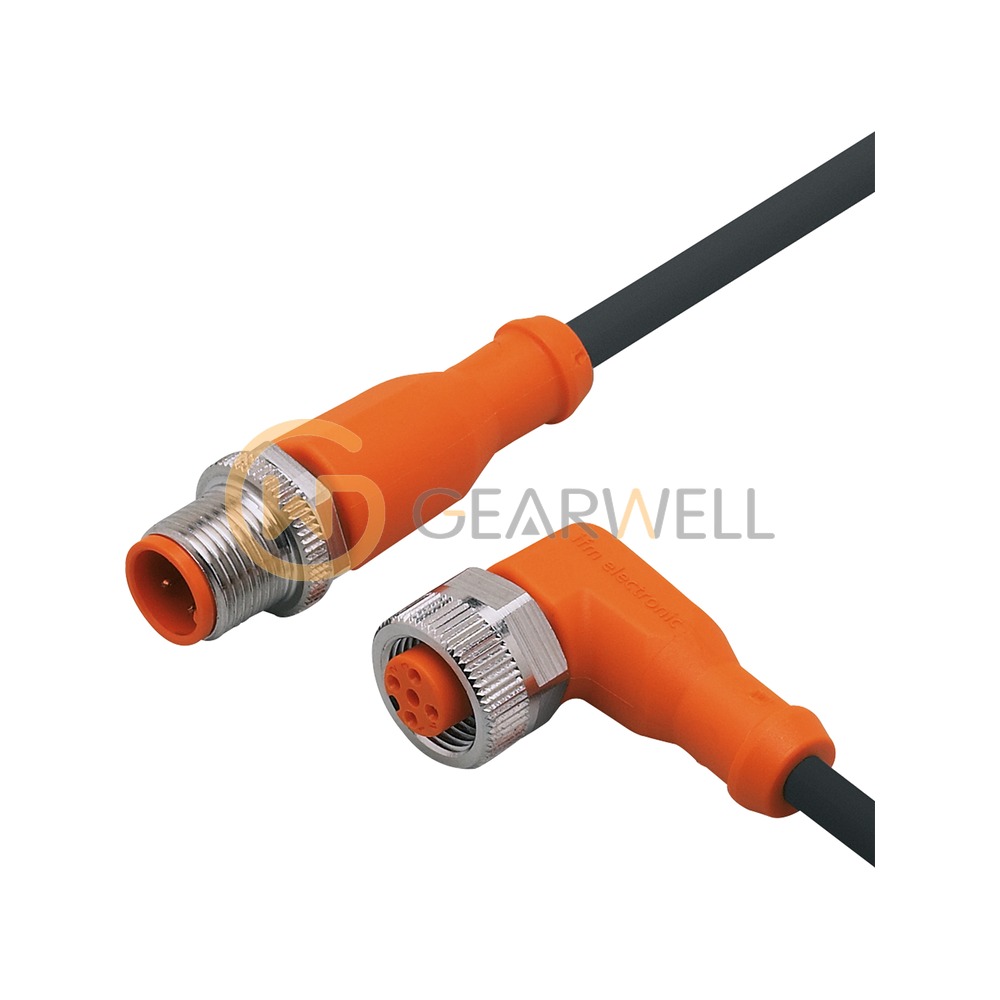

The ifm EVC018 (VDOAH040MSS0002H04STGH040MSS) is an M12 connection cable (A-coded, 4 gold-plated contacts) for industrial applications and use with oils and coolants; it is halogen-free, free from silicone and suitable for drag chains. The 2 m black PUR cable is Ø 4.3 mm with 4 x 0.34 mm² conductors. It is rated for below 250 V AC / below 300 V DC and 4 A in total, has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…90 °C ambient.
Technical reference
| Product name | IFM EVC018 VDOAH040MSS0002H04STGH040MSS Connection Cable |
|---|---|
| Brand | IFM |
| Model | EVC018 |
| Category | Terminals, Cables & Connectors |
| Weight | 88.5 g |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Application | Industrial applications / factory automation; Use in machine tools, coolants and lubricants |
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
| Operating voltage | < 250 AC / < 300 DC V |
| Ambient temperature | -25...90 °C |
