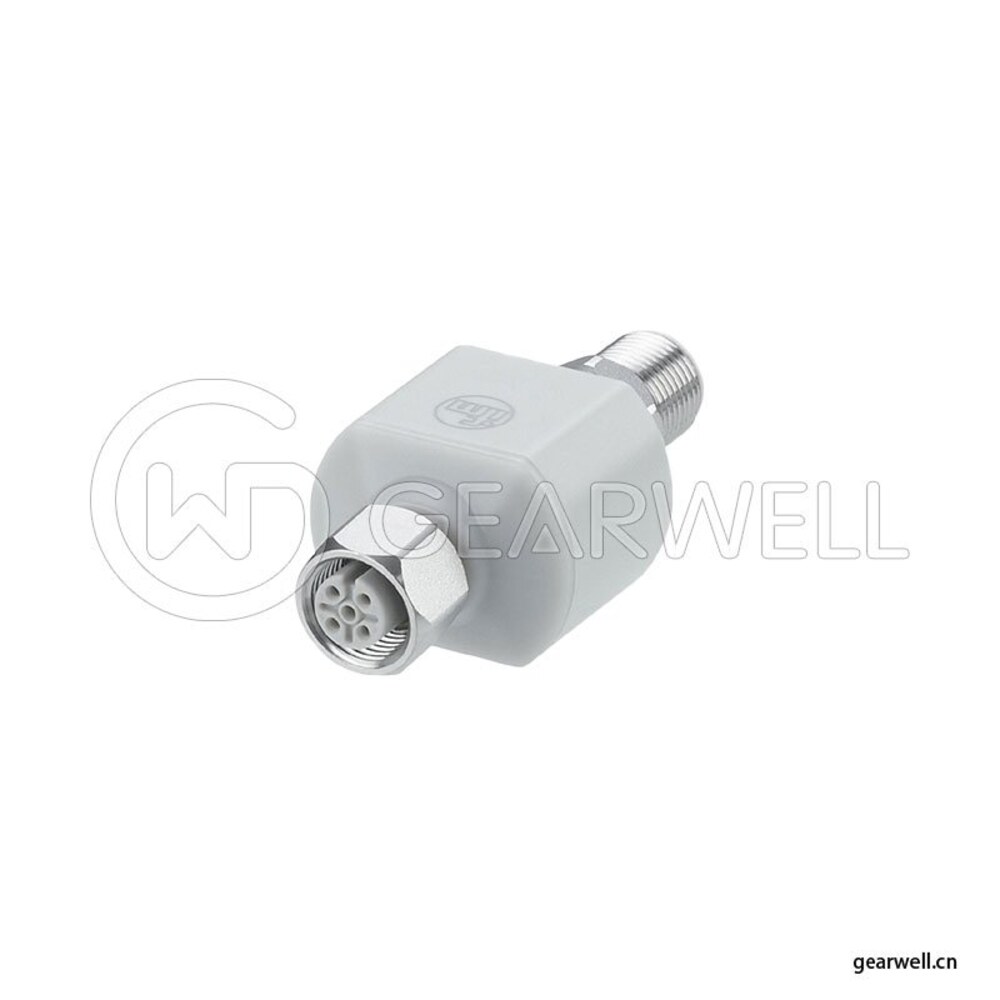

IFM EIO344 Bluetooth mesh IO-Link adapter
- Brand
- IFM
- Model
- EIO344
- GEARWELL SKU
- GWP-000004111
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67; IP 69K
- Product type
- Bluetooth mesh IO-Link adapter
- Output signal
- switching signal; IO-Link
- Output function
- normally open / closed
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EIO344 is a Bluetooth mesh IO-Link adapter for one IO-Link device, transmitting over Bluetooth Low Energy 5.0 in the 2.4 GHz band at 10 mW with a typical range of 20 m. It also has a PNP switching output, configurable as normally open or normally closed, rated at 200 mA, and supports IO-Link revisions 1.0 and 1.1. It runs on 18…30 V DC (24 V nominal), has a PA and stainless steel (1.4404 / 316L) housing, connects through an M12 connector (A-coded, 4 gold-plated contacts) and is rated IP67 and IP69K for -25…60 °C ambient. It has UL approval under file E537924.
Technical reference
| Product name | IFM EIO344 Bluetooth mesh IO-Link adapter |
|---|---|
| Brand | IFM |
| Model | EIO344 |
| Category | Industrial Automation Parts |
| Protection | IP 67; IP 69K |
| Product type | Bluetooth mesh IO-Link adapter |
| Output signal | switching signal; IO-Link |
| Output function | normally open / closed |
| Electrical design | PNP |
| Operating voltage | 18...30 V DC; (limitation due to ES1 and PS2) |
| Current consumption | < 20 mA |
| Communication interface | IO-Link; Bluetooth |
