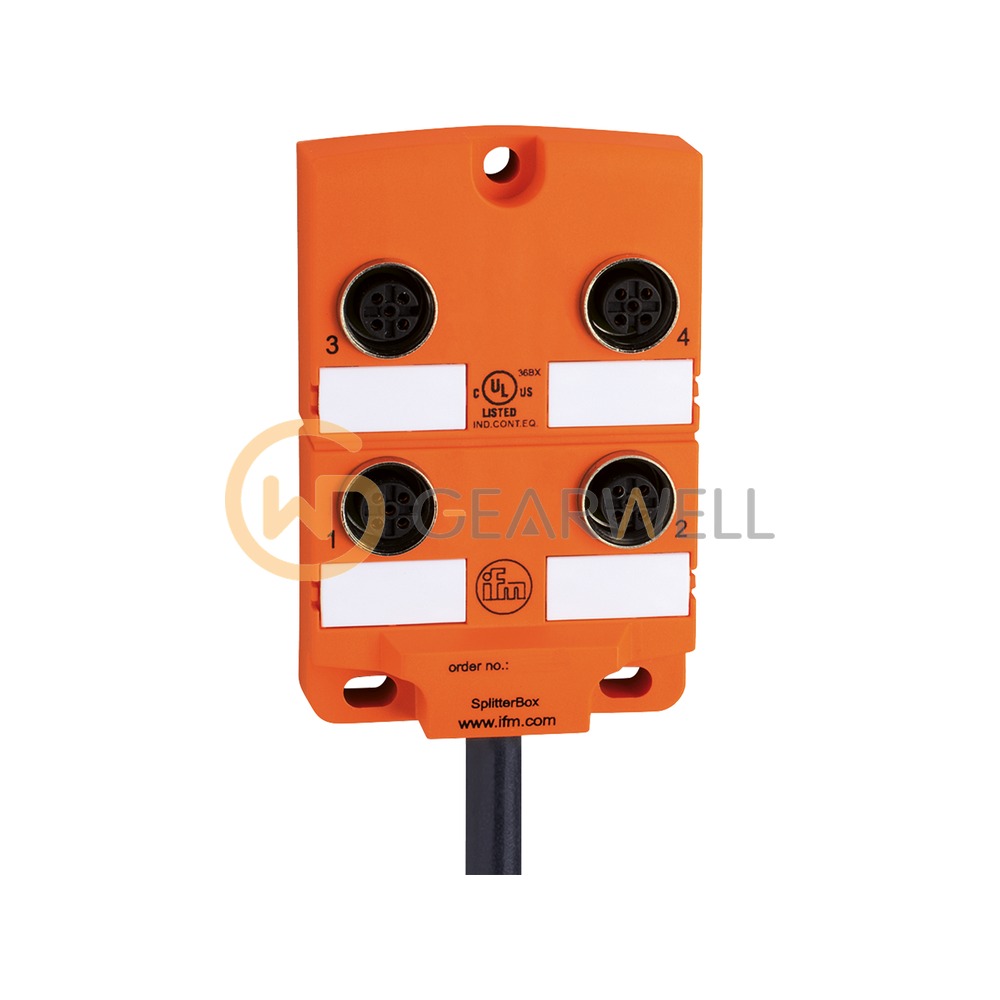

IFM EBC025 Wiring blocks / splitter boxes Wiring block
- Brand
- IFM
- Model
- EBC025
- GEARWELL SKU
- GWP-000012256
- Category
- Terminals, Cables & Connectors
Key specifications
- Cable
- 10 m, PUR, Halogen-free, black, Ø 7.5 mm; 4 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 1 mm² (55 x Ø 0.15 mm )
- Connector
- 4 x M12; coding: A; Contacts: 5, gold-plated; Locking: brass, nickel-plated; Tightening torque: 0.8...1.5 Nm
- Protection
- IP 67; IP 68
- Operating voltage
- < 30 DC; (cULus - Class 2 source required) V
- Ambient temperature
- -25...80 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EBC025 (ZDO4H050MSS0010H07) is a wiring block with four M12 sockets (A-coded, 5 gold-plated contacts) and a 10 m halogen-free PUR home-run cable (Ø 7.5 mm, 4 x 0.34 mm² + 3 x 1 mm²), suitable for drag chains and for oils and coolants. It takes up to 4 A per port and 12 A in total at below 30 V DC (cULus Class 2 source required), has a PA housing measuring 82 x 54 x 22 mm for backplane mounting and is rated IP67 and IP68 for -25…80 °C ambient (-5…60 °C when moving). Two protective caps and four labels are supplied.
Technical reference
| Product name | IFM EBC025 Wiring blocks / splitter boxes Wiring block |
|---|---|
| Brand | IFM |
| Model | EBC025 |
| Category | Terminals, Cables & Connectors |
| Cable | 10 m, PUR, Halogen-free, black, Ø 7.5 mm; 4 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 1 mm² (55 x Ø 0.15 mm ) |
| Connector | 4 x M12; coding: A; Contacts: 5, gold-plated; Locking: brass, nickel-plated; Tightening torque: 0.8...1.5 Nm |
| Protection | IP 67; IP 68 |
| Operating voltage | < 30 DC; (cULus - Class 2 source required) V |
| Ambient temperature | -25...80 °C |
| Max. current load total | 12 A |
| Number of ports splitter box | 4 |
