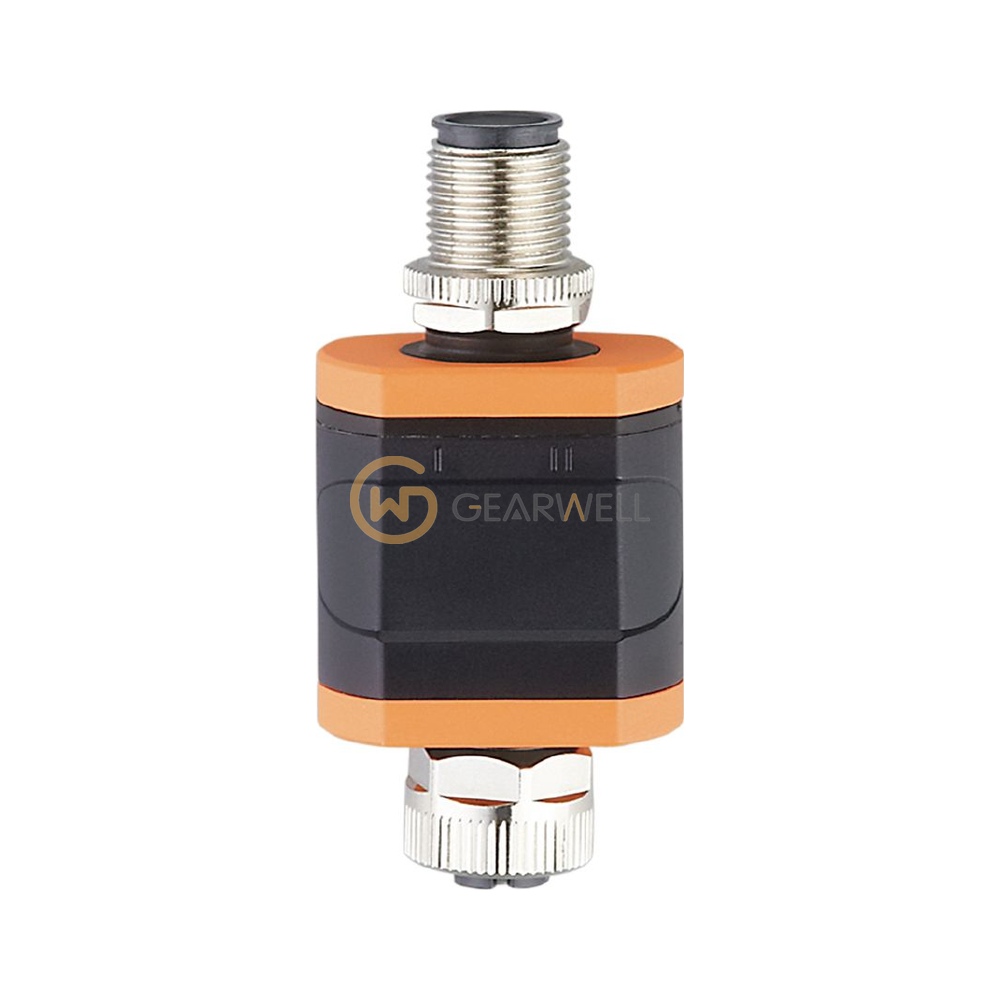

IFM E43410 IO-Link Data Splitter
- Brand
- IFM
- Model
- E43410
- GEARWELL SKU
- GWP-000006753
- Category
- Industrial Communication
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm E43410 (IO-LINK DATA SPLITTER NPN) is an IO-Link data splitter for retrofitting existing IO-Link systems and for systems without IO-Link capability: it connects to an IO-Link master and provides an NPN switching output, configurable as normally open or normally closed and rated at 200 mA, on the controller side. It is an IO-Link 1.1 device (COM2) and requires the Y connection cable EVC843. It runs on 18…30 V DC on the master side and 20…30 V DC on the controller side, has a stainless steel (1.4404 / 316L) and brass housing and is rated IP67 for -25…60 °C ambient. It has UL approval under file E205959.
Technical reference
| Product name | IFM E43410 IO-Link Data Splitter |
|---|---|
| Brand | IFM |
| Model | E43410 |
| Category | Industrial Communication |
