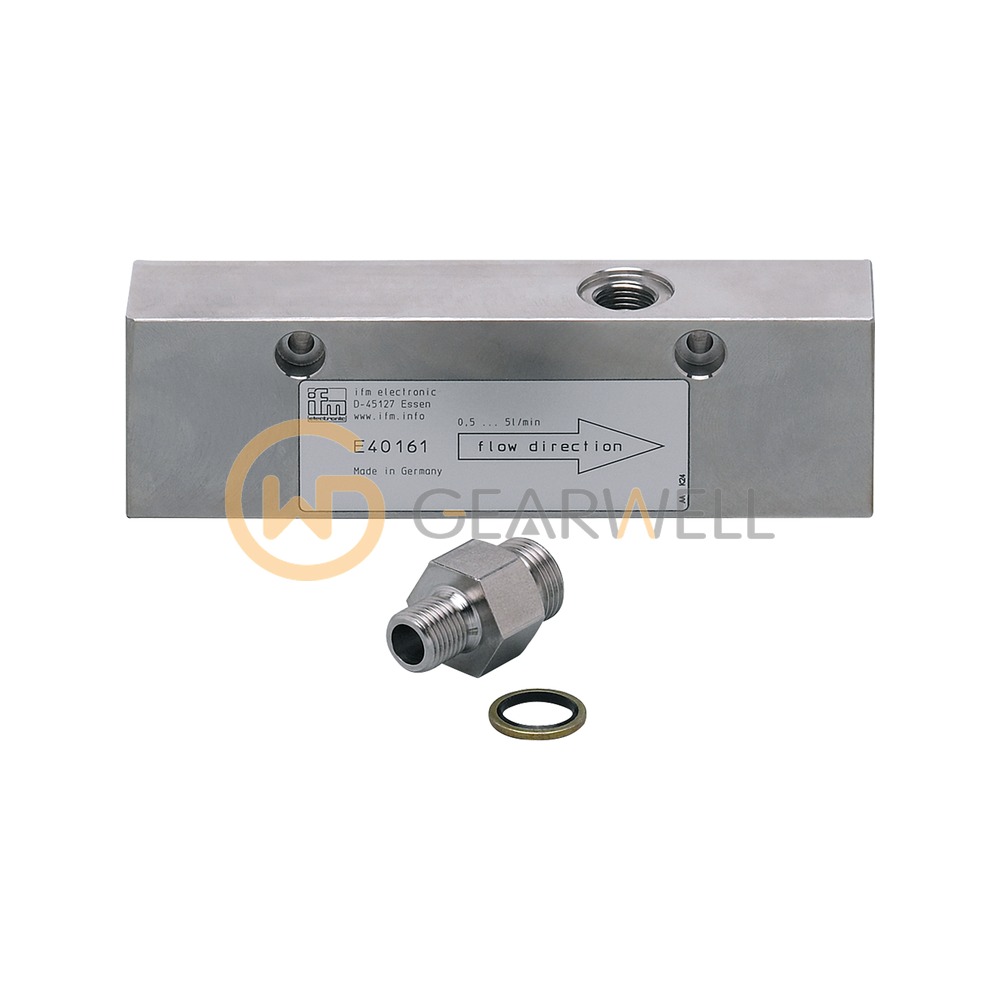

IFM E40161 Process Adapter for Small Volumetric Flow Quantities
- Brand
- IFM
- Model
- E40161
- GEARWELL SKU
- GWP-000008381
- Category
- Pressure, Flow & Temperature
Key specifications
- Media
- liquids and gases
- Design
- for flow sensors SID, SF5
- Weight
- 1514 g
- Materials
- stainless steel (316L/1.4404)
- Flow range
- 0.2...2 ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water) l/min
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm E40161 (ADAPTBLOCK D10 G1/4) is a stainless steel (1.4404 / 316L) process adapter block for measuring small flow quantities with ifm SID and SF5 flow sensors (M18 x 1.5 sensor connection, G 1/4 process connection). ifm gives a flow range of 0.2…2 l/min with SI1xxx and 0.2…3 l/min with SI5xxx sensors (factory setting with water), for liquids and gases, and a pressure rating of 300 bar (30 MPa). It can only be used with the flow sensor's relative operating mode. A G 1/4 BSPP adapter (E40099) and a U-seal are supplied.
Technical reference
| Product name | IFM E40161 Process Adapter for Small Volumetric Flow Quantities |
|---|---|
| Brand | IFM |
| Model | E40161 |
| Category | Pressure, Flow & Temperature |
| Media | liquids and gases |
| Design | for flow sensors SID, SF5 |
| Weight | 1514 g |
| Materials | stainless steel (316L/1.4404) |
| Flow range | 0.2...2 ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water) l/min |
| Application | for industrial applications |
