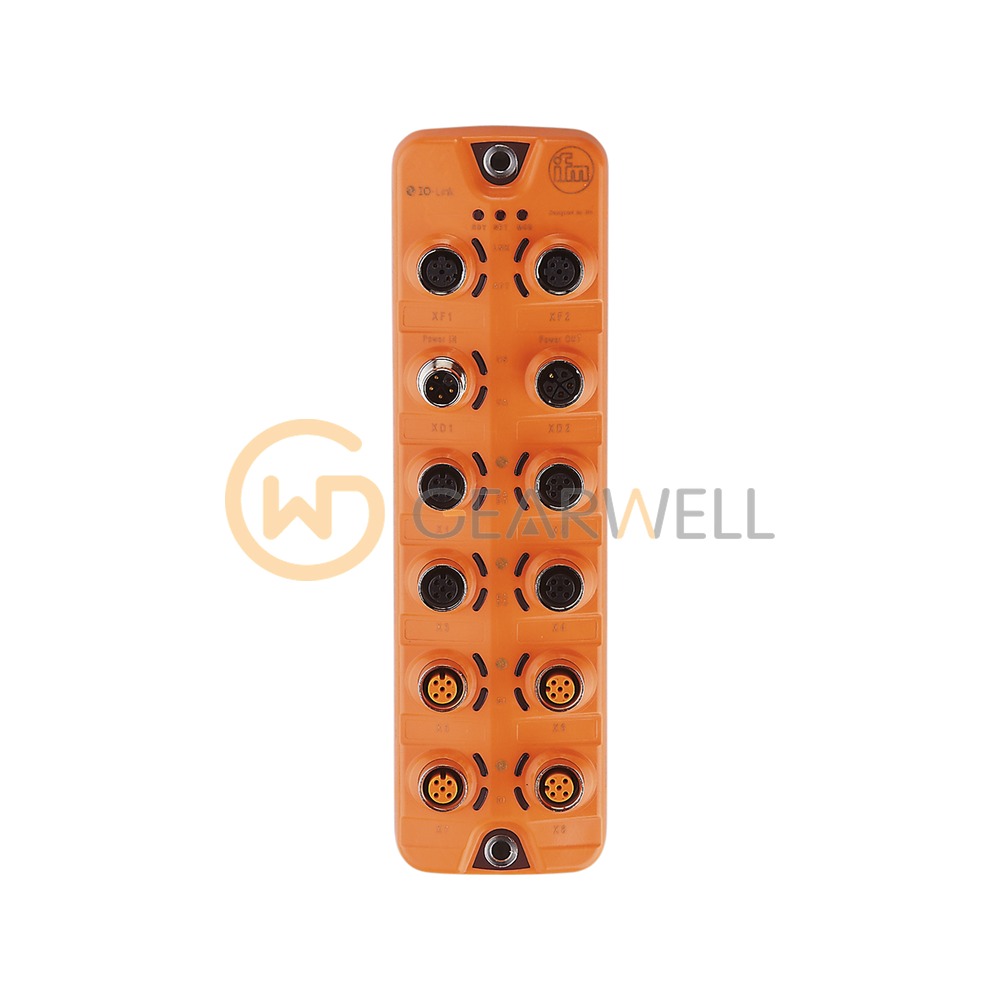

IFM AL1422 IO-Link Master with EtherNet/IP Interface
- Brand
- IFM
- Model
- AL1422
- GEARWELL SKU
- GWP-000008631
- Category
- Industrial Communication
Key specifications
- Dimensions
- 208 x 59.3 x 38.4 mm
- Protection
- IP 65; IP 66; IP 67
- Operating voltage
- 20...30 DC (US ; to PELV) V
- Ambient temperature
- -25...60 °C
- Current consumption
- 300...3900 (US) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL1422 (IO-Link Master PFL EIP 8P IP67) is an IO-Link master with an EtherNet/IP interface and 4 class A and 4 class B IO-Link ports. The Ethernet side supports 10Base-T and 100Base-TX, and the voltage supply and fieldbus interface can be daisy-chained. ifm lists IP addressing by DHCP, BOOTP or static address, DLR (Device Level Ring) and line and ring network topologies. The ports work to IO-Link revision 1.1 with COM1, COM2 and COM3 transmission. They also provide 12 digital inputs and 12 digital outputs, with up to 2000 mA per output and a total current load of up to 8 A. It runs on 20…30 V DC (US), with a separate 20…30 V DC actuator supply (UA). The housing measures 208 x 59.3 x 38.4 mm and is made of orange PA, with nickel-plated brass sockets, for backplane mounting. It is rated IP65, IP66 and IP67, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL1422 IO-Link Master with EtherNet/IP Interface |
|---|---|
| Brand | IFM |
| Model | AL1422 |
| Category | Industrial Communication |
| Dimensions | 208 x 59.3 x 38.4 mm |
| Protection | IP 65; IP 66; IP 67 |
| Operating voltage | 20...30 DC (US ; to PELV) V |
| Ambient temperature | -25...60 °C |
| Current consumption | 300...3900 (US) mA |
| Communication interface | Ethernet; IO-Link |
| Number of digital inputs | 12 (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
| Number of digital outputs | 12 (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2) |
