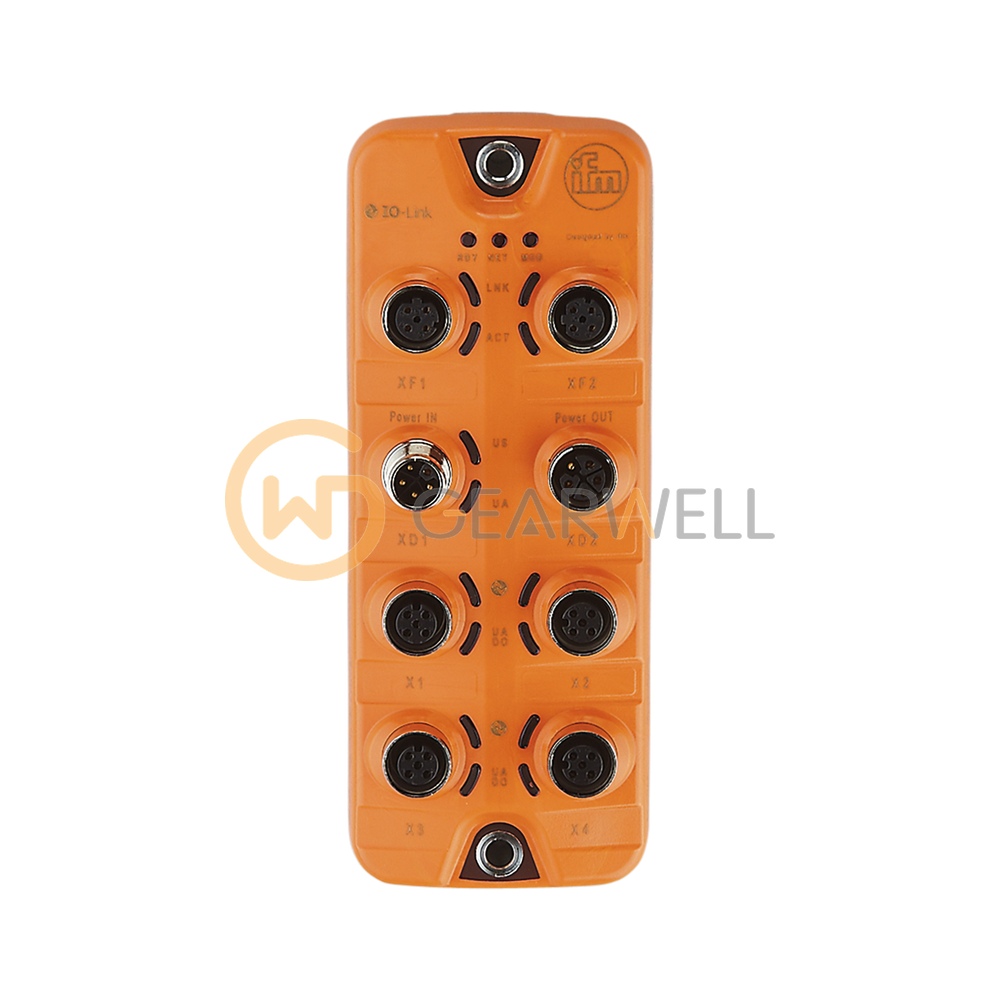

IFM AL1420 Four-port IO-Link master with EtherNet/IP interface

Product overview

The ifm AL1420 (IO-Link Master PFL EIP 4P IP67) is an IO-Link master with an EtherNet/IP interface and 4 class B IO-Link ports. The Ethernet side supports 10Base-T and 100Base-TX, and the voltage supply and fieldbus interface can be daisy-chained. ifm lists IP addressing by DHCP, BOOTP or static address, DLR (Device Level Ring) and line and ring network topologies. The ports work to IO-Link revision 1.1 with COM1, COM2 and COM3 transmission. They also provide 4 digital inputs and 8 digital outputs, with up to 2000 mA per output and a total current load of up to 8 A. It runs on 20…30 V DC (US), with a separate 20…30 V DC actuator supply (UA). The housing measures 152 x 59.3 x 38.4 mm and is made of orange PA, with nickel-plated brass sockets, for backplane mounting. It is rated IP65, IP66 and IP67, for -25…60 °C ambient.
