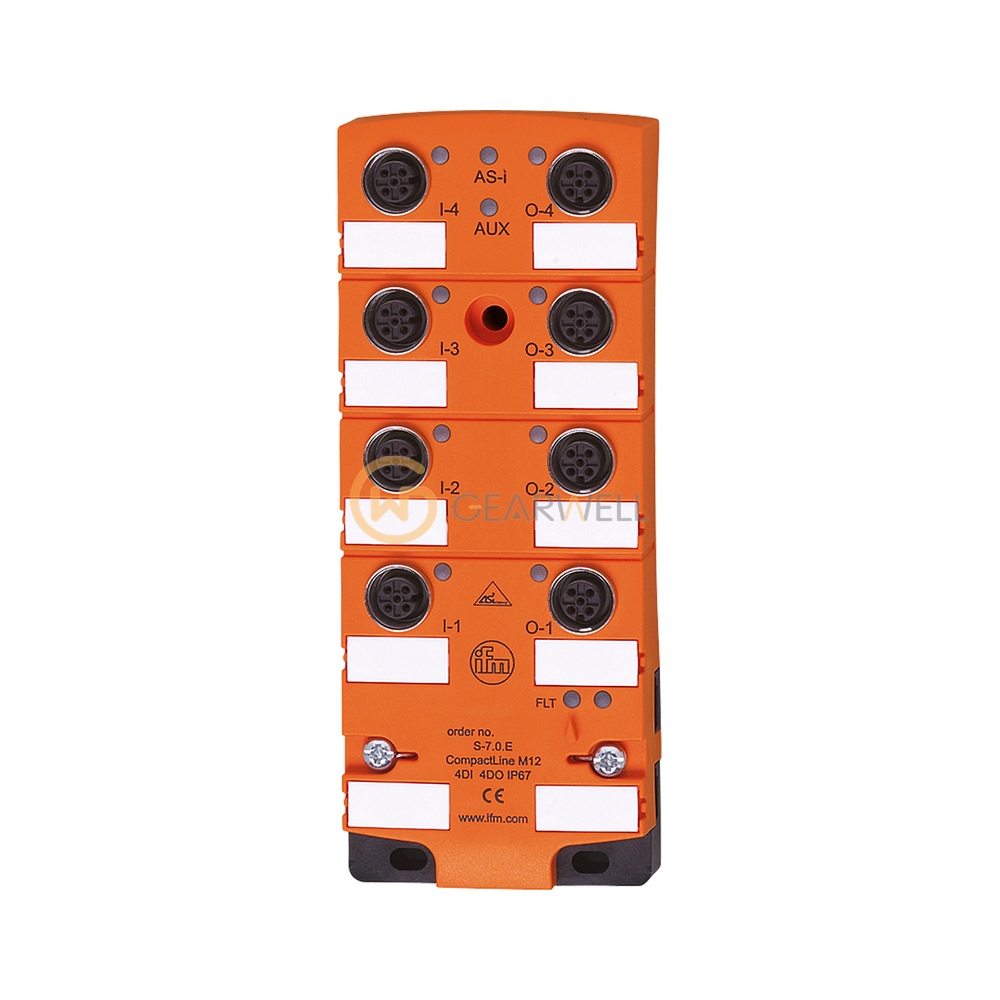

IFM AC2459 AS-Interface CompactLine I/O Module

Product overview

The ifm AC2459 (CompactLM12 4DI-Y 4DO T) is an AS-Interface CompactLine module for field installation. It has four digital inputs and four digital outputs, with PNP inputs (type 2 to IEC 61131-2) powered from AS-i. The PNP outputs carry up to 2000 mA each and 4 A in total, with an output supply of 10…30 V DC. On the AS-i side it supports AS-i versions 2.11 and 3.0 with slave profile S-7.F.E, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 250 mA, with an AUX supply of 10…30 V DC. The housing measures 152 x 60 x 27 mm and is made of PA. It mounts on a backplane with an AS-i flat cable connection, has four M12 sockets (A-coded, 3-pin) and is rated IP67 with flat cables E7400x / E7401x for -25…80 °C ambient.
