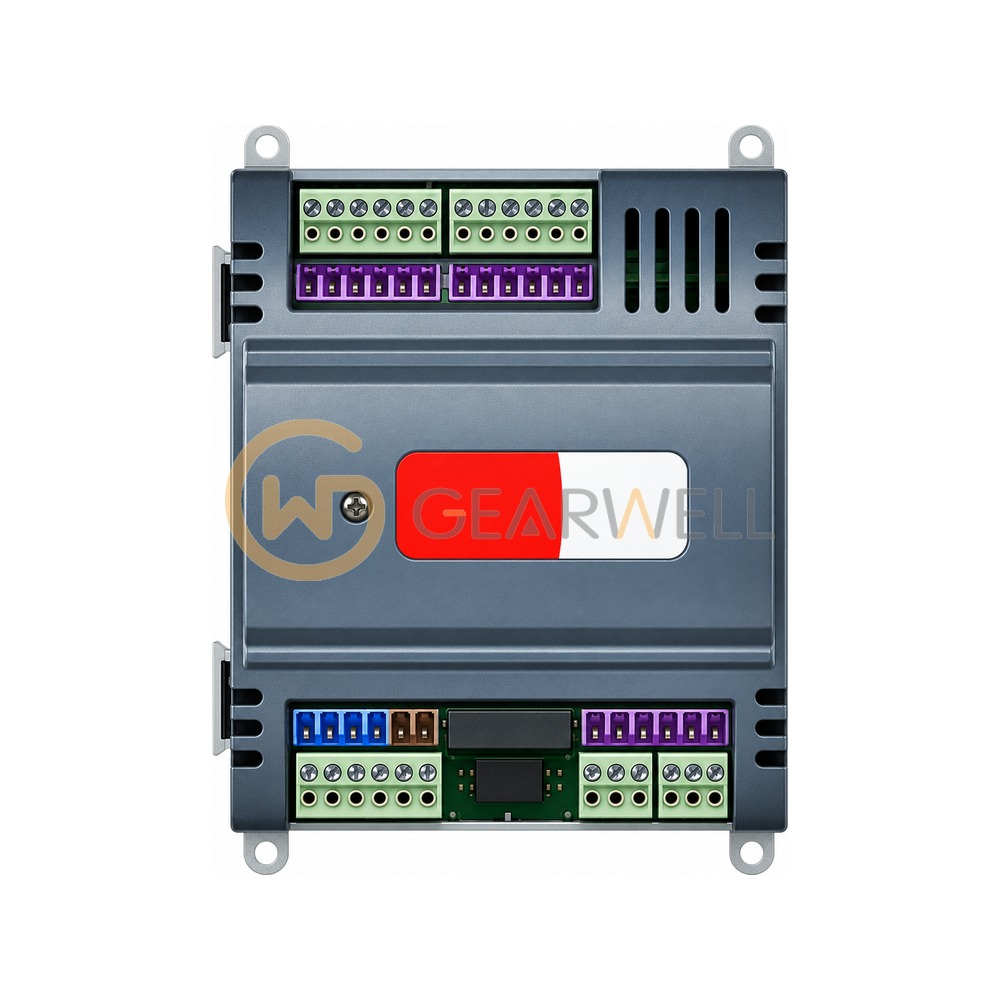

Honeywell SIO4022 Sylk I/O Spyder Expansion I/O Module
- Brand
- HONEYWELL
- Model
- SIO4022
- GEARWELL SKU
- GWP-000015313
- Category
- PLCs & I/O
Key specifications
- Bus
- Sylk bus (2-wire, polarity insensitive)
- I/O
- 4 UI, 0 DI, 2 AO, 2 DO (triac)
- Supply
- 20-30 Vac, 50/60 Hz
- Mounting
- Panel or DIN rail (EN50022)
- Device load
- 4 VA max (excluding triac outputs)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Honeywell SIO4022 Sylk I/O Spyder Expansion I/O Module |
|---|---|
| Brand | HONEYWELL |
| Model | SIO4022 |
| Category | PLCs & I/O |
| Bus | Sylk bus (2-wire, polarity insensitive) |
| I/O | 4 UI, 0 DI, 2 AO, 2 DO (triac) |
| Supply | 20-30 Vac, 50/60 Hz |
| Mounting | Panel or DIN rail (EN50022) |
| Device load | 4 VA max (excluding triac outputs) |
| Analog outputs | 4-20 mA or 0-10 Vdc, individually selectable |
| Digital outputs | Triac, 20-30 Vac, 25-500 mA continuous |
| Operating temperature | -40 to 65.5 °C |
