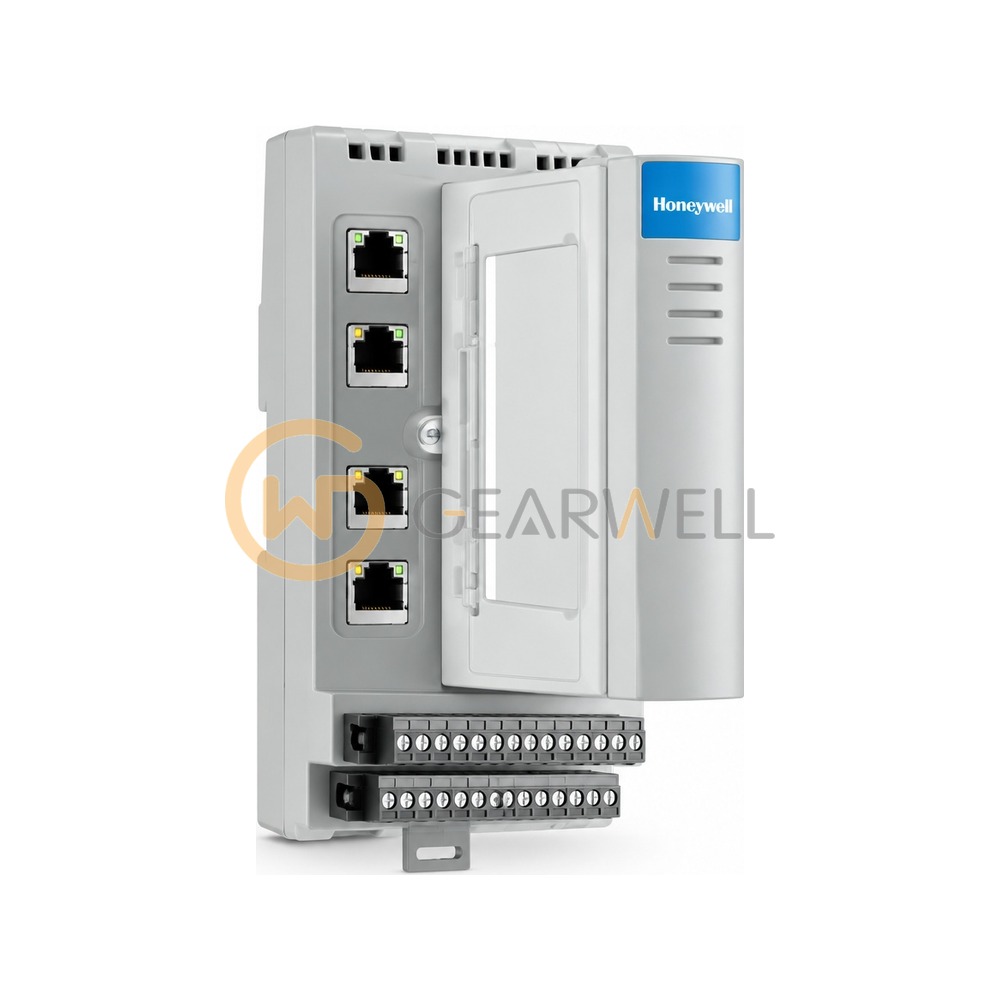

HONEYWELL SC-UCMX02 ControlEdge RTU Controller, 28 Mixed I/O
- Brand
- HONEYWELL
- Model
- SC-UCMX02
- GEARWELL SKU
- GWP-000026286
- Category
- PLCs & I/O
Key specifications
- Weight
- 700 g
- Evidence
- Honeywell ControlEdge RTU Specification SC03-300-174 (prod-edam.honeywell.com); Honeywell System HINTS Nov 2020
- Processor
- Dual Core ARM Cortex-A9 (32 bit) 667 MHz
- Description
- Non-redundant Controller with 28 mixed onboard I/O with 256MB DRAM (CPM and IOTA)
- Seller code
- HONEYWELL SC-UCMX02 RTU2020
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL SC-UCMX02 ControlEdge RTU Controller, 28 Mixed I/O |
|---|---|
| Brand | HONEYWELL |
| Model | SC-UCMX02 |
| Category | PLCs & I/O |
| Weight | 700 g |
| Evidence | Honeywell ControlEdge RTU Specification SC03-300-174 (prod-edam.honeywell.com); Honeywell System HINTS Nov 2020 |
| Processor | Dual Core ARM Cortex-A9 (32 bit) 667 MHz |
| Description | Non-redundant Controller with 28 mixed onboard I/O with 256MB DRAM (CPM and IOTA) |
| Seller code | HONEYWELL SC-UCMX02 RTU2020 |
| Input voltage | 24 V DC ± 25% (18 to 30 V DC) |
| Lifecycle note | Introduced in R160; direct replacement for SC-UCMX01 |
| Power consumption | 1.7 W min. / 2.9 W max. without expansion IOMs |
| Dynamic memory (RAM) | 256 MB |
| Dimensions (L x W x H) | 190 x 99 x 141 mm |
| Program memory (Flash) | 256 MB |
| Operating temperature | -40 to 75 (storage -40 to 85) °C |
