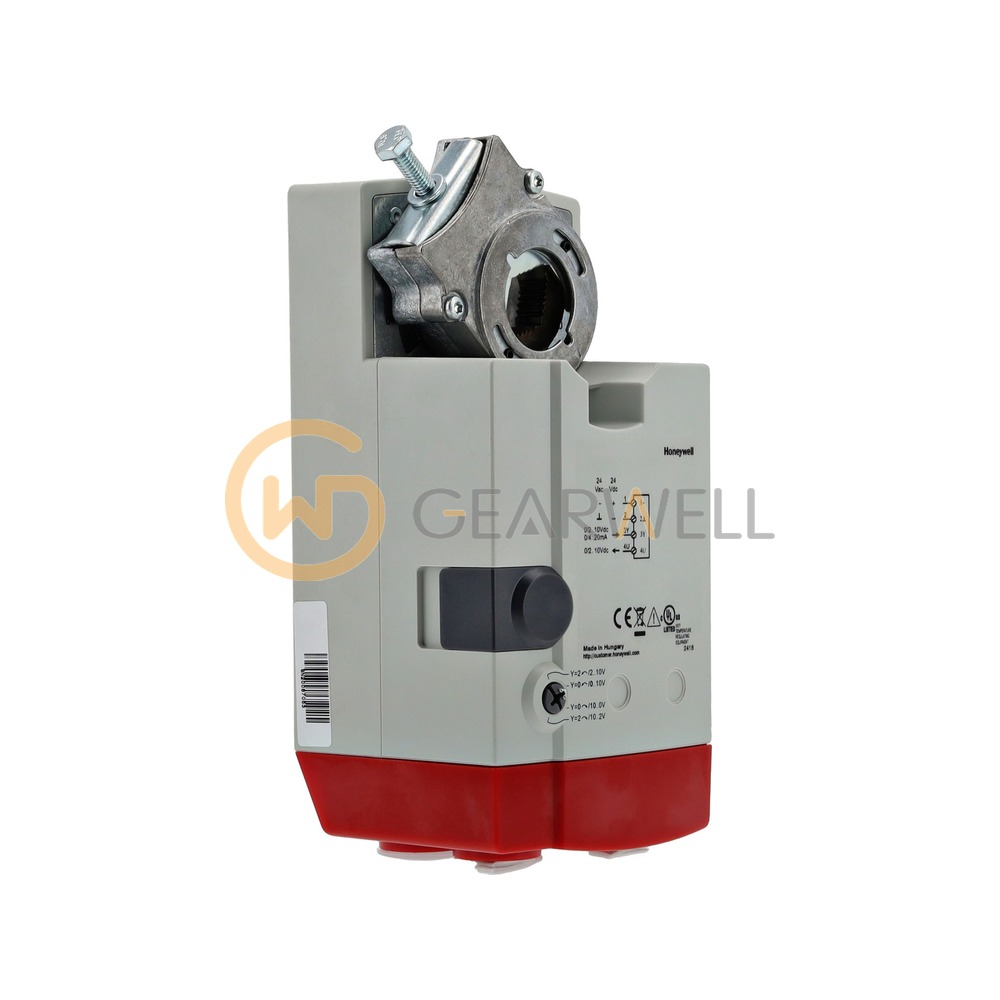

HONEYWELL MN7234A2008 MNxx34 Non-Spring Return Damper Actuator
- Brand
- HONEYWELL
- Model
- MN7234A2008
- GEARWELL SKU
- GWP-000017437
- Category
- Cylinders & Actuators
Key specifications
- Torque
- 300 lb-in (34 Nm)
- Weight
- 1.45 kg
- Evidence
- Honeywell MNxx20/MNxx34 product page (buildings.honeywell.com, model image MN7234A2008); specs: Distributor only: Kele MN Series catalog page (Sept 2016)
- Feedback
- 0/2-10 VDC
- Rotation
- 95° ± 3°
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL MN7234A2008 MNxx34 Non-Spring Return Damper Actuator |
|---|---|
| Brand | HONEYWELL |
| Model | MN7234A2008 |
| Category | Cylinders & Actuators |
| Torque | 300 lb-in (34 Nm) |
| Weight | 1.45 kg |
| Evidence | Honeywell MNxx20/MNxx34 product page (buildings.honeywell.com, model image MN7234A2008); specs: Distributor only: Kele MN Series catalog page (Sept 2016) |
| Feedback | 0/2-10 VDC |
| Rotation | 95° ± 3° |
| Drive time | 95 s |
| Control signal | Proportional 0/2-10 VDC, 0/4-20 mA |
| Supply voltage | 21-27 VAC 50/60 Hz, 24 VDC |
| Enclosure rating | NEMA 2 (IP54) |
| Power consumption | 8.0 VA |
