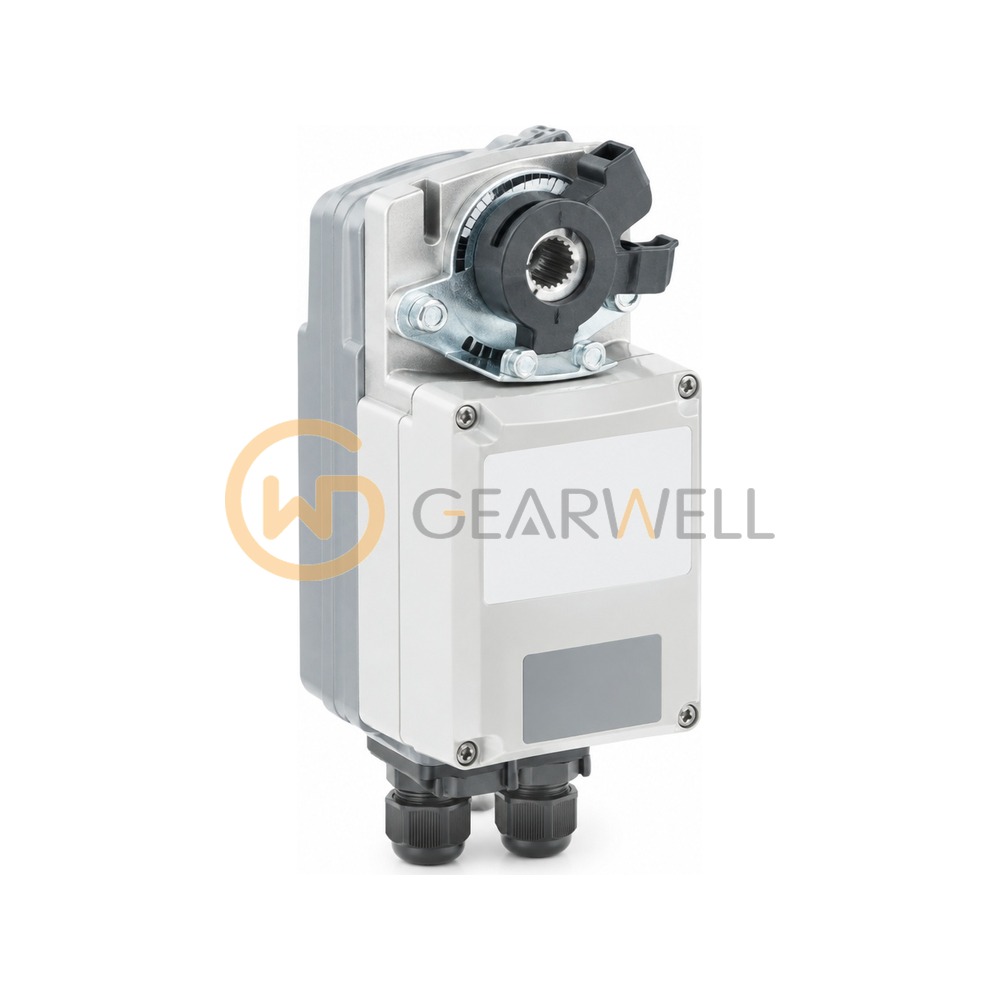

HONEYWELL N1024 SmartAct Non-Spring Return Damper Actuator 10 Nm
- Brand
- HONEYWELL
- Model
- N1024
- GEARWELL SKU
- GWP-000036661
- Category
- Cylinders & Actuators
Key specifications
- Torque
- 10 Nm
- Weight
- 450 g
- Protection
- IP54, class II
- Damper area
- up to 2 m2
- Damper shaft
- round 8...16 mm, square 6...13 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL N1024 SmartAct Non-Spring Return Damper Actuator 10 Nm |
|---|---|
| Brand | HONEYWELL |
| Model | N1024 |
| Category | Cylinders & Actuators |
| Torque | 10 Nm |
| Weight | 450 g |
| Protection | IP54, class II |
| Damper area | up to 2 m2 |
| Damper shaft | round 8...16 mm, square 6...13 mm |
| Control signal | Floating + 2-position |
| Supply voltage | 24 V AC/DC -15%/+20%, 50/60 Hz |
| Power consumption | 5 VA / 2 W |
| Runtime for 90 deg | 90 (DC / 60 Hz), 110 (50 Hz) s |
| Ambient operating limits | -20 ... +60 C |
